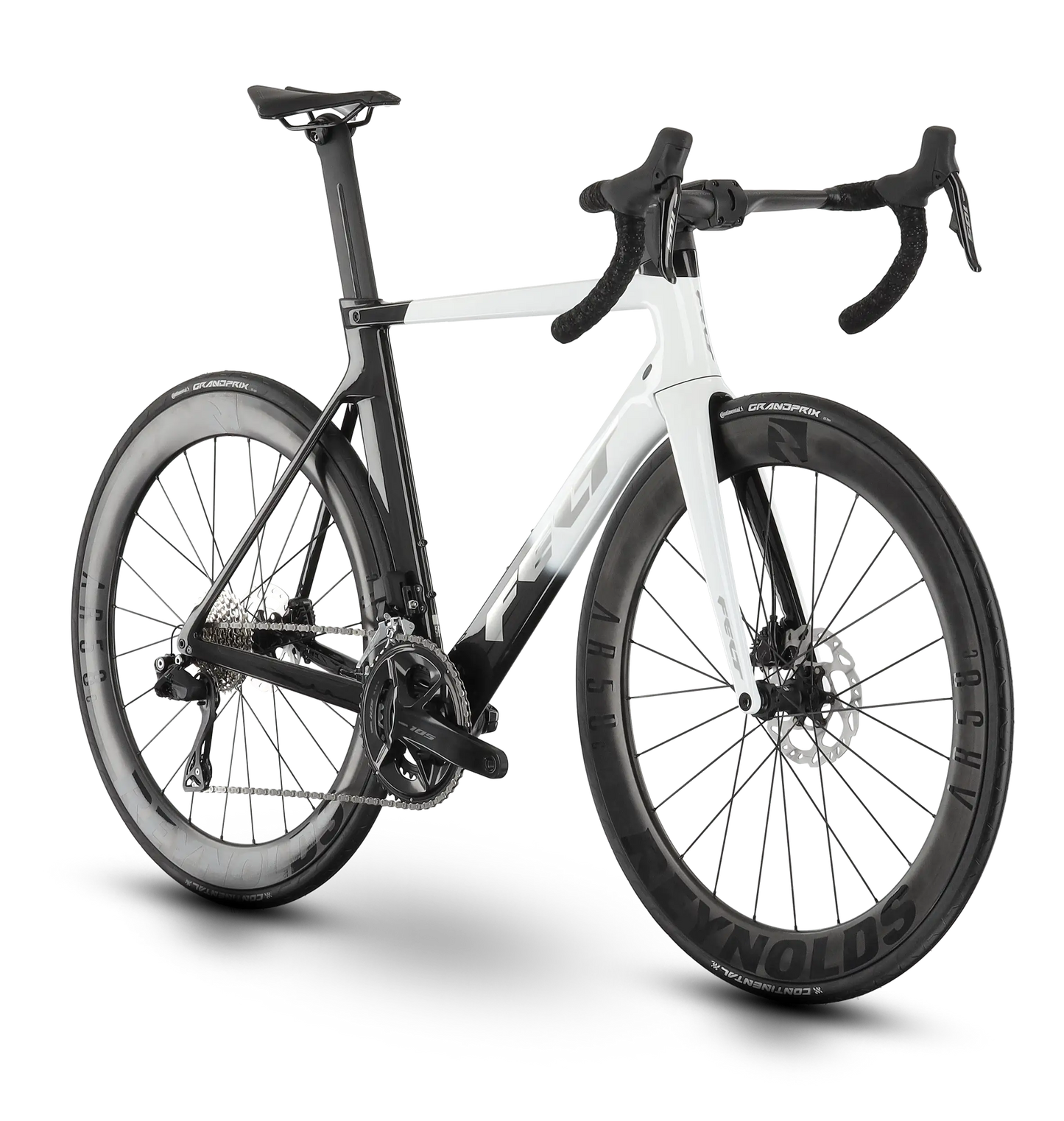

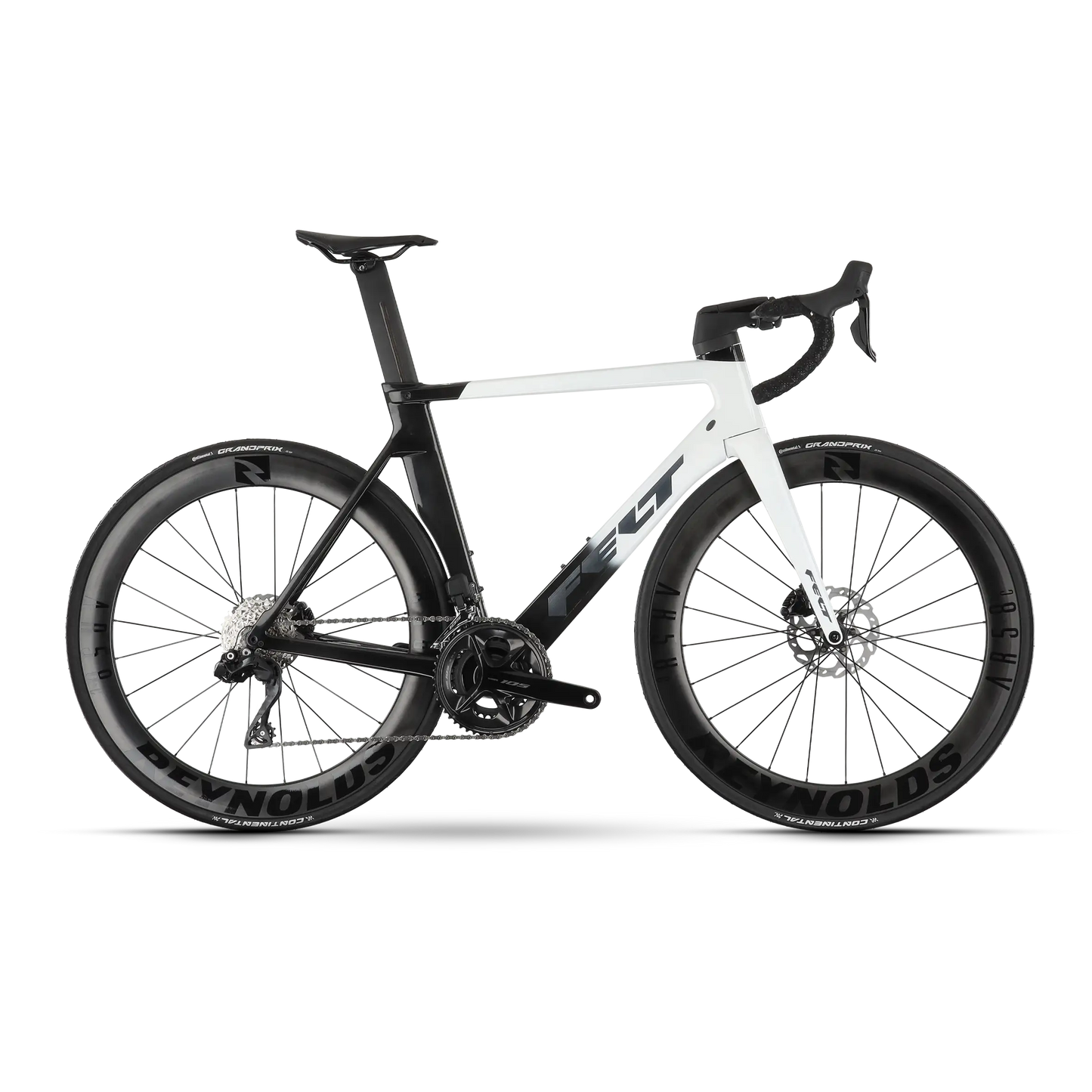

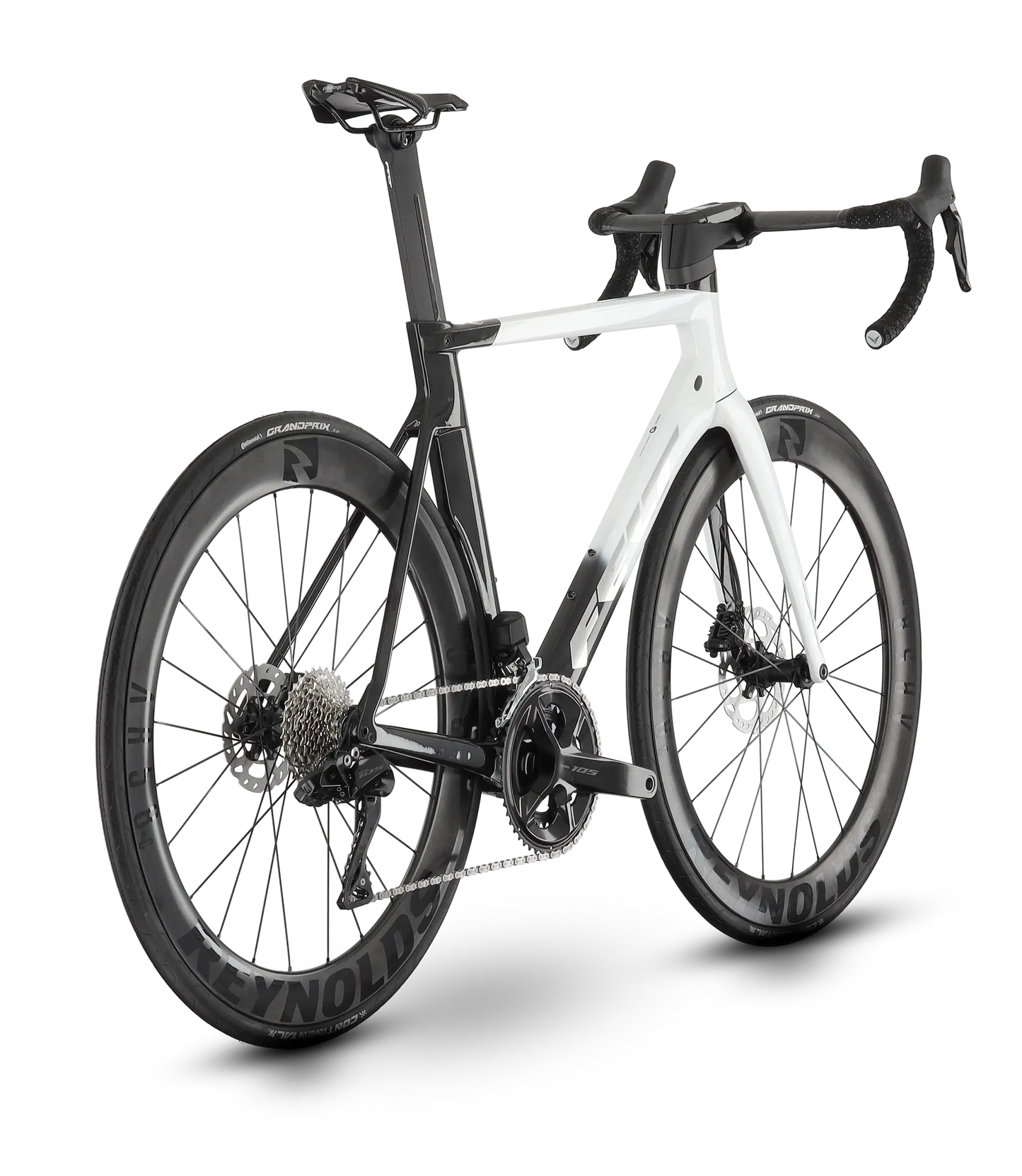

AR Advanced | 105 Di2 (White)

AR Advanced | 105 Di2 (White)

FB94024012-48

$8,495
$8,495
Sale Sold out
Included: GST, and shipping to Click & Collect locations.

Our aero frame platform paired with Shimano's new 105 Di2 for a more affordable race machine fully capable of mixing it up at your local crit or race circuit.

Select size

Select your nearest Click & Collect store

$8,495
$8,495
Sale Sold out
Included: GST, and shipping to Click & Collect locations.

Complimentary Professional Build

Every Felt bike will be fully assembled and safety-checked by a qualified mechanic before you collect it.

Covered by Felt’s Warranty

Join thousands of riders who trust Felt. If there’s a defect in materials or workmanship, we’ll make it right.
See warranty details →

View full details

RACE-WORTHY SPEED WITH A MORE ACCESSIBLE BUILD

An aero race bike is an exceptional addition to a performance-oriented rider's stable. For hard training efforts and your Strava segment hunting, you've got a perfect solo-effort rig. For race day, the AR provides the platform that'll deliver glory. Paired with Shimano's 105 Di2 groupset, this latest model version set for speed.

  • SHIMANO'S NEW 105 DI2

    The 105 Di2 groupset is an impressive new arrival in Shimano's line-up. Featuring a 12-speed drivetrain and Shimano's well-regarded shifting and ergonomics, this is a performance-minded component group ready to take flight.

  • WHEELS DESIGNED FOR SPEED

    We pair the AR 105 Di2 with a lively set of Reynolds AR58 DB Custom wheels and Continental Grand Prix SL tyres. Snappy, aero, and comfortable even on some chattering tarmac, you can confidently steer the course and let your sprint rip.

  • COCKPIT SET-UP

    Like all AR models, the Advanced | 105 Di2 provides a semi-integrated cockpit to enable the fine-tuning precision of each individual's bike position. We keep the front end clean and tidy but ensure ease of adjustment and maintenance for the rider.

1 3

SPECIFICATIONS

Frameset

Frame

Felt AR 3.0, UHC Advanced + TeXtreme carbon

Fork

Felt AR 3.0, UHC Ultimate + TeXtreme carbon

Brakes & Drivetrain

Front Brake

Shimano BR-R7170, 2-piston, Hydraulic disc brake

Front Brake Rotor

Shimano SM-RT70, 160 mm, Center lock

Rear Brake

Shimano BR-R7170, 2-piston, Hydraulic disc brake

Rear Brake Rotor

Shimano SM-RT70, 140 mm, Center lock

Rear Derailleur

Shimano 105 Di2, RD-R7150, 24-S

Front Derailleur

Shimano 105 Di2, FD-R7150

Cassette

Shimano 105 CS-R7100, 11-30 T

Chain

Shimano CN-M7100

Crankset

Shimano 105, FC-R7100, 50/34 T

Shift Lever

Shimano 105 Di2, ST-R7170

Wheels

Wheelset

Reynolds AR58 DB Custom, Tubeless ready, Center lock, 12x100/12x142 mm

Tyre

Continental Grand Prix SL, 700x25

Cockpit

Stem

Felt Sprint, -6 °

Headset

IS (NO.44)

Handlebar

48, 51 cm: Devox DBar.C0 Aero 31.8 mm, 400 mm, 54, 56, 58, 61 cm: Devox DBar.C0 Aero 31.8 mm, 420 mm

Bar Tape

Felt VelvetGel tape with 3M reflective base and Felt Bubble-Tech F-Wing bar end plugs

Saddle

Prologo Dimension 143 T4.0

Seat Post

Felt AeroRoad IL 2.0, 350 mm

Additional Information

Permissible Total Weight

129 kg

Trailer Approval

No trailer approval

GEOMETRY

AR chart
48 51 54 56 58 61
(A) Top Tube Length 509 mm 529 mm 543 mm 560 mm 580 mm 605 mm
(B) Seat Tube Length 441 mm 473 mm 502.5 mm 526 mm 553 mm 601 mm
(C) Seat Tube Angle 74.3° 74.4° 73.5° 73.5° 73.5° 73°
(D) Head Tube Length 97 mm 111 mm 130 mm 150 mm 167 mm 197.5 mm
(E) Steering Angle 71° 72.1° 73° 73.5° 73.5° 73°
(F) Chain Stay Length 408 mm 408 mm 410 mm 410 mm 410 mm 412 mm
(G) Wheel Base 974 mm 977 mm 980 mm 988 mm 1003 mm 1024 mm
(H) Standover Height 705 mm 734 mm 760 mm 780 mm 807 mm 845 mm
(I) BB-Drop 72 mm 70 mm 70 mm 70 mm 70 mm 70 mm
(K) Fork Offset 52 mm 47 mm 47 mm 43 mm 43 mm 43 mm
(L) Stack 501 mm 518 mm 539 mm 561 mm 579 mm 608 mm
(M) Reach 370 mm 381 mm 383 mm 394 mm 408 mm 419 mm
(N) Stem Length 90 mm 90 mm 100 mm 100 mm 110 mm 120 mm
(O) Crank Length 165 mm 170 mm 172.5 mm 172.5 mm 175 mm 175 mm

SIZE GUIDE

43 45 47 48 51 54 56 58 61
Rider Height 144.7 - 152.4 cm 144.7 - 152.4 cm 152.4 - 167.6 cm 152.4 - 167.6 cm 167.6 - 172.7 cm 172.7 - 177.8 cm 177.8 - 182.8 cm 182.8 - 187.9 cm 187.9 - 195.5 cm
Rider Inseam 67.3 - 71.2 cm 67.3 - 71.2 cm 71.2 - 74.9 cm 71.2 - 74.9 cm 75.1 - 76.2 cm 77.9 - 82.0 cm 81.0 - 85.0 cm 84.0 - 87.1 cm 87.3 - 91.1 cm
