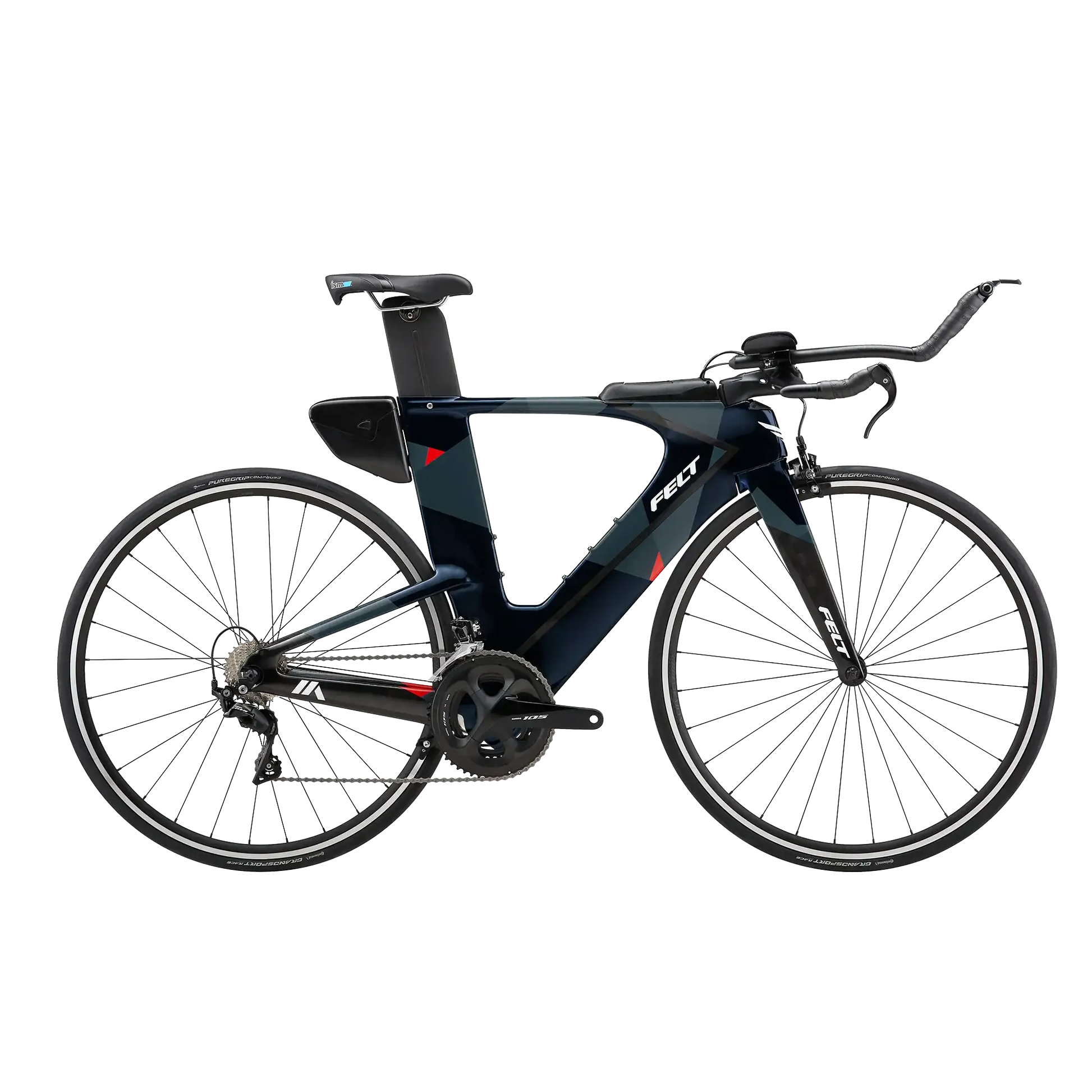

IA Advanced | 105 RimBrake (Midnight)

IA Advanced | 105 RimBrake (Midnight)

FB4050-48

$5,995
$5,995
Sale Sold out
Included: GST, and shipping to Click & Collect locations.

Want the most aerodynamically efficient carbon frame around, but prefer the classic feel of rim brakes? This is the race bike for you.

Select size

Select your nearest Click & Collect store

$5,995
$5,995
Sale Sold out
Included: GST, and shipping to Click & Collect locations.

Complimentary Professional Build

Every Felt bike will be fully assembled and safety-checked by a qualified mechanic before you collect it.

Covered by Felt’s Warranty

Join thousands of riders who trust Felt. If there’s a defect in materials or workmanship, we’ll make it right.
See warranty details →

View full details

SPECIFICATIONS

Frameset

Frame

Felt IntegratedAero x | UHC Advanced + TeXtreme carbon fiber with MMC / InsideOut tech, Threaded | BSA 68mm, bottom bracket, Felt Aero | 1.125" / head tube, Internal | convertible for electronic or mechanical routing, with Felt AeroTRI InternaLoc 1.0 | integrated with titanium bolts

Fork

Felt IntegratedAero x | UHC Advanced + TeXtreme carbon fiber with Monocoque construction / Integrated crown race tech, Rim, Standard Mount. Fork offset: 48, 51cm: 50mm / 54, 56, 58cm: 45mm

Frame Protection

Steerer stop integration for head tube protection / Felt ChainPlate for chain suck protection / Clear vinyl for chain slap protection

Brakes & Drivetrain

Shifting

2x11-speed, microSHIFT A11, TRI/TT

Rear Derailleur

Shimano 105 R7000, short cage

Front Derailleur

Shimano 105 R7000, braze-on

Bottom Bracket

Shimano RS500

Cassette

Shimano 105 R7000, 11-28T

Chain

Shimano 105 HG601

Crankset

Shimano 105 R7000, 52/36T, 48, 51cm: 165mm / 54, 56cm: 170mm / 58cm: 172.5mm /

Wheels

Wheelset

Devox WheelRRS.A1 with Shimano hubs | 24/19, Aluminum. Tubeless Compatible

Tyre

Continental Grand Sport Race, 700x25c

Axles

Front: QR 100 - | Rear: QR 130, horizontal with integrated adjusters -

Max Tyre Clearance

28mm (4mm)

Cockpit

Stem

Felt Dagger 31.8 | Lite aluminium, 31.8mm DIAM, -6°, 110mm, Integrated / Integrated top cap / Integrated headset top cover / Integrated cable routing

Headset

IS (IS-2) Top Cap: stem integrated / Top Cover: stem integrated / Top Cover (standard stem): Felt integrated aluminium / Bearings: FSA integrated sealed cartridge, MR122 / Spacers: - / Compression Device: Felt for carbon steerer tube / Compression Ring: FSA H2145 / Crown Race: fork integrated

Handlebar

BaseBar: Devox Bayonet 3.1 | SuperLite aluminium / Extensions: Devox Ergomod | aluminium, 31.8mmØ, 48, 51cm: 39cm / 54, 56, 58cm: 42cm width

Bar Tape

Felt EVA arm pads with anti-microbial cover and Felt Gel tape

Saddle

ISM PS1.1

Seat Post

Felt AeroTRI IL 1.0 VM | UHC Advanced carbon fiber, 0mm offset, 300mm

Seat Post Parts & Tech

Integrated / Compliance Channels with aero covers / AeroTRI InternaLoc 1.0 seatpost clamping system / Patented VariMount (VM) saddle rail clamping system

Additional Information

Extras

IA CALpac 2.0 Top Tube storage / IA BTSpac Seat Tube storage box / Compliance Channel aero seatpost covers / Carbon assembly paste

GEOMETRY

IA chart
48 51 54 56 58
(A) Head Tube Angle 71.5° 71.5° 72° 72° 72°
(B) Seat Tube Angle 79.5° 79° 78.5° 78° 77.5°
(C) Top Tube Length 468 mm 486 mm 510 mm 541 mm 573 mm
(D) Head Tube Length 67.5 mm 96 mm 111 mm 136 mm 163 mm
(E) Seat Tube Length 496 mm 525 mm 546 mm 571 mm 598 mm
(F) Standover Height 744 mm 776 mm 790 mm 819 mm 840 mm
(G) Bottom Bracket Drop 72 mm 72 mm 72 mm 72 mm 72 mm
(H) Rear Center 408.5 mm 408.5 mm 408.5 mm 408.5 mm 408.5 mm
(I) Front Center 572 mm 589 mm 602 mm 630 mm 659 mm
(J) Wheelbase 969.5 mm 986.5 mm 999.5 mm 1028.5 mm 1057.5 mm
(K) Fork Length 376 mm 376 mm 376 mm 376 mm 376 mm
(L) Fork Offset 50 mm 50 mm 45 mm 45 mm 45 mm
(M) Stack 473 mm 501 mm 520 mm 544 mm 569 mm
(N) Reach 381 mm 389 mm 405 mm 426 mm 447 mm

SIZE GUIDE

47 48 51 54 56 58
Rider Height 152.4 - 167.6 cm 152.4 - 167.6 cm 167.6 - 172.7 cm 172.7 - 180.3 cm 180.3 - 187.9 cm 187.9 - 195.5 cm
Rider Inseam 70.8 - 74.4 cm 70.8 - 74.4 cm 74.4 - 77.9 cm 77.9 - 83.0 cm 83.0 - 85.8 cm 85.8 - 88.9 cm
