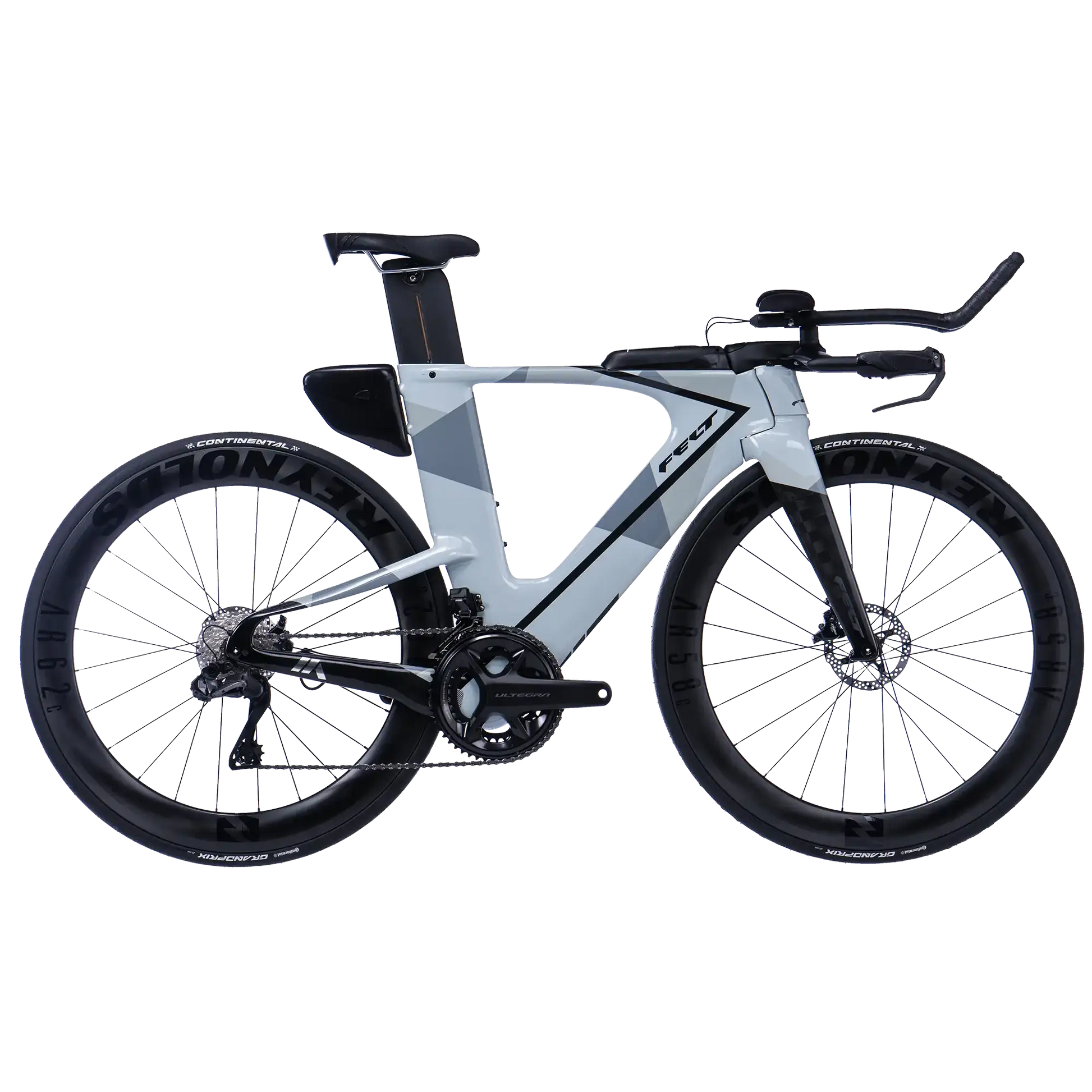

Size Guide: IA Advanced | Ultegra Di2 (Surfmist)
| 47 | 48 | 51 | 54 | 56 | 58 | |
|---|---|---|---|---|---|---|
| Rider Height | 152.4 - 167.6 cm | 152.4 - 167.6 cm | 167.6 - 172.7 cm | 172.7 - 180.3 cm | 180.3 - 187.9 cm | 187.9 - 195.5 cm |
| Rider Inseam | 70.8 - 74.4 cm | 70.8 - 74.4 cm | 74.4 - 77.9 cm | 77.9 - 83.0 cm | 83.0 - 85.8 cm | 85.8 - 88.9 cm |
Bike build and pickup
How do I receive my bike?
We'll help you arrange a place to collect your bike once it's built. Ask us to find a nearby bike builder using your shipping address, or nominate a store for us to contact. Once your pickup location is confirmed, we'll ship your bike from our Victoria warehouse to that store and contact you when it's ready to collect.
Choose how to arrange bike build and pickup
Choose one of these options before adding your bike to cart.
Find nearest for me
Choose this if you want us to find a nearby bike builder and arrange pickup for you. We'll use your shipping address at checkout to identify a nearby option and coordinate the bike build and collection. You don't need to choose a store yourself.
Nominate a store
If you have a preferred store, enter its name, address, email, and phone number. We'll contact the retailer to check whether they can arrange the bike build and pickup. Your nomination is a request, not a confirmed pickup. If the retailer is unavailable, we'll contact you about a nearby alternative.
Once you've chosen an arrangement, add your bike to cart and continue to checkout.
At checkout
Whichever pickup option you choose, enter your shipping address in the Delivery section. We need it to complete your order and, if you chose 'Find nearest for me', to help find a nearby bike builder.
Your bike will be sent to your confirmed pickup store for collection, not to your home.
Order processing
Delivery times may vary depending on the distance from our Victoria warehouse and standard shipping times. Bikes are usually dispatched within 5 days from our warehouse in Victoria. Allow extra time for the bike build at your pickup store.
Pickup details
Who can collect
The original purchaser can collect the bike.
What to bring
- Valid government-issued photo ID
- Your order confirmation email
Store opening hours vary, so check your pickup store's hours before heading in.
Questions?
Email our customer support team at support@feltbikes.com.au
SPECIFICATIONS
Frameset
Frame
Felt IntegratedAero Disc 1.0 | UHC Advanced + TeXtreme carbon fiber
Fork
Felt IntegratedAero Disc 1.0 - Dagger | UHC Advanced + TeXtreme carbon fiber
Frame Protection
Steerer stop integration for head tube protection / Felt ChainPlate for chain suck protection / Clear vinyl for chain slap protection
Brakes & Drivetrain
Shifting
2x11-speed Basebar: TRP HD-T910D, hydraulic with integrated Di2 shift buttons (right hand) / Extensions: Shimano Dura-Ace Di2 SW-R9160, TRI/TT
Rear Derailleur
Shimano Ultegra Di2 R8150
Front Derailleur
Shimano Ultegra Di2 R8150, braze-on
Bottom Bracket
Shimano BBR60
Cassette
Shimano Ultegra R8100, 11-30T
Chain
Shimano Ultegra HG701
Crankset
Shimano Ultegra R8100, 52/36T 48, 51cm: 165mm / 54, 56cm: 170mm / 58cm: 172.5mm
Wheels
Wheelset
Reynolds AR58/62 DB Custom, Shimano, Tubeless Ready
Tyre
Continental Grand Prix SL, 700x25c
Axles
Front: Devox AxleTA 123.2 | 118mm + 5.2mm head, M12 x 1.5P x 13mm, Switch lever compatible | Rear: Devox AxleTA 172-9 L | 163mm + 9mm head, M12 x P1.0 x 19mm for Syntace X-12, with SL02 Switch hollow lever
Max Tyre Clearance
28mm (4mm)
Cockpit
Stem
Felt Dagger 31.8 Integrated | SuperLite aluminum, 110mm
Headset
IS (IS-2) Top Cap: stem integrated / Top Cover: stem integrated / Bearings: FSA integrated sealed cartridge, MR122 / Spacers: - / Compression Device: Felt for carbon steerer tube / Compression Ring: FSA H2145 / Crown Race: fork integrated
Handlebar
Basebar: Devox Bayonet 3.1 | SuperLite aluminum / Extensions: Devox Ergomod | aluminum 48, 51cm: 39cm / 54, 56, 58cm: 42cm
Bar Tape
Felt EVA arm pads with anti-microbial cover and Felt Gel tape
Saddle
ISM PS1.0
Seat Post
Felt AeroTRI IL 1.0 VM | UHC Advanced carbon fiber, 0mm offset, 300mm
Seat Post Parts & Tech
Integrated / Compliance Channels with aero covers / AeroTRI InternaLoc 1.0 seatpost clamping system / Patented VariMount (VM) saddle rail clamping system
Additional Information
Extras
Felt BTSpac seat tube storage box /
Shimano EW-EC300 charging cable /
TRP hose fitting kit (2x olives and connector inserts) /
Reynolds tubeless valve stems (2x75mm) /
Compliance Channel aero seatpost covers /
Carbon assembly paste
GEOMETRY
| 48 | 51 | 54 | 56 | 58 | |
|---|---|---|---|---|---|
| (A) Head Tube Angle | 71.5° | 71.5° | 72° | 72° | 72° |
| (B) Seat Tube Angle | 79.5° | 79° | 78.5° | 78° | 77.5° |
| (C) Top Tube Length | 468 mm | 486 mm | 510 mm | 541 mm | 573 mm |
| (D) Head Tube Length | 67.5 mm | 96 mm | 111 mm | 136 mm | 163 mm |
| (E) Seat Tube Length | 496 mm | 525 mm | 546 mm | 571 mm | 598 mm |
| (F) Standover Height | 744 mm | 776 mm | 790 mm | 819 mm | 840 mm |
| (G) Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| (H) Rear Center | 408.5 mm | 408.5 mm | 408.5 mm | 408.5 mm | 408.5 mm |
| (I) Front Center | 572 mm | 589 mm | 602 mm | 630 mm | 659 mm |
| (J) Wheelbase | 969.5 mm | 986.5 mm | 999.5 mm | 1028.5 mm | 1057.5 mm |
| (K) Fork Length | 376 mm | 376 mm | 376 mm | 376 mm | 376 mm |
| (L) Fork Offset | 50 mm | 50 mm | 45 mm | 45 mm | 45 mm |
| (M) Stack | 473 mm | 501 mm | 520 mm | 544 mm | 569 mm |
| (N) Reach | 381 mm | 389 mm | 405 mm | 426 mm | 447 mm |
SIZE GUIDE
| 47 | 48 | 51 | 54 | 56 | 58 | |
|---|---|---|---|---|---|---|
| Rider Height | 152.4 - 167.6 cm | 152.4 - 167.6 cm | 167.6 - 172.7 cm | 172.7 - 180.3 cm | 180.3 - 187.9 cm | 187.9 - 195.5 cm |
| Rider Inseam | 70.8 - 74.4 cm | 70.8 - 74.4 cm | 74.4 - 77.9 cm | 77.9 - 83.0 cm | 83.0 - 85.8 cm | 85.8 - 88.9 cm |
