IAx Advanced | 105 (Sage White)

IAx Advanced | 105 (Sage White)

FB95024004-56

$7,495
$7,495
Sale Sold out
Volume pricing available
Price includes GST.

This is the perfect race-ready rig for those who crave the simplicity of mechanical shifting in the quest for speed. Reliable. Performance-oriented. Fast.

Select size

Select your nearest Click & Collect store

$7,495
$7,495
Sale Sold out
Price includes GST.

Complimentary Professional Build

Every Felt bike will be fully assembled and safety-checked by a qualified mechanic before you collect it.

Covered by Felt’s Warranty

Join thousands of riders who trust Felt. If there’s a defect in materials or workmanship, we’ll make it right.
See warranty details →

View full details

That famous IA speed

The IAx is the updated version of our famous IA. By eliminating the frame/fork nose cone and complicated one-piece front end we provide more fit options across a wider range of athlete levels. Race-ready with the advantages of a streamlined and simplified design to make bike set-up easier and to keep things simple with overall maintenance and travel to events.

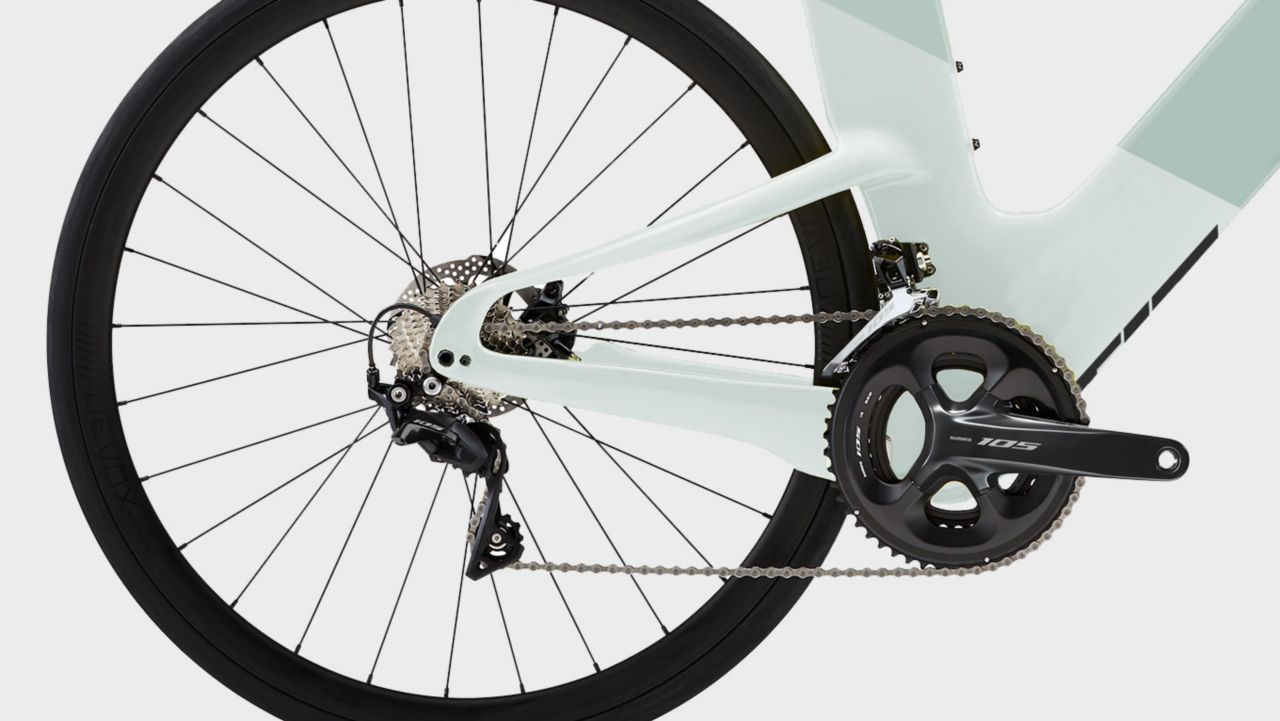

  • Shift to a new gear

    Shimano's updated 105 groupset offers the reliable shifting and quality for which Shimano is known. This latest mechanical group offers a wide 12-speed gear range and powerful brakes for a great ride.

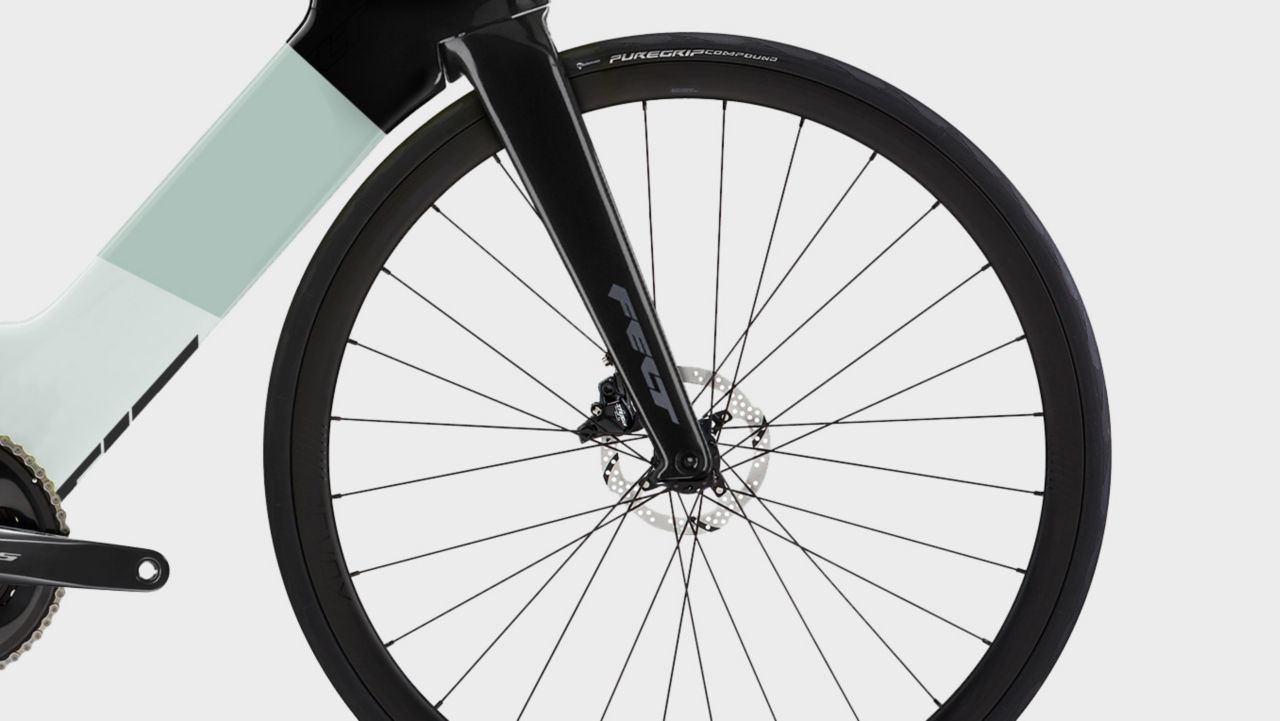

  • Wheels to go the distance

    The Devox wheelset and Continental Grand Sport Race SL tyre combination provides a stable, no-nonsense, performance-oriented set-up that's great for all of your riding needs.

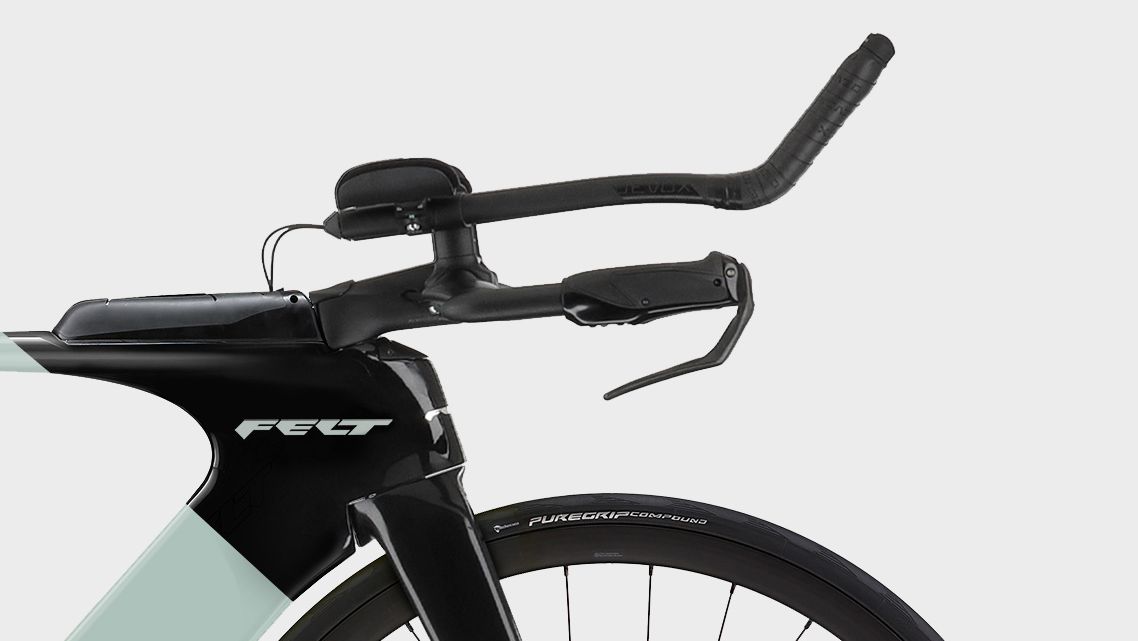

  • A precise, dialed fit

    With rider position a key part of the performance equation, you'll be able to fully dial-in your set-up with an easy-to-adjust front end. The aluminium stem, base bar, and extensions offer individual adjustments to get your best riding position.

1 3

SPECIFICATIONS

Frameset

Frame

Felt IAx 1.0, UHC Advanced

Fork

Felt IAx 1.0, UHC Advanced

Brakes & Drivetrain

Front Brake

TRP HD-T910, 2-piston, Hydraulic disc brake

Front Brake Rotor

TRP TR25, 140 mm, Center lock

Rear Brake

TRP HD-T910, 2-piston, Hydraulic disc brake

Rear Brake Rotor

TRP TR25, 140 mm, Center lock

Brake Lever

TRP HD-T910

Rear Derailleur

Shimano 105, RD-R7100, short cage, 24-S

Front Derailleur

Shimano 105, FD-R7100, Brazed-On

Cassette

Shimano 105 CS-R7100, 11-34 T

Chain

Shimano CN-M7100

Crankset

Shimano 105, FC-R7100, 50/34 T

Shift Lever

Microshift BS-A11

Wheels

Wheelset

Devox WheelRDS.A1, Tubeless ready, Center lock, 12x100/12x142 mm

Front Wheel

Rim: Alex Aluminum 23.8/19/30mm / Hub: Shimano HBRS470CL

Rear Wheel

Rim: Alex Aluminum 23.8/19/30mm / Hub: Shimano FHRS470CL

Tyre

Continental Grand Prix SL, 700x25

Cockpit

Stem

Felt Dagger 31,8

Headset

IS (NO.42)

Handlebar

Basebar: Devox Bayonet 3.1 | SuperLite aluminum / Extensions: Devox Ergomod | aluminum

Saddle

ISM PS1.0, Satin Steel

Seat Post

Felt Aero TRI IL 1.0 VM

Additional Information

Permissible Total Weight

129 kg

Trailer Approval

No trailer approval

GEOMETRY

IAx chart
48 51 54 56 58
(A) Top Tube Length 467 mm 490 mm 510 mm 538 mm 567 mm
(B) Seat Tube Length 489 mm 512 mm 538 mm 563 mm 586 mm
(C) Seat Tube Angle 79.5° 79° 78.5° 78° 77.5°
(D) Head Tube Length 63 mm 86 mm 109 mm 134 mm 157 mm
(E) Steering Angle 71.5° 71.5° 72° 72° 72°
(G) Wheel Base 958 mm 980 mm 990 mm 1016 mm 1042 mm
(I) BB-Drop 72 mm 72 mm 72 mm 72 mm 72 mm
(K) Fork Offset 50 mm 50 mm 45 mm 45 mm 45 mm
(L) Stack 473 mm 495 mm 520 mm 544 mm 566 mm
(M) Reach 378 mm 392 mm 404 mm 421 mm 440 mm
(O) Crank Length 165 mm 165 mm 170 mm 170 mm 172.5 mm

SIZE GUIDE

47 48 51 54 56 58
Rider Height 152.4 - 167.6 cm 152.4 - 167.6 cm 167.6 - 172.7 cm 172.7 - 180.3 cm 180.3 - 187.9 cm 187.9 - 195.5 cm
Rider Inseam 70.8 - 74.4 cm 70.8 - 74.4 cm 74.4 - 77.9 cm 77.9 - 83.0 cm 83.0 - 85.8 cm 85.8 - 88.9 cm

Explore IAx Triathlon Race
