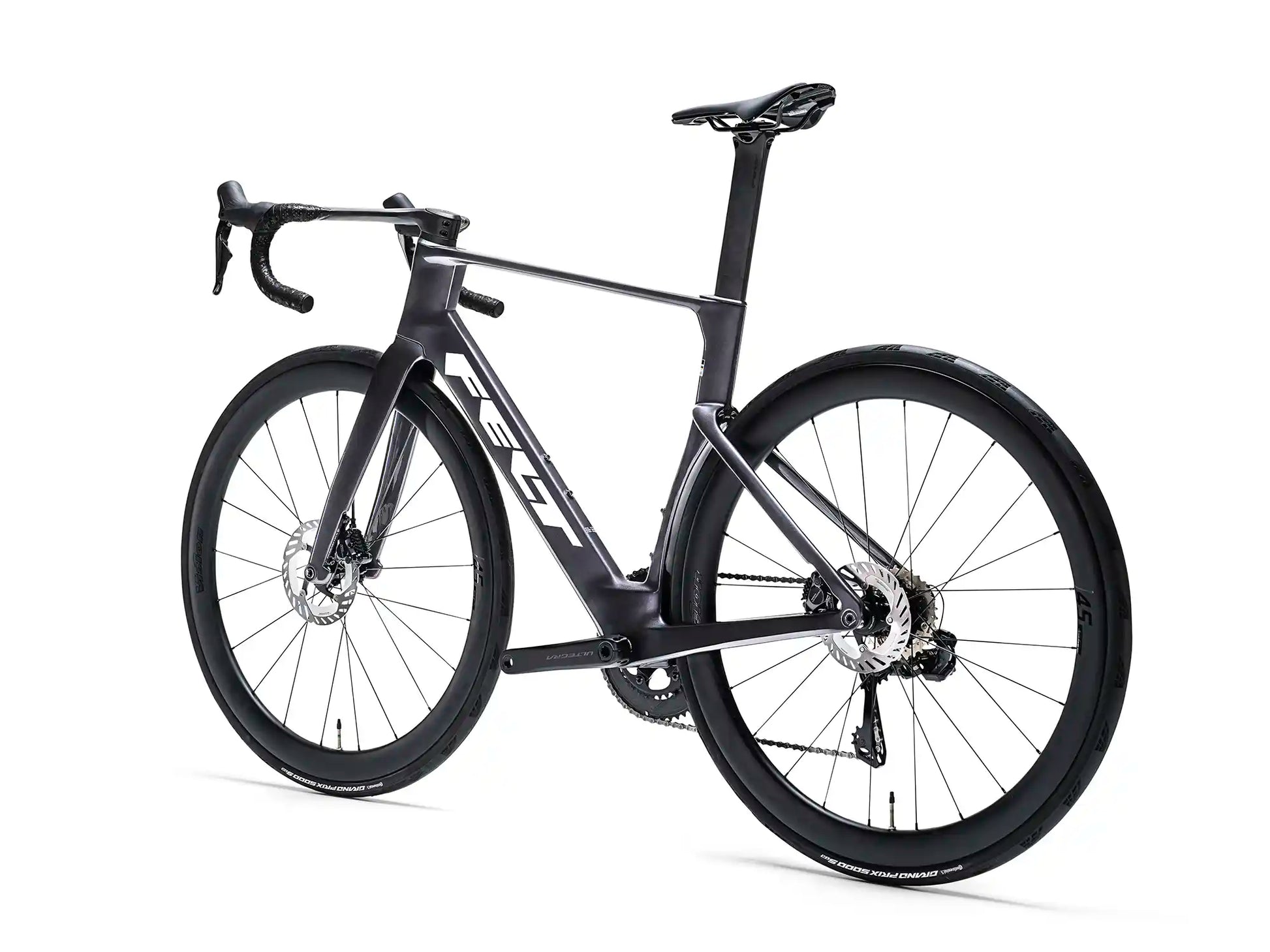

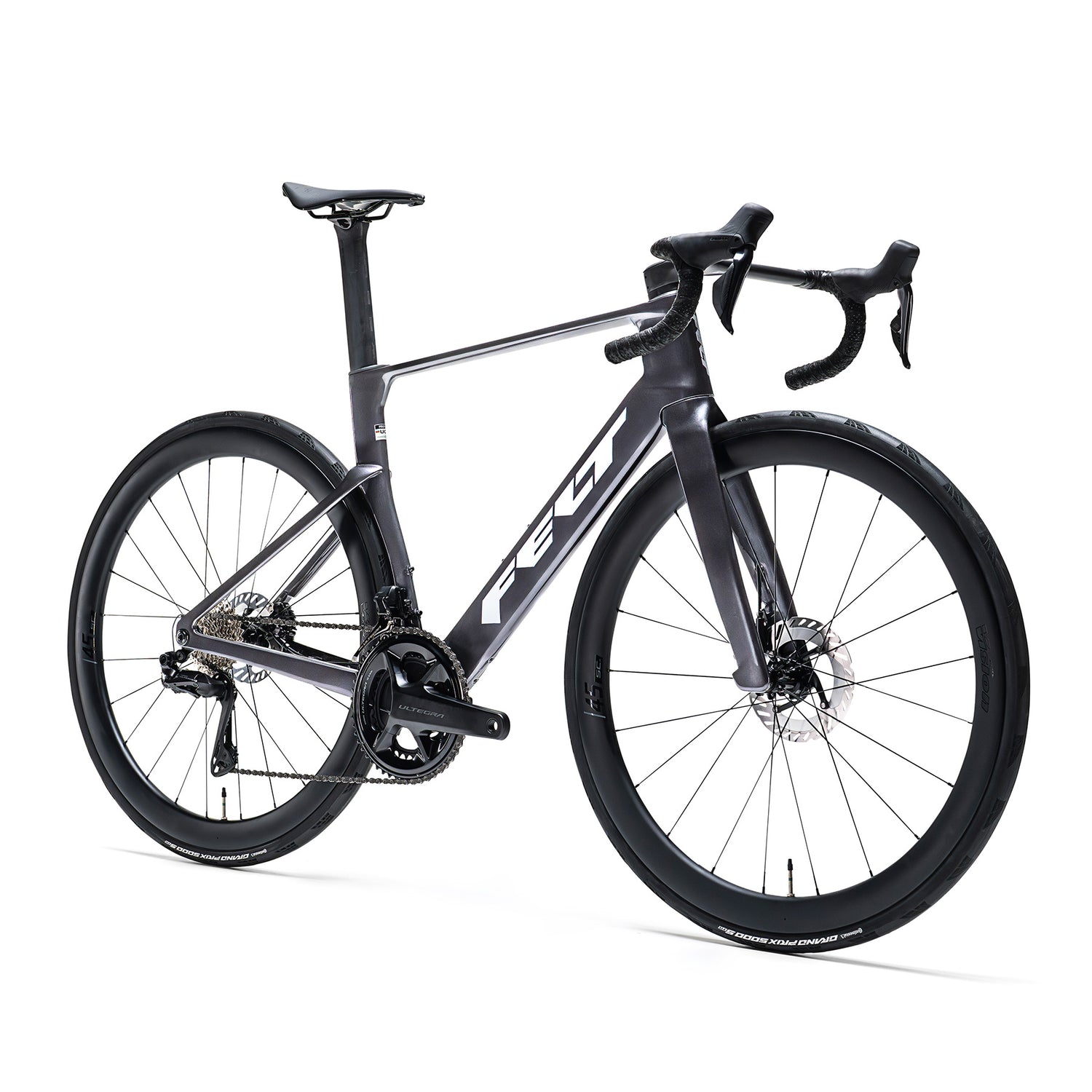

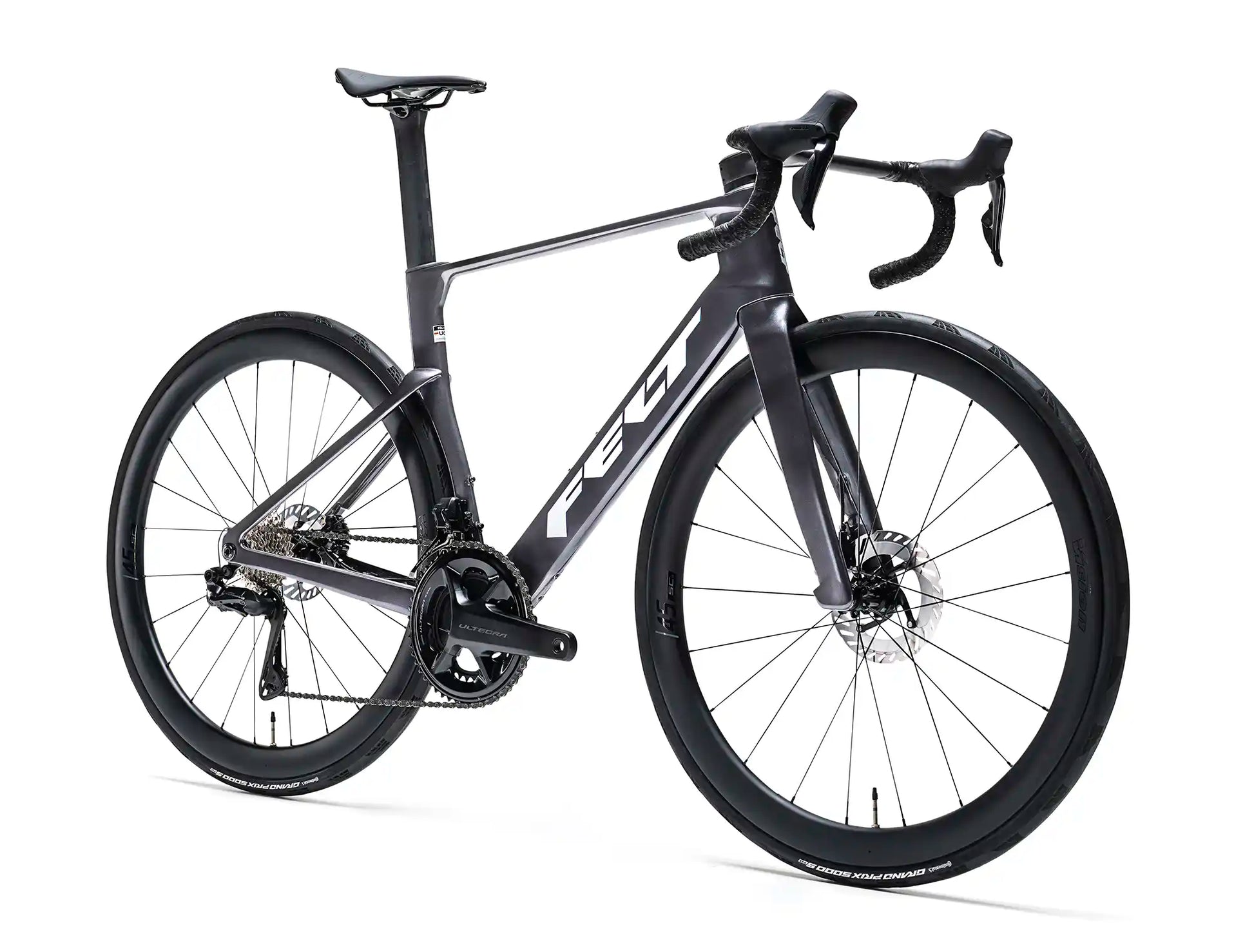

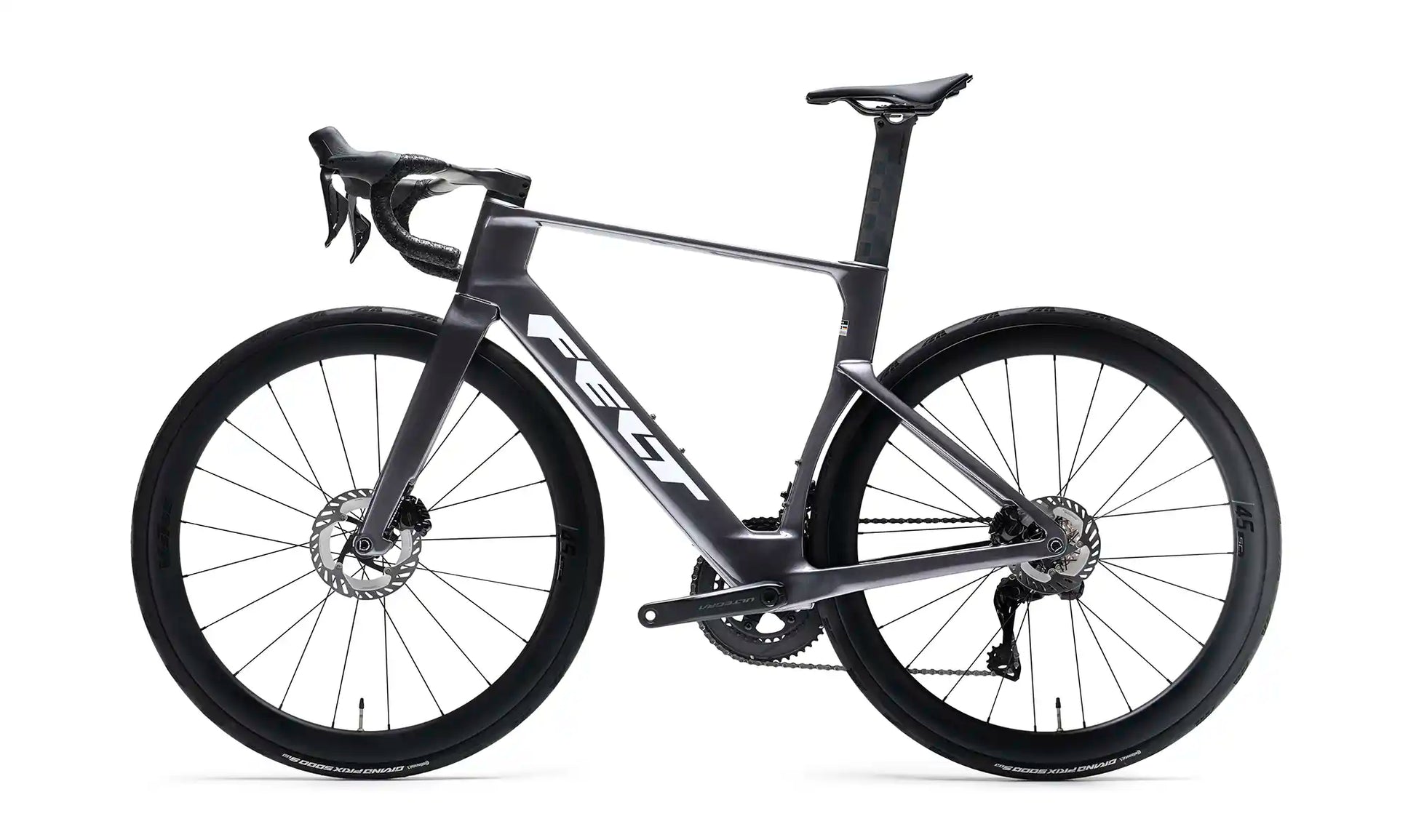

NEXAR | Expert Ultegra Di2

NEXAR | Expert Ultegra Di2

$10,499
$10,499
Sale
Included: GST, and shipping to Click & Collect locations.

NEXAR competes at the highest level of CdA while deliberately balancing three defining pillars: AERO, WEIGHT, and FIT. Not maximised in a single dimension, but precisely optimised across all three: exactly how much to push AERO, how far to reduce WEIGHT and how to refine FIT. This is what makes NEXAR a new kind of aero bike. The fastest FELT we have ever built, engineered for real riders, real conditions and real speed. This is NEXAR. Aero as you've never FELT.

UD carbon is our benchmark layup, developed to perform at the highest level for every rider.

View full details

AERO AS YOU'VE NEVER FELT

BUILT FOR THE 99%

With the launch of FELT’s new generation of aero bikes, we introduce the name NEXAR. A fusion of “Next” and “AR”, it marks FELT’s next evolution in aerodynamics performance. NEXAR represents a new era for FELT where aero no longer means compromise. Where an aero bike is designed not just for the strongest 1 percent of racers but engineered to work for the 99 percent of the performers on the market.

SKIP THE QUEUE

  • AERODYNAMICS

    5% drag reduction versus previous AR model

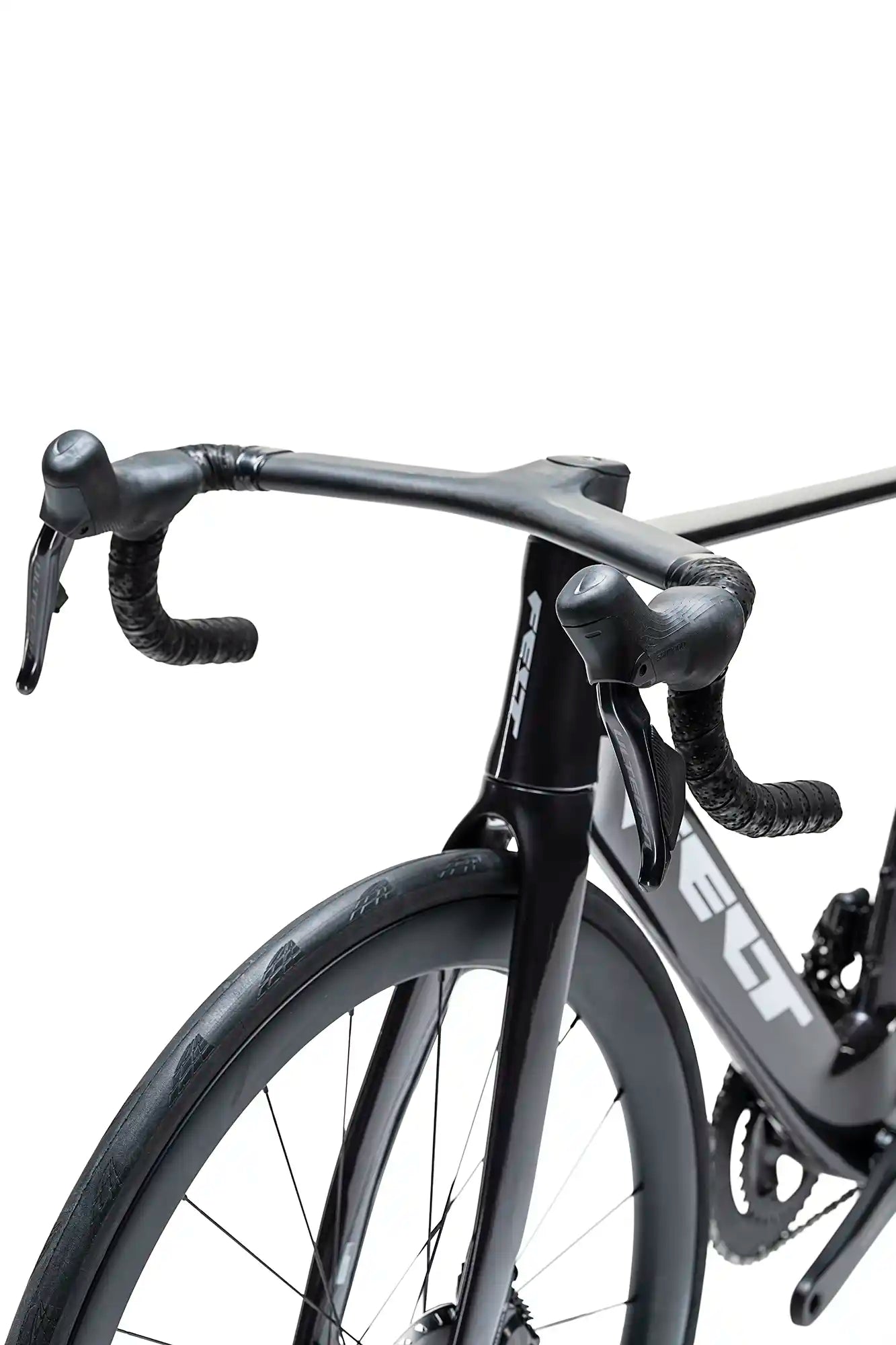

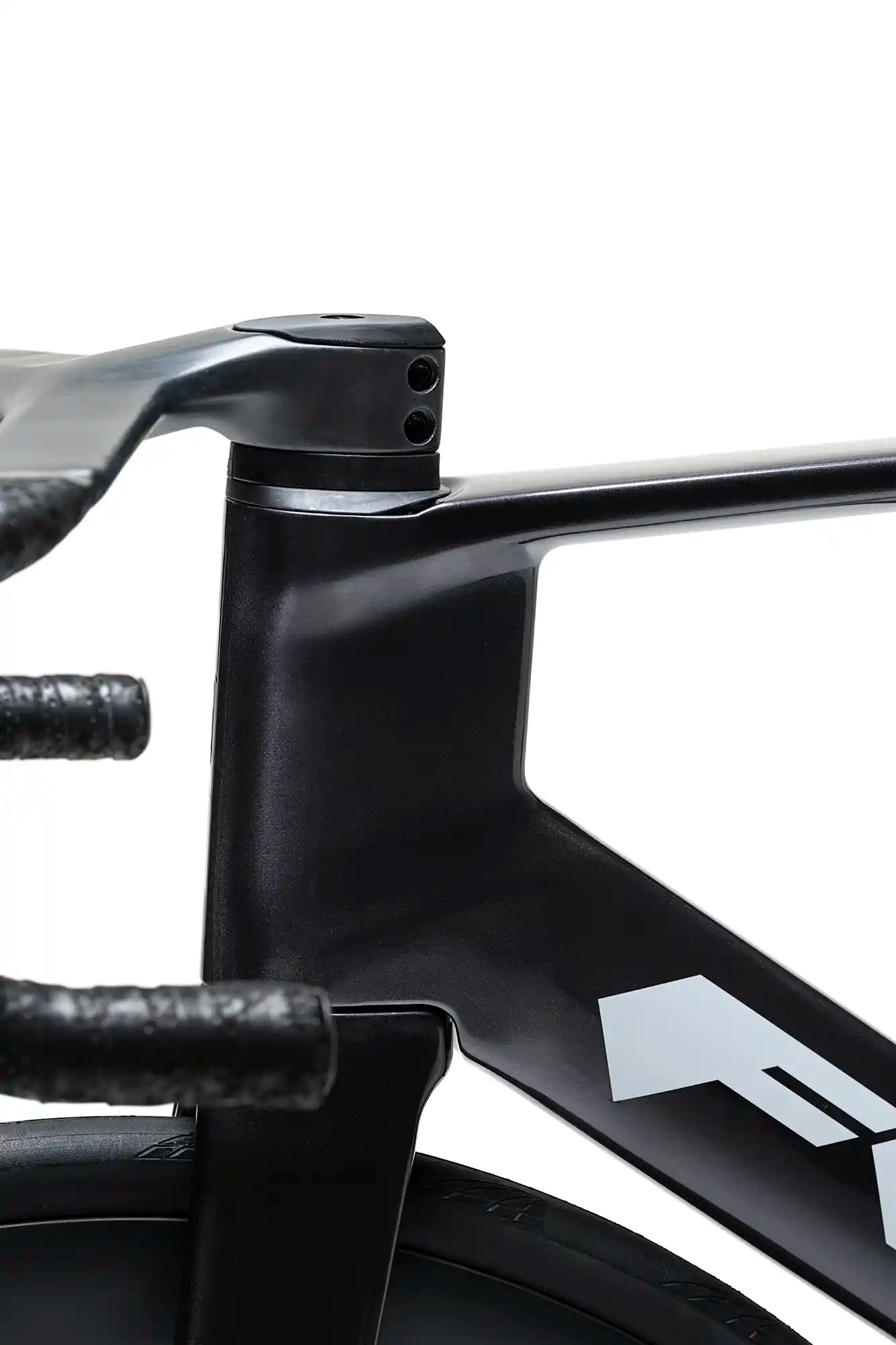

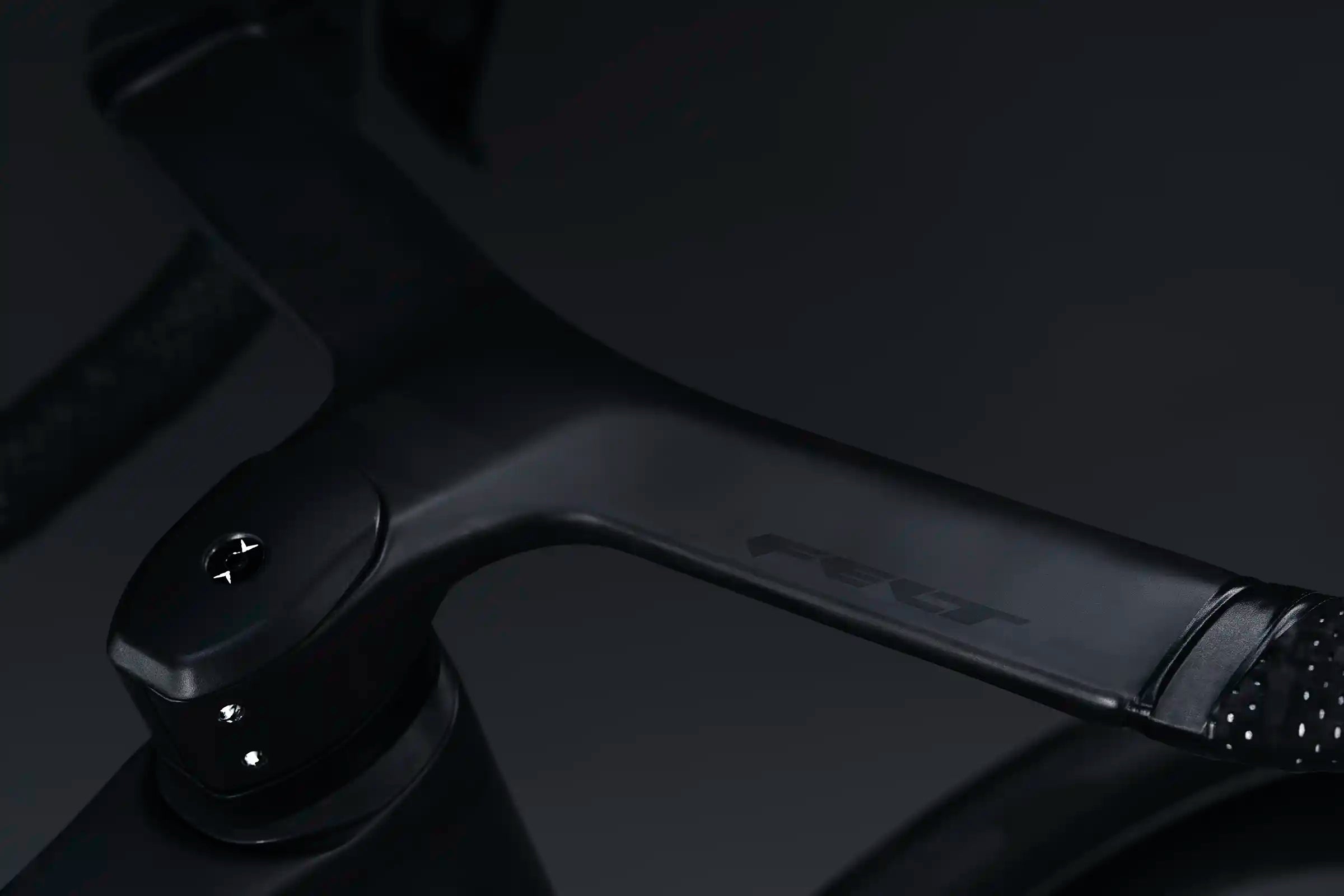

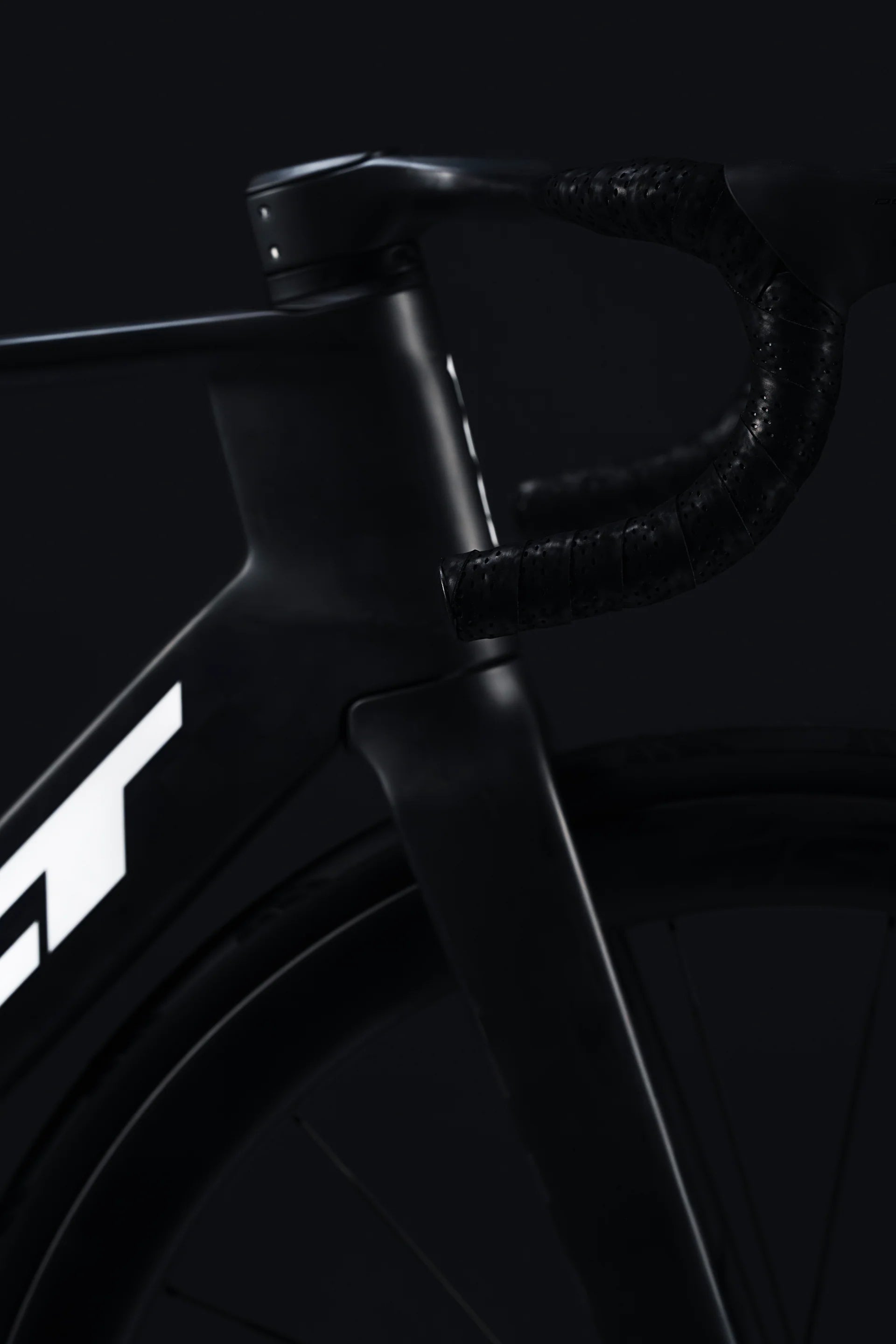

  • FELT one-piece cockpit

    ≤300grams

  • HIGHER STACK

1 3

SPECIFICATIONS

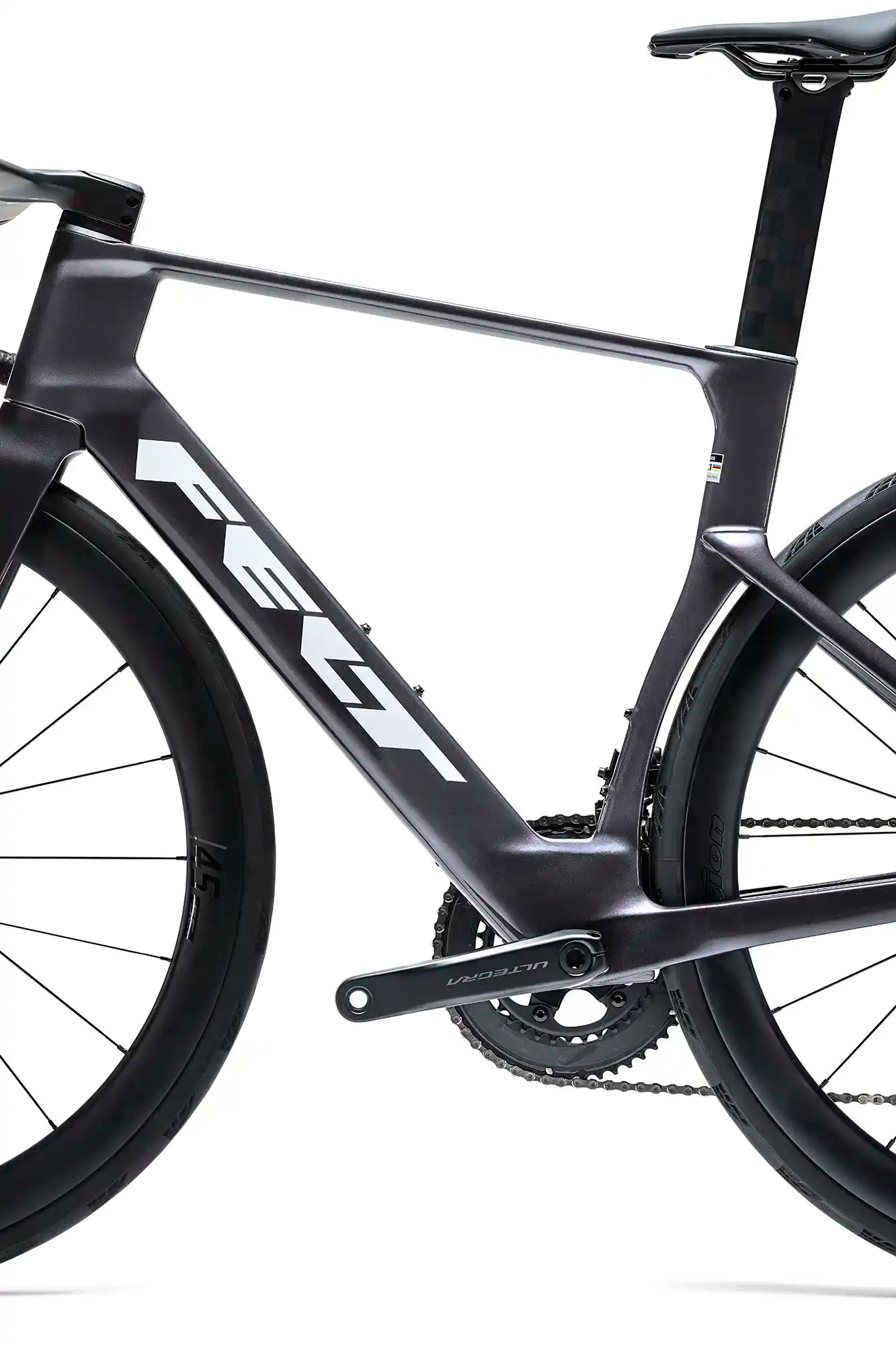

Frameset

Frame

NEXAR- UD CARBON STD FRAME

Fork

NEXAR Ð UD CARBON FORK

Brakes & Drivetrain

Front Brake

SHIMANO ULTEGRA, BR-R8170, 2-PISTON, HYDRAULIC DISC BRAKE

Front Brake Rotor

SHIMANO RT-MT900, CENTER LOCK, 160 MM

Rear Brake

SHIMANO ULTEGRA, BR-R8170, 2-PISTON, HYDRAULIC DISC BRAKE

Rear Brake Rotor

SHIMANO RT-MT900, CENTER LOCK, 140 MM

Rear Derailleur

SHIMANO ULTEGRA DI2, RD-R8150 SHADOW, 2X12-SPEED

Front Derailleur

SHIMAO ULTEGRA DI2, FDR8150

Bottom Bracket

SHIMANO, BBR60

Cassette

SHIMANO ULTEGRA CS-R8100, 11-30T

Chain

SHIMANO CNM8100 - HG 12 SPEED

Crankset

SHIMANO ULTEGRA, FC-R8100, 52/36 T

Shift Lever

SHIMANO ULTEGRA Di2, ST-R8170

Wheels

Wheelset

VISION SC45 i23

Tyre

CONTINENTAL GRAND PRIX 5000 S TR, 700x28c

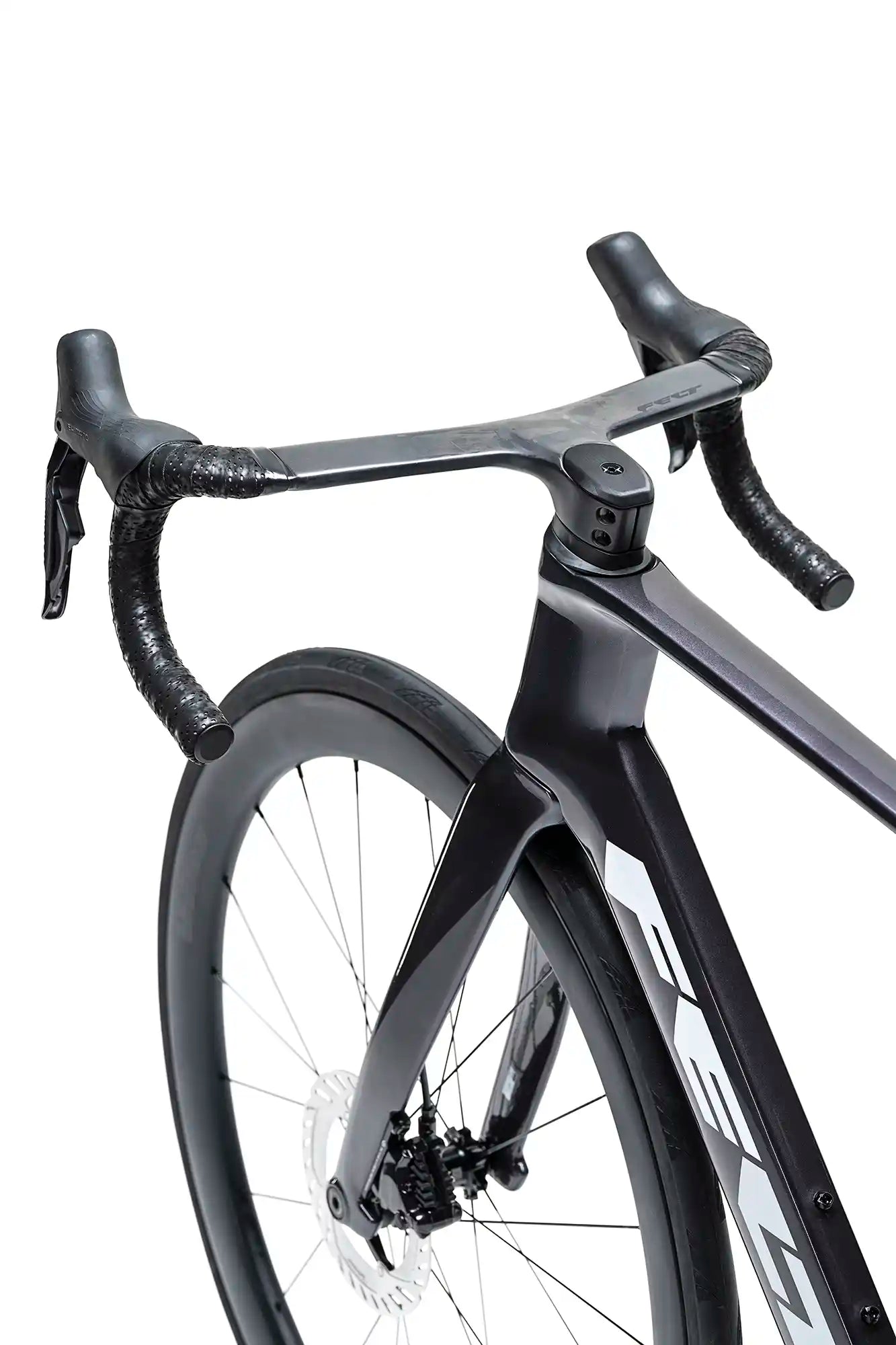

Cockpit

Handlebar

FELT ROAD 1 PIECE INTEGRATED COCKPIT

45 / 48: 360/400x90 CARBON

51 / 54/ 56: 380/400x100 CARBON

58 / 61: 400/440x110 CARBON

Saddle

PROLOGO - NAGO R4 PAS T2.0 137

Seat Post

45 / 48 / 51: FELT NEXAR DEDICATED SP, 250 MM CARBON

54/ 56 / 58 / 61: FELT NEXAR DEDICATED SP, 330 MM CARBON

Additional Information

Permissible Total Weight

120 kg

Trailer Approval

No trailer approval

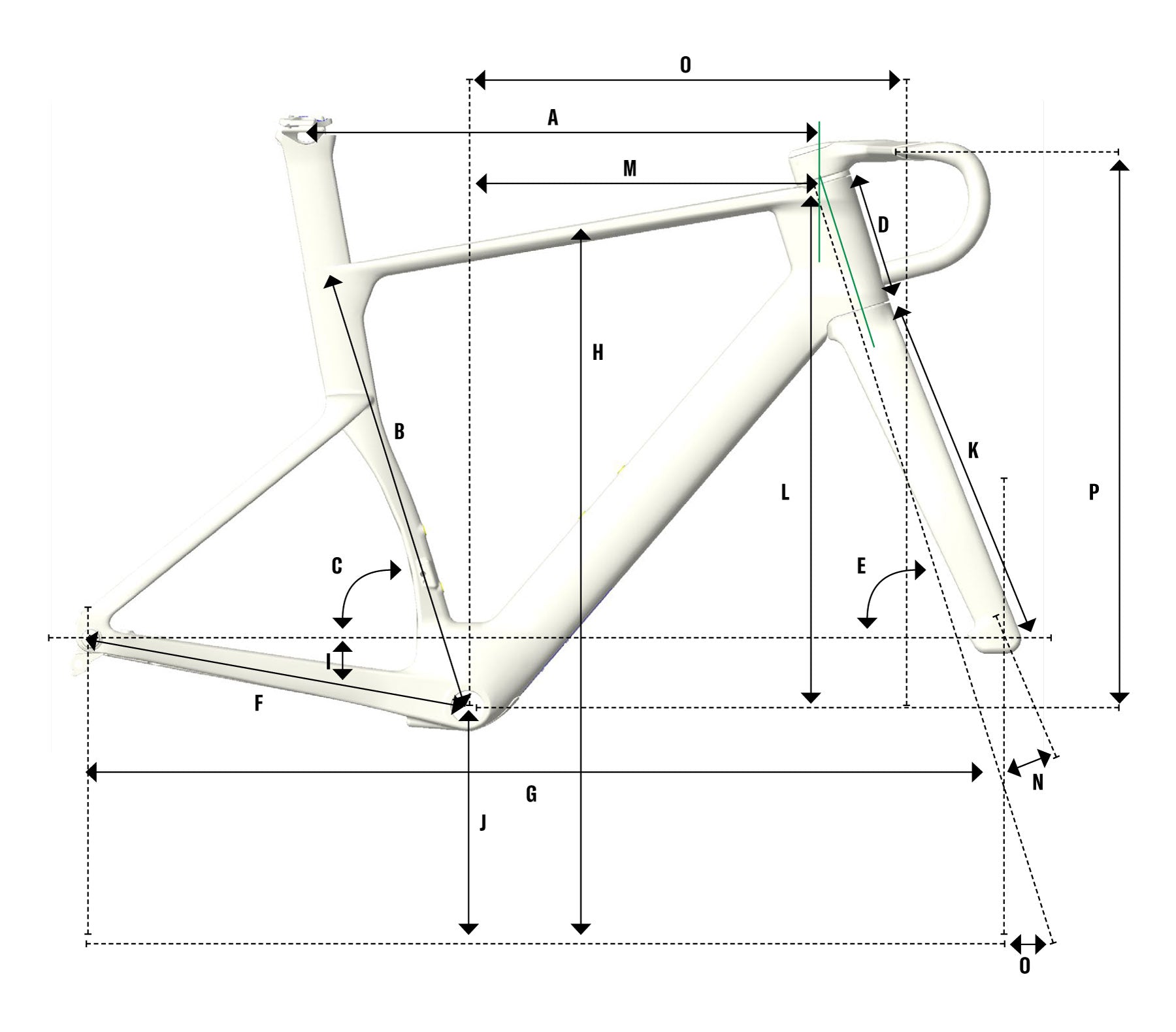

GEOMETRY

NEXAR chart
  XXS XS S M L XL XXL
NOMINAL SIZE   44 49 52 54 56 58 61
RIDER INTENDED HEIGHT cm 142-155 155-163 163-170 170-175 175-180 180-188 188-196
RIDER INSEAM HEIGHT cm 65-70.5 70.5-77 77-80.7 80.7-83.5 83.5-86.7 86.7-94.4 94.4-96
REACH - R mm 350 365 370 380 390 395 405
STACK - S mm 515 522 537 558 576 600 631
TOB TUBE HOR. - A mm 485 505 524 540 561 578 604
SEAT TUBE LENGTH - B mm 425 445 465 490 515 540 570
SEAT TUBE ANGLE - C ° 75.5 75 75 74.5 74 74 73.5
HEAD TUBE LENGTH - D mm 90 105 120 140 160 185 215
HEAD TUBE ANGLE - E ° 70.5 71.5 72.5 73 73.5 73.5 74
FORK BUILD HEIGHT - F mm 380 380 380 380 380 380 380
FORK RAKE - G mm 50 50 50 44 44 44 44
TRAIL - H mm 67 61 55 58 55 55 52
CS LENGTH - I mm 408 408 408 408 408 408 408
STANDOVER - J mm 723 735 755 778 802 826 855
BB DROP - K mm 75 75 72.5 72.5 70 70 70
BB HEIGHT - L mm 265 265 267.5 267.5 270 270 270
WHEELBASE - M mm 960 968 970 976 988 1000 1013
CRANK LENGTH mm 165 165 167.5 167.5 170 170 170
STEM LENGTH mm 90 90 100 100 100 110 110

SIZE GUIDE

  XXS XS S M L XL XXL
NOMINAL SIZE   44 49 52 54 56 58 61
RIDER INTENDED HEIGHT cm 142-155 155-163 163-170 170-175 175-180 180-188 188-196
RIDER INSEAM HEIGHT cm 65-70.5 70.5-77 77-80.7 80.7-83.5 83.5-86.7 86.7-94.4 94.4-96
