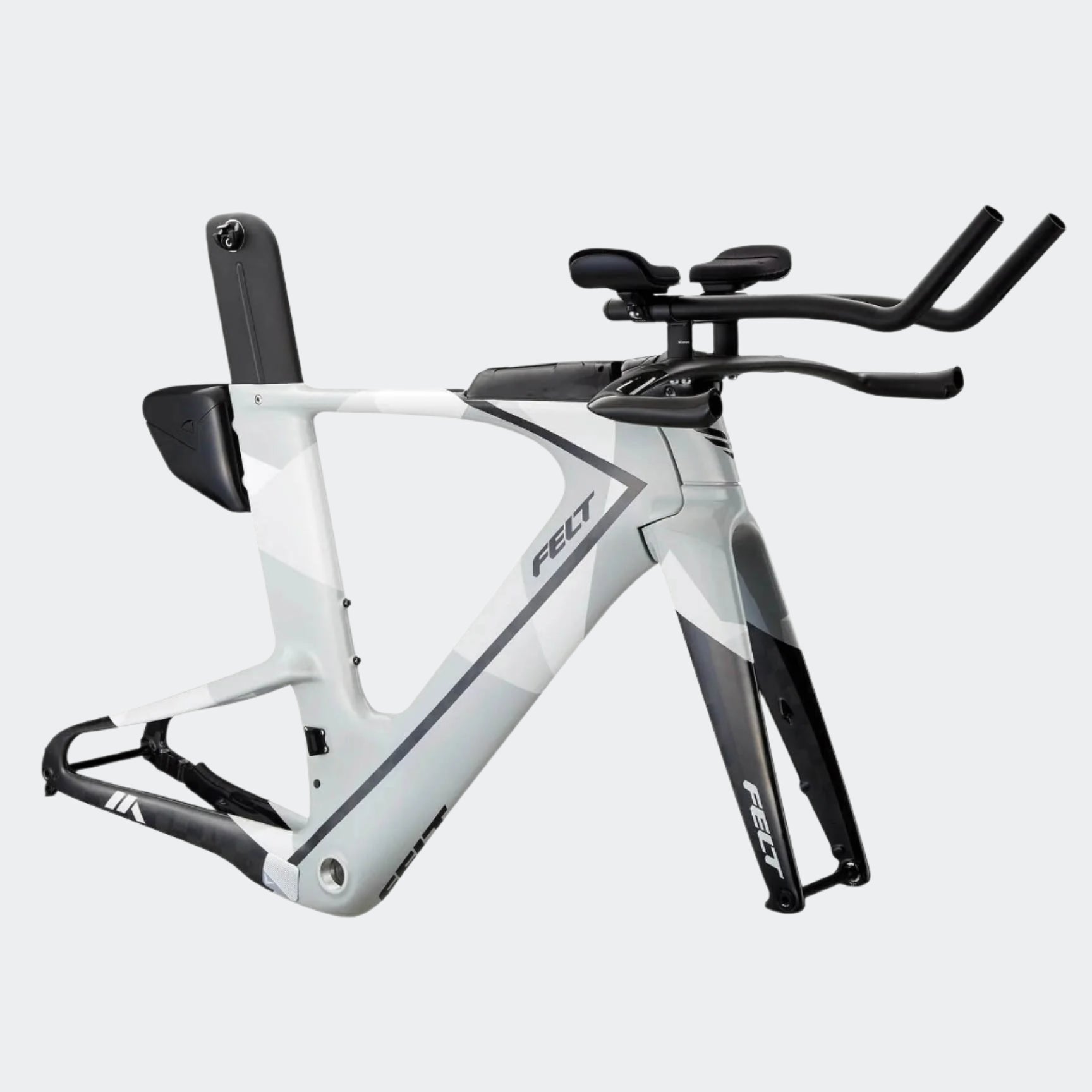

IA Advanced Disc | Triathlon Frame (Cement Geo)

IA Advanced Disc | Triathlon Frame (Cement Geo)

FB3014F-48

$7,000
$7,000
Sale Sold out
Included: GST, and shipping to Click & Collect locations.

The PR-slaying IA frame platform system. Build your dream tri bike starting here. Featuring our Advanced-level carbon technology.

Select size

Select your nearest Click & Collect store

$7,000
$7,000
Sale Sold out
Included: GST, and shipping to Click & Collect locations.

Complimentary Professional Build

Every Felt bike will be fully assembled and safety-checked by a qualified mechanic before you collect it.

Covered by Felt’s Warranty

Join thousands of riders who trust Felt. If there’s a defect in materials or workmanship, we’ll make it right.
See warranty details →

View full details

SPECIFICATIONS

Frameset

Frame

Felt IntegratedAero Disc | UHC Advanced + TeXtreme carbon fibre

Fork

Felt IntegratedAero Dagger Disc | UHC Advanced + TeXtreme carbon fiber

Cockpit

BaseBar: Devox Dagger Integrated | UHC Ultimate + Nano

Extensions: Devox f-Bend | carbon fibre, 3-position

Extensions: Devox: Devox Ergomod | carbon fibre

Additional Information

Extras

IA CALpac 2.0 Top Tube storage / IA BTSpac Seat Tube storage box / Dagger stem cover with 1/4-turn Garmin Mount / Compliance Channel aero seatpost covers / Carbon assembly paste

Weight

4.04 kg

GEOMETRY

IA chart
48 51 54 56 58
(A) Head Tube Angle 71.5° 71.5° 72° 72° 72°
(B) Seat Tube Angle 79.5° 79° 78.5° 78° 77.5°
(C) Top Tube Length 468 mm 486 mm 510 mm 541 mm 573 mm
(D) Head Tube Length 67.5 mm 96 mm 111 mm 136 mm 163 mm
(E) Seat Tube Length 496 mm 525 mm 546 mm 571 mm 598 mm
(F) Standover Height 744 mm 776 mm 790 mm 819 mm 840 mm
(G) Bottom Bracket Drop 72 mm 72 mm 72 mm 72 mm 72 mm
(H) Rear Center 408.5 mm 408.5 mm 408.5 mm 408.5 mm 408.5 mm
(I) Front Center 572 mm 589 mm 602 mm 630 mm 659 mm
(J) Wheelbase 969.5 mm 986.5 mm 999.5 mm 1028.5 mm 1057.5 mm
(K) Fork Length 376 mm 376 mm 376 mm 376 mm 376 mm
(L) Fork Offset 50 mm 50 mm 45 mm 45 mm 45 mm
(M) Stack 473 mm 501 mm 520 mm 544 mm 569 mm
(N) Reach 381 mm 389 mm 405 mm 426 mm 447 mm

SIZE GUIDE

47 48 51 54 56 58
Rider Height 152.4 - 167.6 cm 152.4 - 167.6 cm 167.6 - 172.7 cm 172.7 - 180.3 cm 180.3 - 187.9 cm 187.9 - 195.5 cm
Rider Inseam 70.8 - 74.4 cm 70.8 - 74.4 cm 74.4 - 77.9 cm 77.9 - 83.0 cm 83.0 - 85.8 cm 85.8 - 88.9 cm
