TK FRD | Ultimate | Frame

TK FRD | Ultimate | Frame

FB3013F-51

$5,999
$5,999
Sale Sold out
Volume pricing available
Price includes GST.

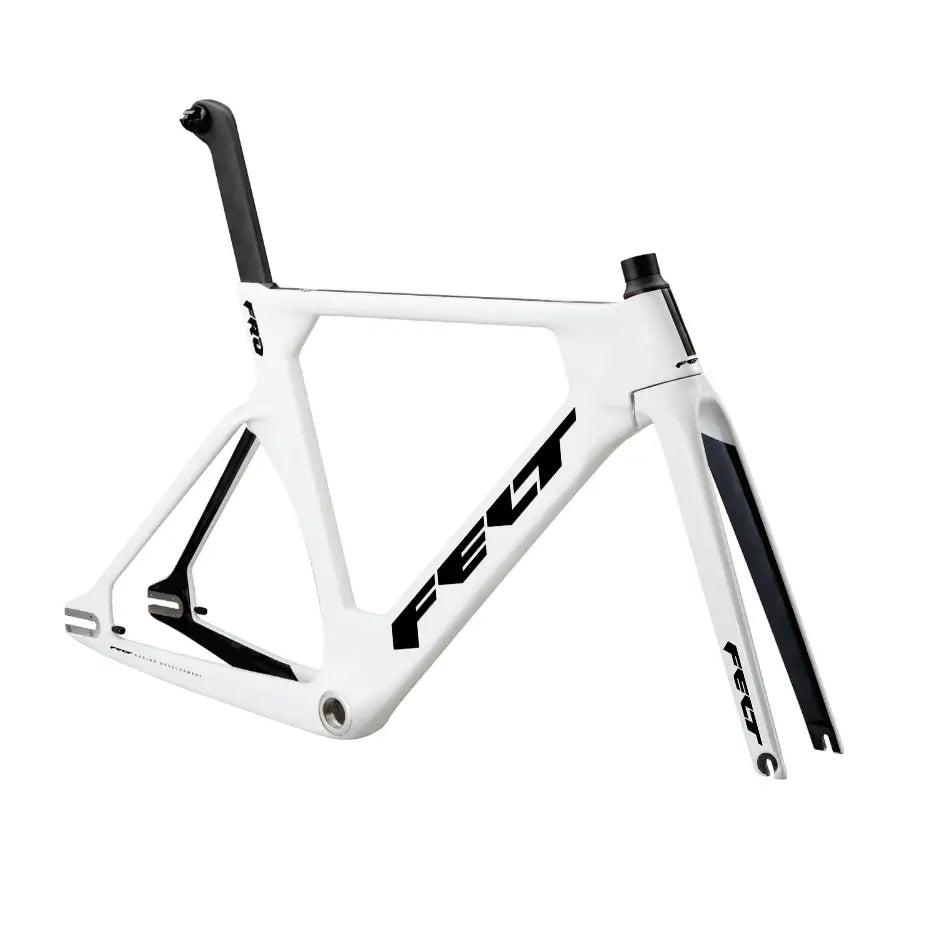

The TK FRD frameset offers track cyclists a cutting-edge foundation to build their dream bike.

Building on Felt's previous flagship TA FRD frames, the TK FRD was redesigned to be lighter, stiffer, and more aero. Pulling in Felt's history of performance geometry know-how, the result is a frameset designed to deliver results on the velodrome.

Size

Select your nearest Click & Collect store

$5,999
$5,999
Sale Sold out
Price includes GST.

Covered by Felt’s Warranty

Join thousands of riders who trust Felt. If there’s a defect in materials or workmanship, we’ll make it right.
See warranty details →

View full details

SPECIFICATIONS

Frameset

Frame

Felt TK 2.0, UHC Ultimate + TeXtreme carbon

Fork

Felt TK 2.0, UHC Ultimate + TeXtreme carbon fiber

Additional Information

Permissible Total Weight

129 kg

Trailer Approval

No trailer approval

GEOMETRY

51 55 58 60 62
(A) Top Tube Length 514 mm 550 mm 575 mm 595 mm 615 mm
(B) Seat Tube Length 474 mm 497 mm 522 mm 543 mm 556 mm
(C) Seat Tube Angle 74° 74° 74° 74° 74°
(D) Head Tube Length 65 mm 88 mm 113 mm 134 mm 146 mm
(E) Steering Angle 73.5° 73.5° 73.5° 73.5° 73.5°
(F) Chain Stay Length 375 mm 376 mm 377 mm 378 mm 379 mm
(G) Wheel Base 914 mm 951 mm 977 mm 996 mm 1017 mm
(I) BB-Drop 55 mm 55 mm 55 mm 55 mm 55 mm
(K) Fork Offset 40 mm 40 mm 40 mm 40 mm 40 mm
(L) Stack 456 mm 478 mm 502 mm 522 mm 534 mm
(M) Reach 383 mm 413 mm 502 mm 522 mm 534 mm

SIZE GUIDE

51 55 58 60 62 58
Rider Height 152.4 - 167.6 cm 152.4 - 167.6 cm 167.6 - 172.7 cm 172.7 - 180.3 cm 180.3 - 187.9 cm 187.9 - 195.5 cm
Rider Inseam 70.8 - 74.4 cm 70.8 - 74.4 cm 74.4 - 77.9 cm 77.9 - 83.0 cm 83.0 - 85.8 cm 85.8 - 88.9 cm
