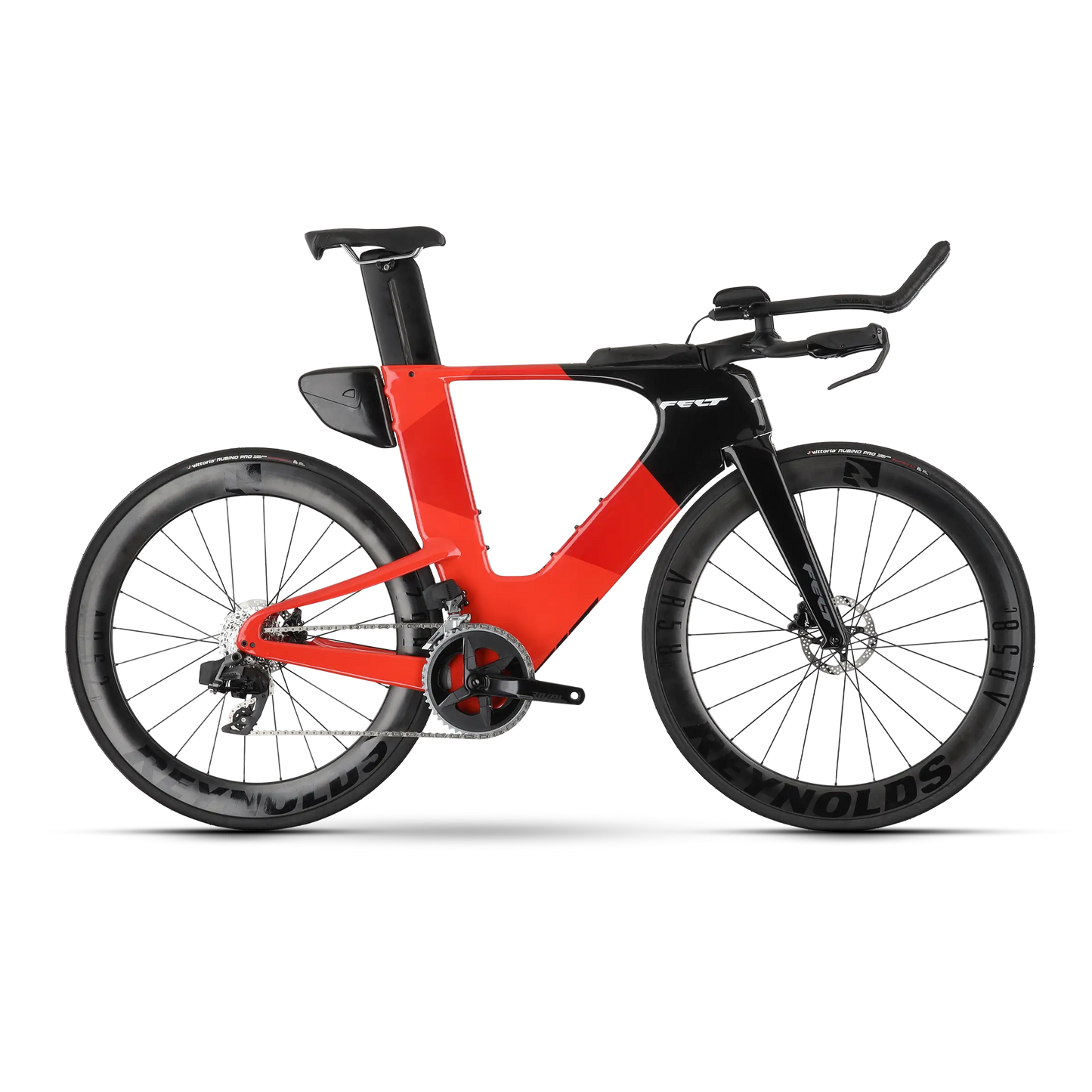

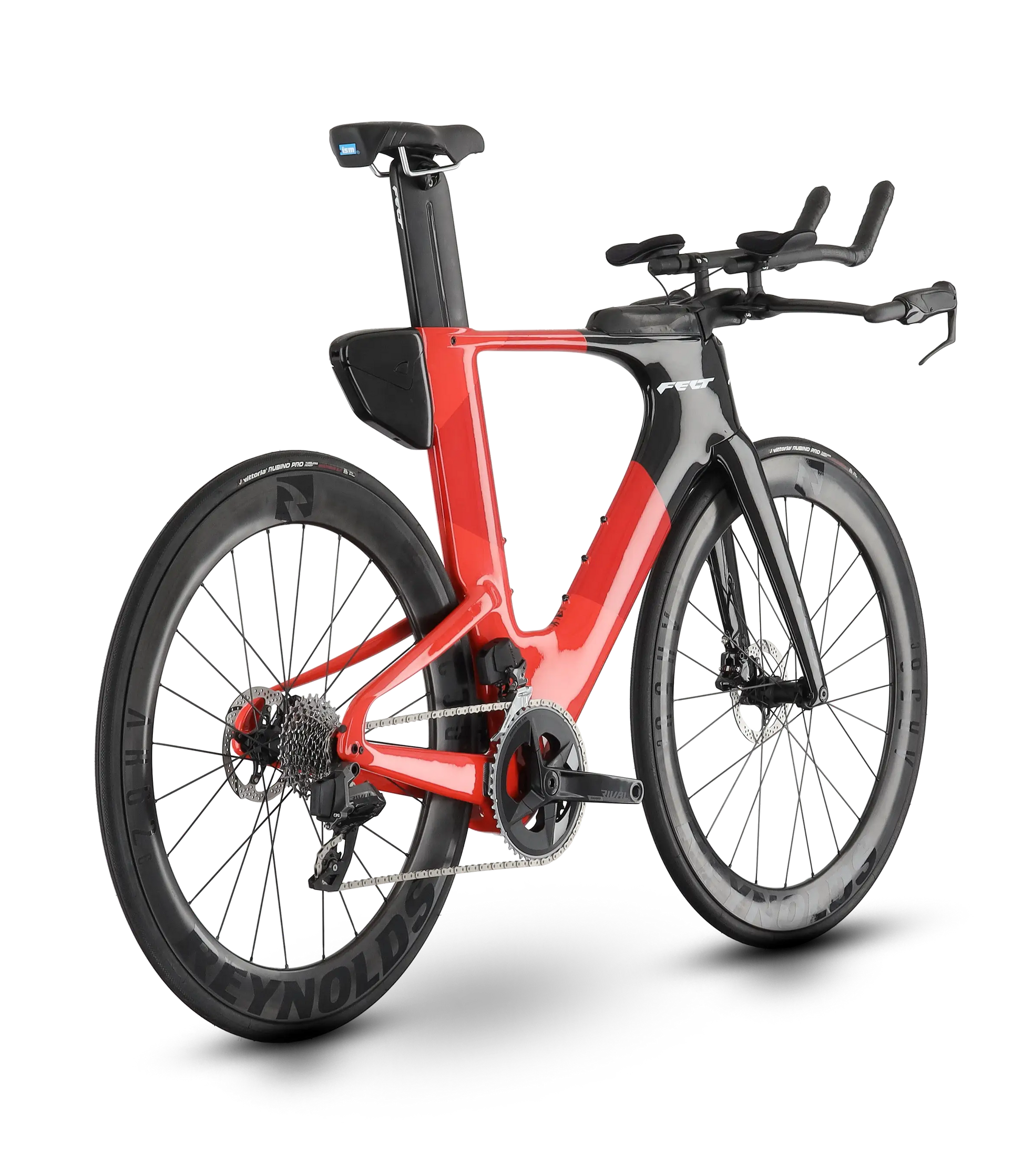

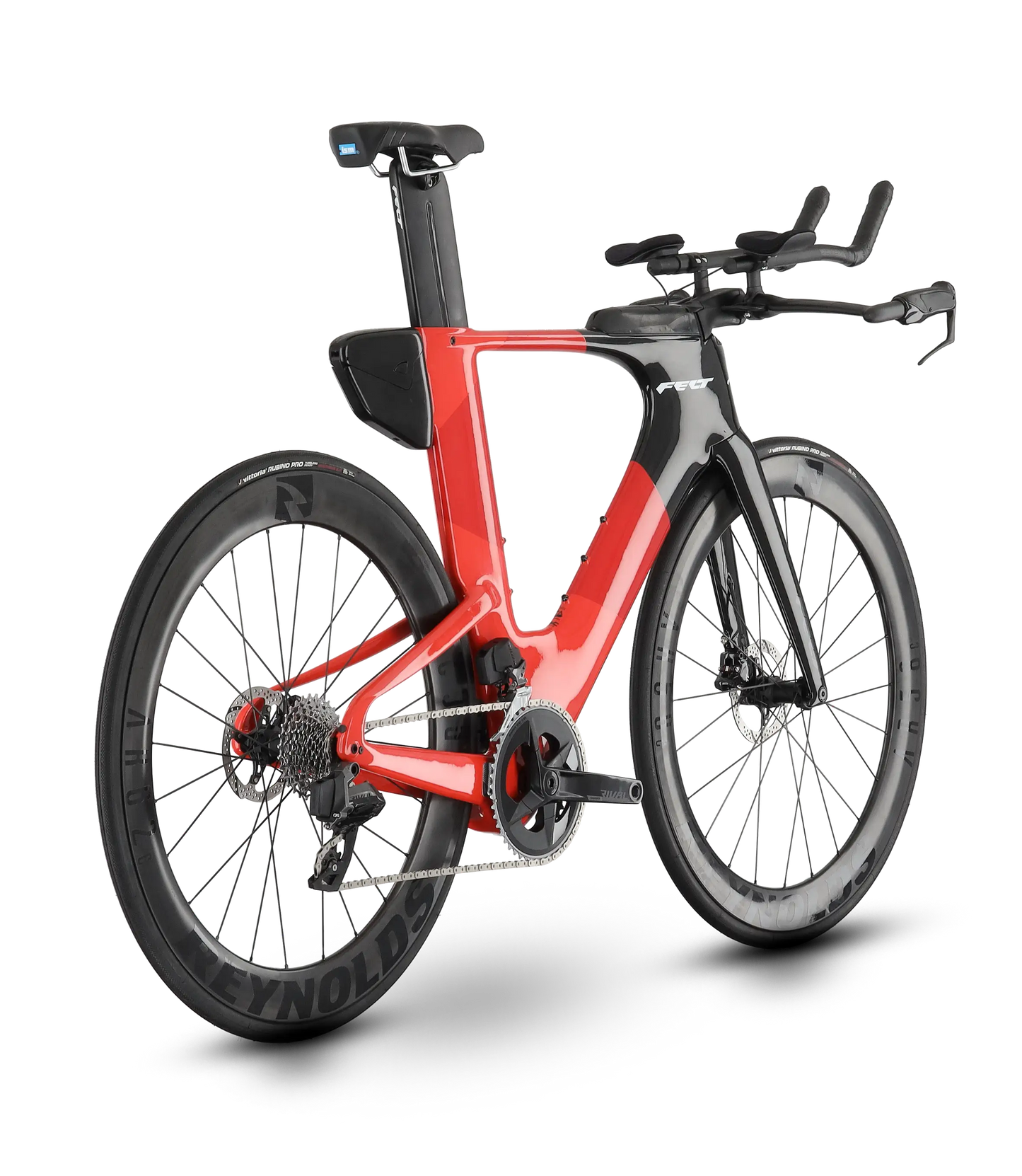

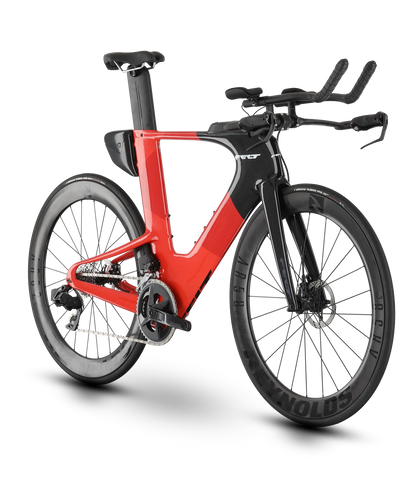

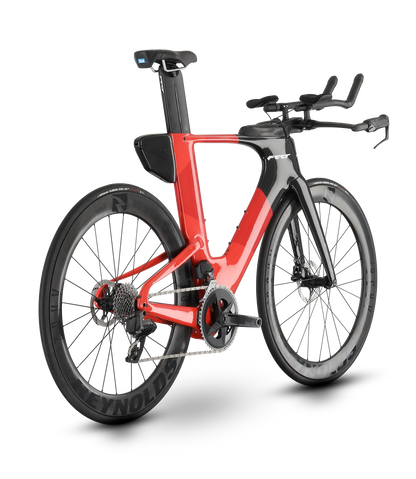

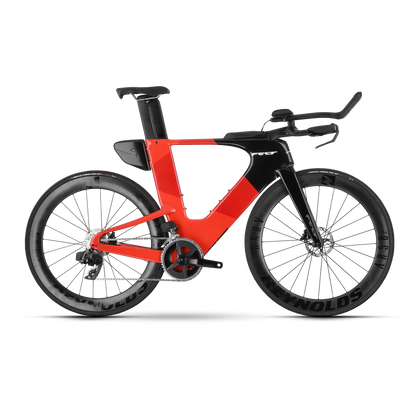

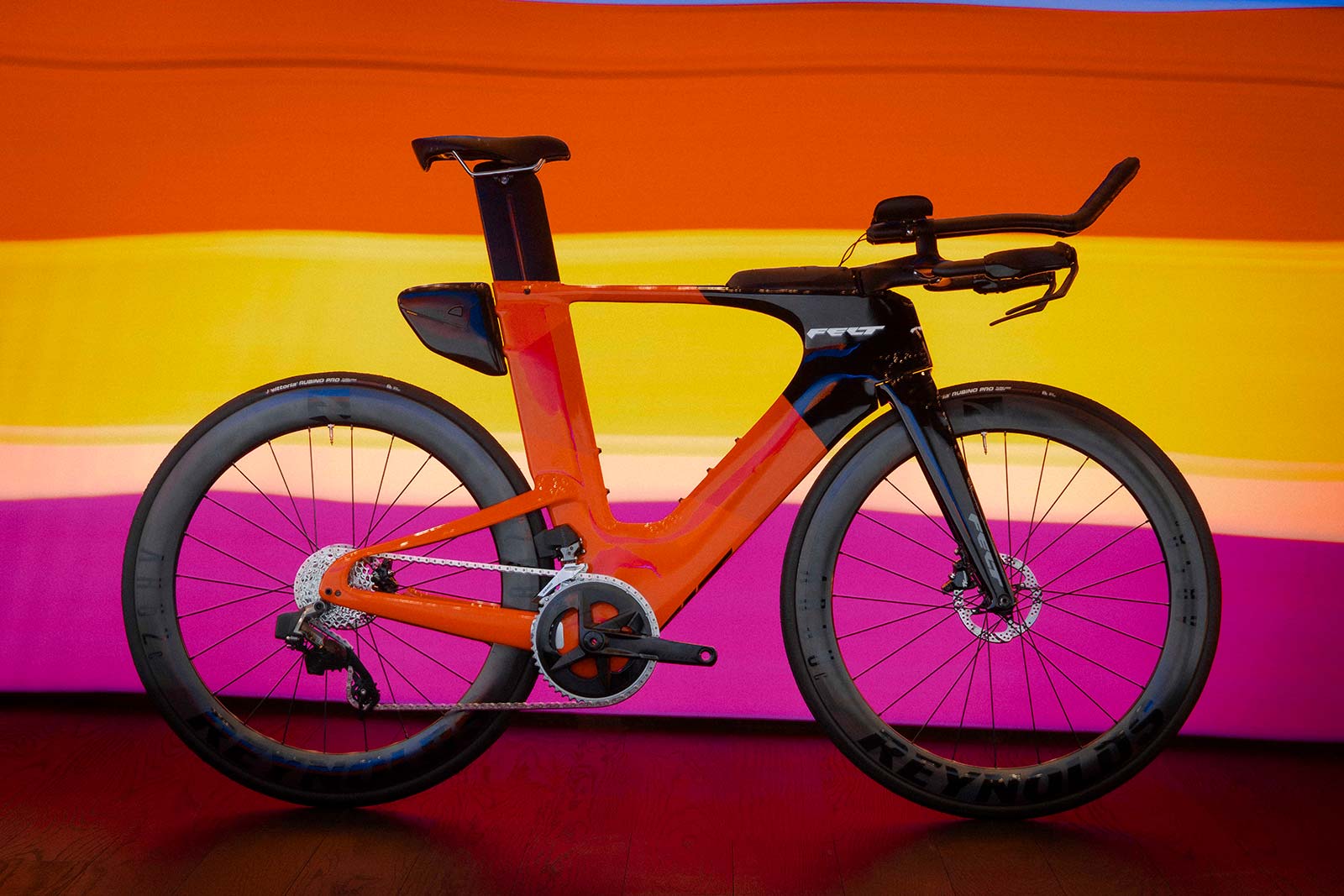

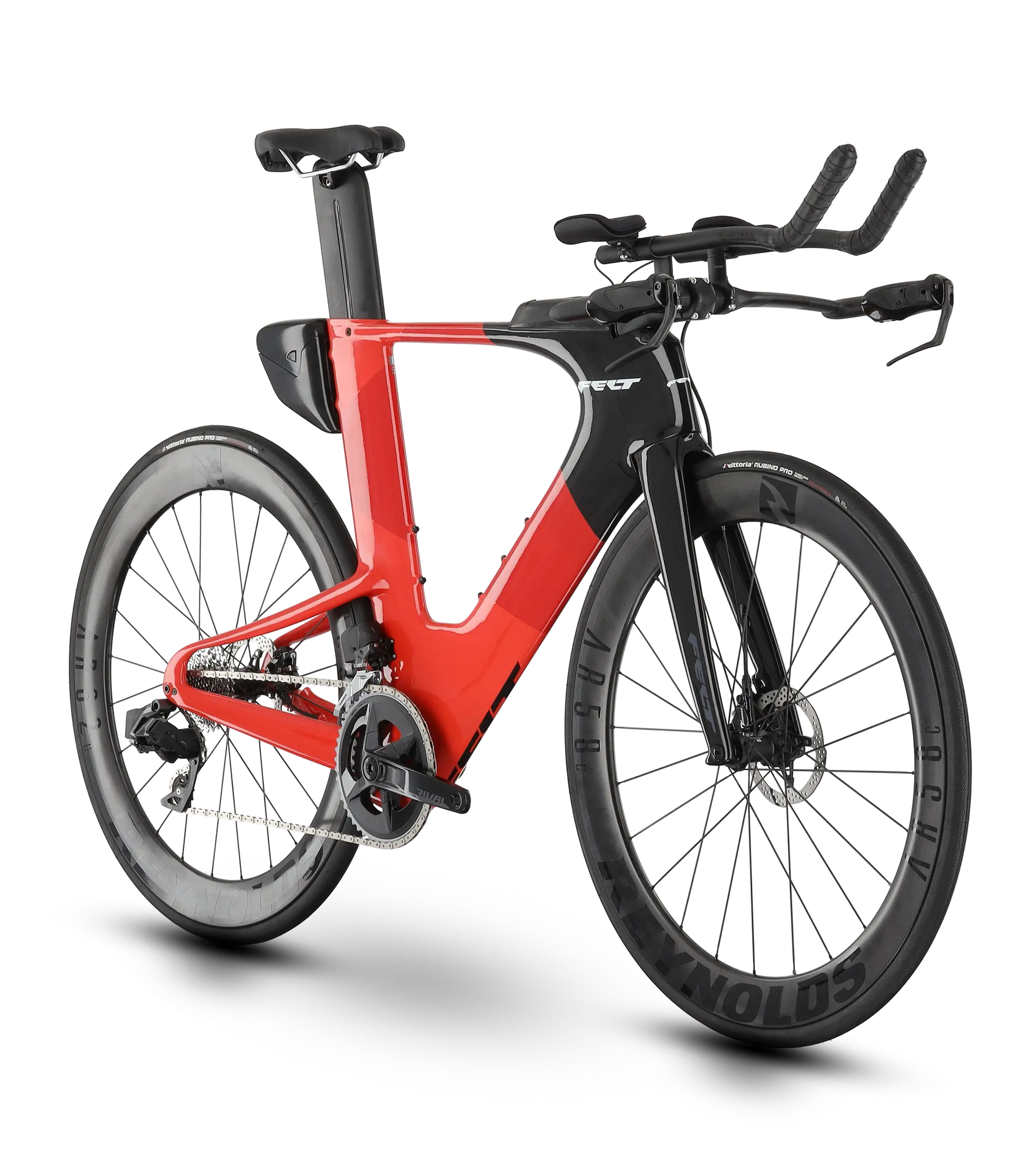

IAx Advanced | Rival eTap AXS (Hibiscus)

IAx Advanced | Rival eTap AXS (Hibiscus)

FB95024006-54

$9,495
$9,495
Sale Sold out
Included: GST, and shipping to Click & Collect locations.

Ready to deliver for your latest performance gains, the IAx sets a new standard for ease-of-use and optimal racing advantage.

Select size

Select your nearest Click & Collect store

$9,495
$9,495
Sale Sold out
Included: GST, and shipping to Click & Collect locations.

Complimentary Professional Build

Every Felt bike will be fully assembled and safety-checked by a qualified mechanic before you collect it.

Covered by Felt’s Warranty

Join thousands of riders who trust Felt. If there’s a defect in materials or workmanship, we’ll make it right.
See warranty details →

View full details

IA speed ready to rip

Felt riders have raced to countless PRs, World Champ victories, and course records on the famous IA platform. As we transitioned to the new 2.0 platform, we morphed the prior IA to eliminate the nose cone and one-piece front end to provide more fit options across a wider range of athlete levels. Still a race-ready set-up, it now offers the advantages of a streamlined and simplified design.

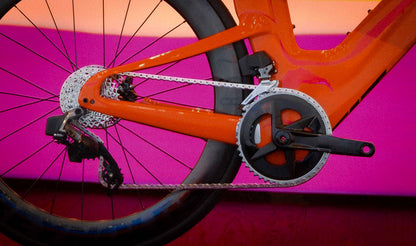

  • Precision wireless shifting

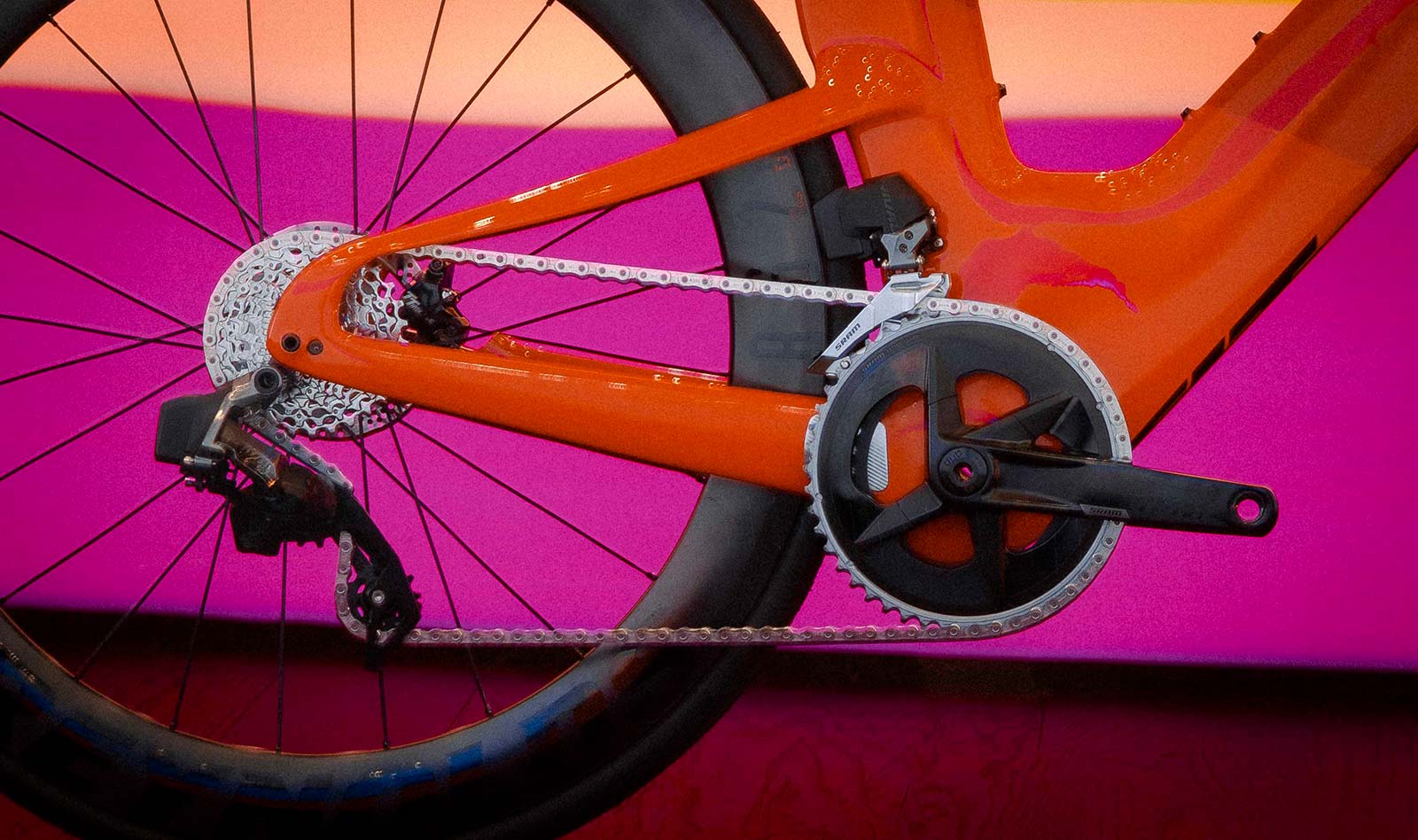

    The IAx complete with SRAM's well-appointed Rival eTap AXS groupset. The ease of wireless with the design and engineering for which SRAM is known. 12 speeds and a gear range that works for all levels of rider.

  • Ready to roll

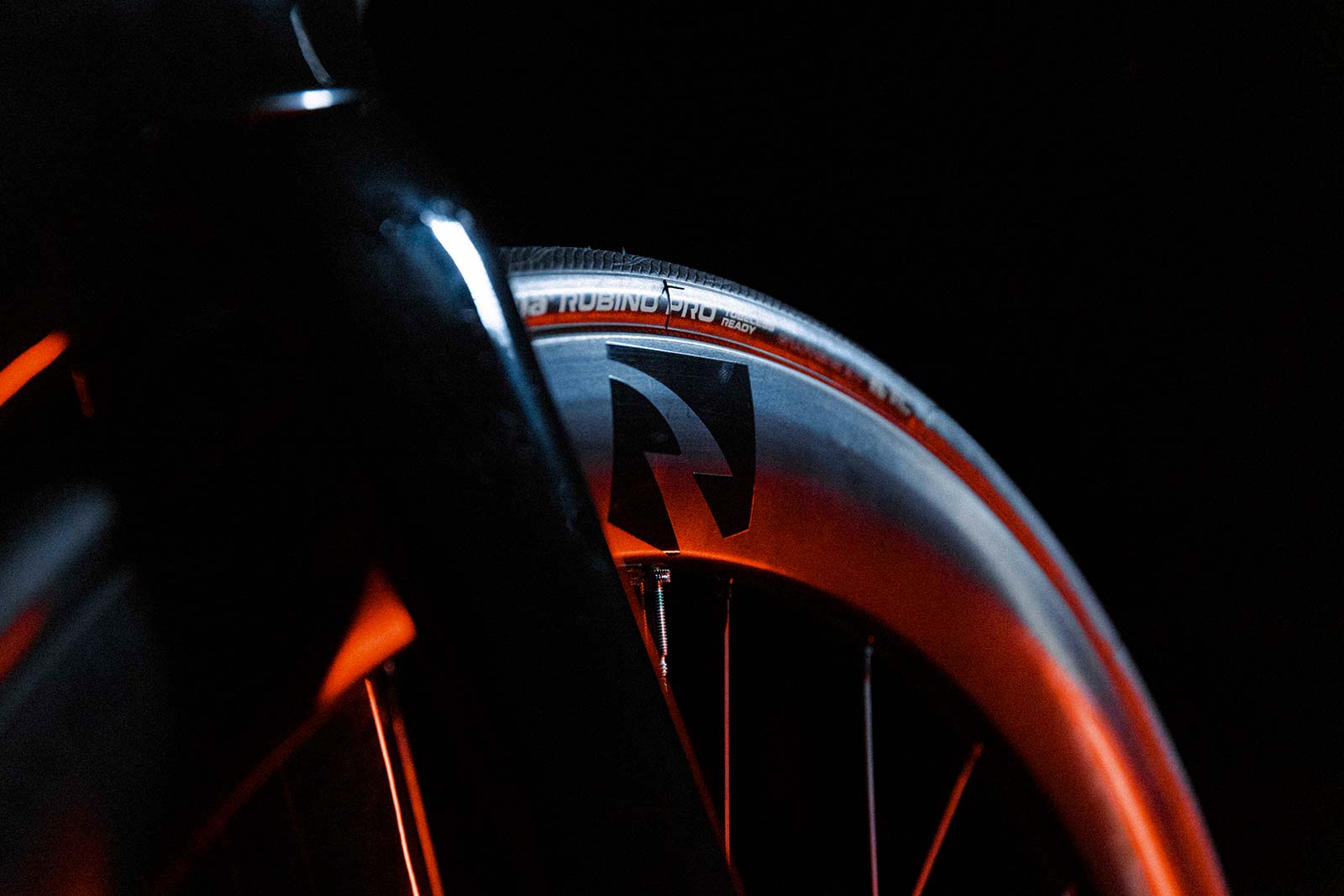

    Featuring the custom Reynolds AR58/62 DB wheelset, this bike is all about aerodynamics and ride quality across all of your triathlon training and racing. Premium Continental Grand Prix SL tyres offer a sure-footed performance.

  • Fit-friendly for you

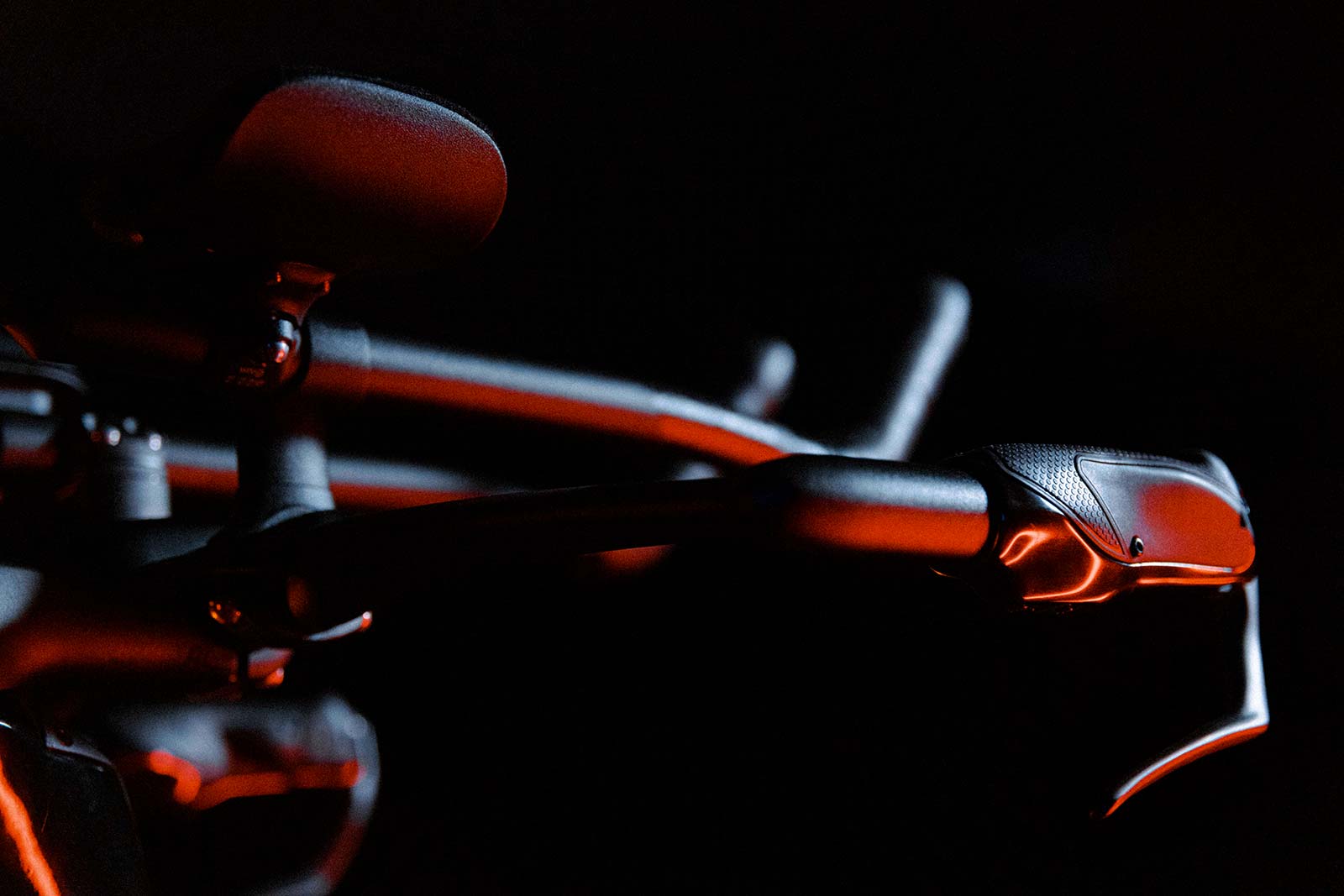

    The IAx is developed to offer an easy-to-adjust set up on your front end. Our aluminium stem, base bar, and extensions will help dial in your unique riding position for optimal performance.

1 3

SPECIFICATIONS

Frameset

Frame

Felt IAx 1.0, UHC Advanced

Fork

Felt IAx 1.0, UHC Advanced

Brakes & Drivetrain

Front Brake

TRP HD-T910, 2-piston, Hydraulic disc brake

Front Brake Rotor

TRP TR25, 140 mm, Center lock

Rear Brake

TRP HD-T910, 2-piston, Hydraulic disc brake

Rear Brake Rotor

TRP TR25, 140 mm, Center lock

Rear Derailleur

SRAM Rival eTap AXS, 24-S

Front Derailleur

SRAM Rival eTap AXS, Brazed-On

Cassette

SRAM XG-1250, 11-30 T

Crankset

SRAM Rival, DUB, 48/35 T

Wheels

Wheelset

Reynolds AR58/62 DB Custom, Tubeless ready

Tyre

Continental Grand Prix SL, 700x25

Cockpit

Handlebar

Basebar: Devox Bayonet 3.1 | SuperLite aluminum / Extensions: Devox Ergomod | aluminum

Saddle

ISM PS1.0, Satin Steel

Seat Post

Felt Aero TRI IL 1.0 VM

Additional Information

Permissible Total Weight

129 kg

Trailer Approval

No trailer approval

GEOMETRY

IAx chart
48 51 54 56 58
(A) Top Tube Length 467 mm 490 mm 510 mm 538 mm 567 mm
(B) Seat Tube Length 489 mm 512 mm 538 mm 563 mm 586 mm
(C) Seat Tube Angle 79.5° 79° 78.5° 78° 77.5°
(D) Head Tube Length 63 mm 86 mm 109 mm 134 mm 157 mm
(E) Steering Angle 71.5° 71.5° 72° 72° 72°
(G) Wheel Base 958 mm 980 mm 990 mm 1016 mm 1042 mm
(I) BB-Drop 72 mm 72 mm 72 mm 72 mm 72 mm
(K) Fork Offset 50 mm 50 mm 45 mm 45 mm 45 mm
(L) Stack 473 mm 495 mm 520 mm 544 mm 566 mm
(M) Reach 378 mm 392 mm 404 mm 421 mm 440 mm
(O) Crank Length 165 mm 165 mm 170 mm 170 mm 172.5 mm

SIZE GUIDE

47 48 51 54 56 58
Rider Height 152.4 - 167.6 cm 152.4 - 167.6 cm 167.6 - 172.7 cm 172.7 - 180.3 cm 180.3 - 187.9 cm 187.9 - 195.5 cm
Rider Inseam 70.8 - 74.4 cm 70.8 - 74.4 cm 74.4 - 77.9 cm 77.9 - 83.0 cm 83.0 - 85.8 cm 85.8 - 88.9 cm
