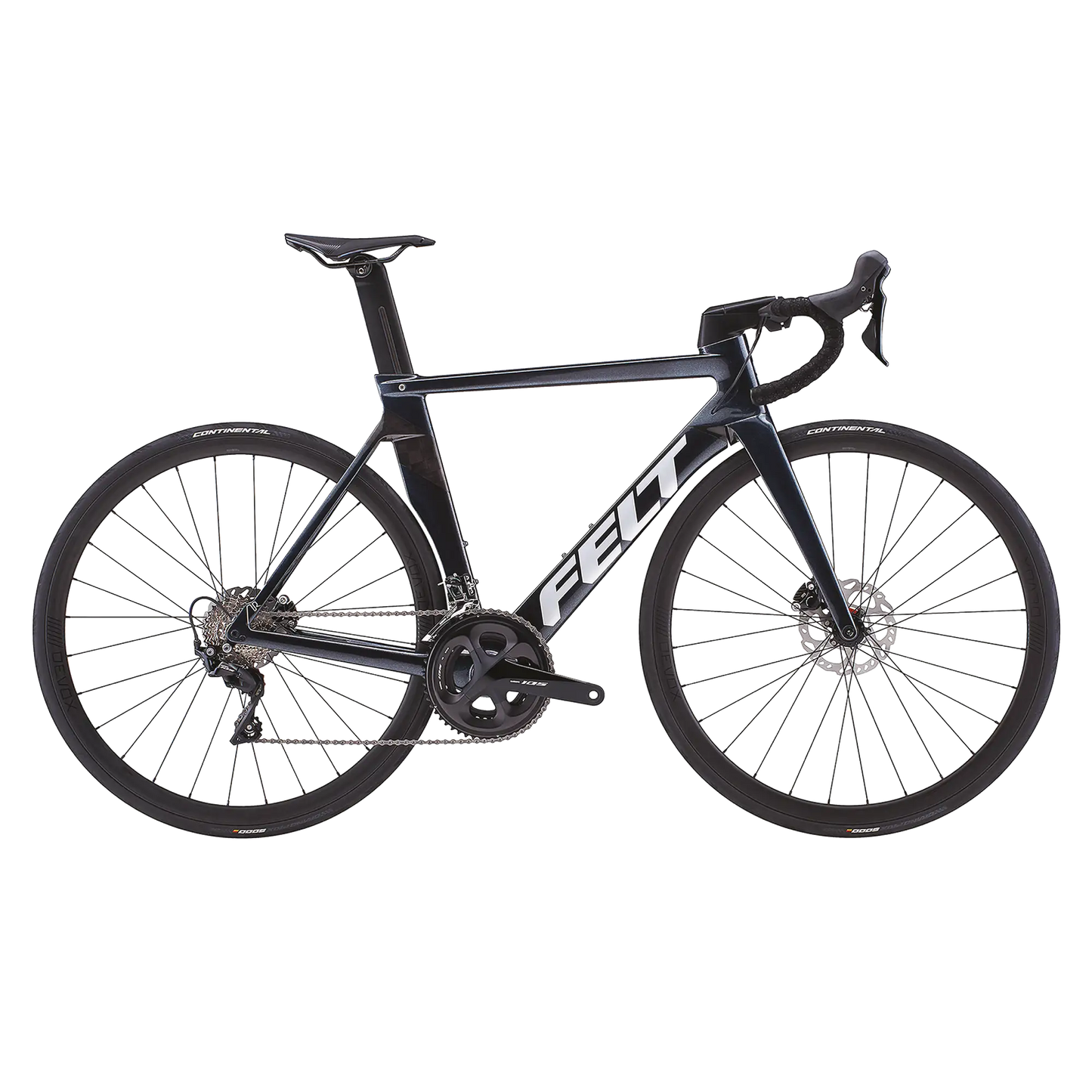

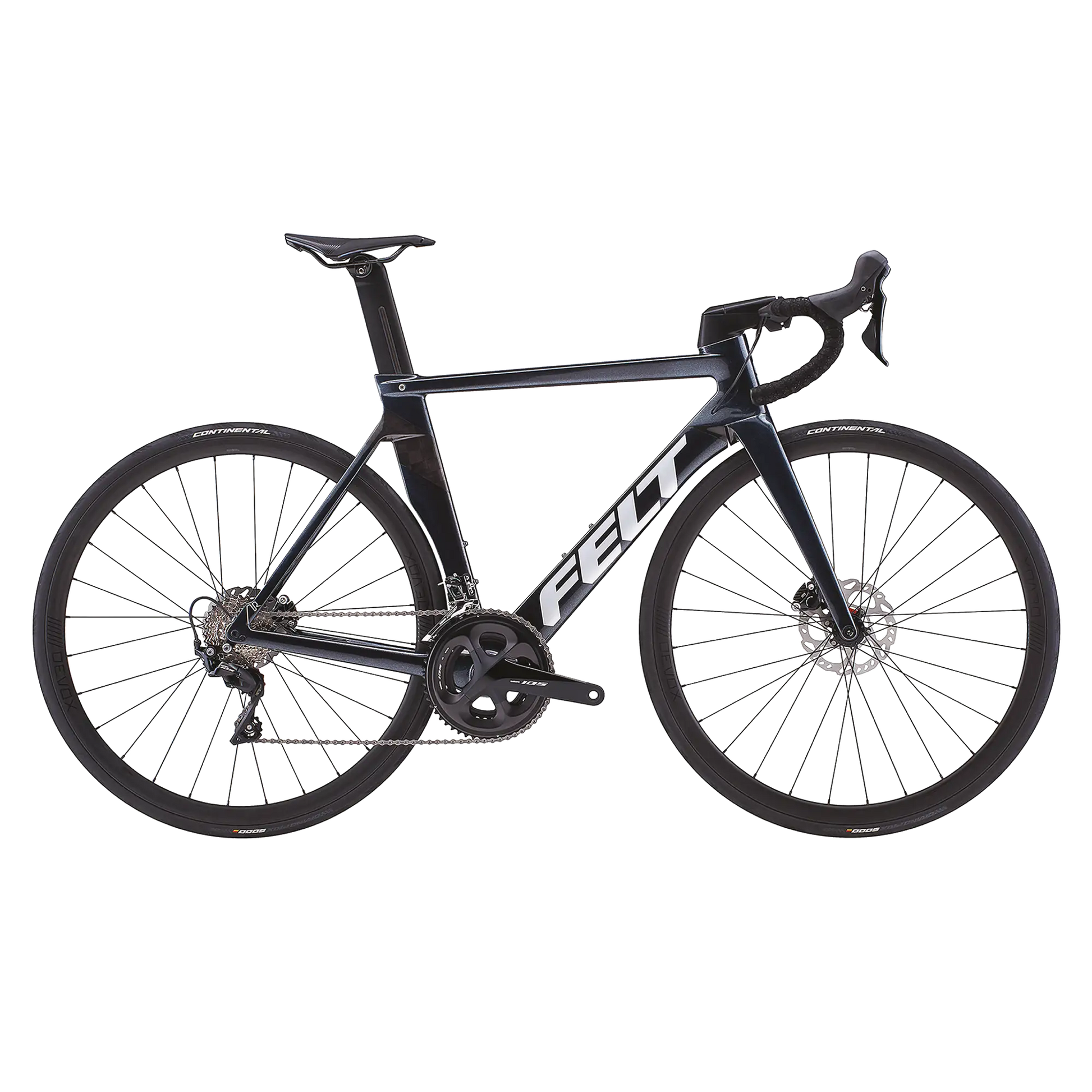

AR Advanced | 105 (Starry Night)

AR Advanced | 105 (Starry Night)

FB3002-48

$4,999
$4,999
Sale Sold out
Included: GST, and shipping to Click & Collect locations.

The Advanced-level carbon frame used by pro race teams in the most demanding events. A race rocket for those who prefer mechanical shifting.

Select size

Select your nearest Click & Collect store

$4,999
$4,999
Sale Sold out
Included: GST, and shipping to Click & Collect locations.

Complimentary Professional Build

Every Felt bike will be fully assembled and safety-checked by a qualified mechanic before you collect it.

Covered by Felt’s Warranty

Join thousands of riders who trust Felt. If there’s a defect in materials or workmanship, we’ll make it right.
See warranty details →

View full details

Race-proven. Ready for watts.

An aero race bike built with the rigors of racing in mind, the AR Advanced frameset is paired to Shimano's tried-and-true 105 mechanical group. Fast, dependable, and ready for your next attack, this is a rig that's built to go fast with a mix of cutting edge technology and pure function from Shimano.

SPECIFICATIONS

Frameset

Frame

Felt AeroRoad 3.0 | UHC Advanced + TeXtreme carbon fiber

Fork

Felt AeroRoad 3.0 | UHC Advanced + TeXtreme carbon fiber

Brakes & Drivetrain

Front Brake

Shimano 105 R7070, hydraulic disc, flat mount

Front Brake Rotor

Shimano RT70, Center Lock, 140mm

Rear Brake

Shimano 105 R7070, hydraulic disc, flat mount

Rear Brake Rotor

Shimano RT70, Center Lock, 160mm

Brake Lever

Shimano ST-R7120

Rear Derailleur

Shimano 105 R7000, short cage

Front Derailleur

Shimano 105 R7000, braze-on

Cassette

Shimano 105 R7000, 11-30T

Chain

Shimano 105 HG601

Crankset

Shimano 105 R7000, 52/36T

Shift Lever

43, 47cm - Shimano 105 R7025 Short-Reach / 51, 54, 56, 58, 61cm - Shimano 105 R7020

Wheels

Wheelset

Devox WheelRDS.A1, Center lock, 12x100/12x142 mm, thru axle

Front Wheel

Devox Wheel RDS.A1 | 30/19, Shimano hubs

Rear Wheel

Devox Wheel RDS.A1 | 30/19, Shimano hubs

Tyre

Continental Grand Sport Race, 700x25c

Cockpit

Stem

Felt Sprint | UHC Advanced carbon fiber

Headset

IS (NO.44)

Handlebar

Devox DBar.A1

Bar Tape

Felt VelvetGel tape with 3M reflective base and Felt Bubble-Tech F-Wing bar end plugs

Saddle

Prologo Dimension 143 T4.0

Seat Post

Felt AeroRoad IL 2.0 | UHC Advanced + TeXtreme carbon fiber

Additional Information

Permissible Total Weight

129 kg

Trailer Approval

No trailer approval

GEOMETRY

AR chart
48 51 54 56 58 61
(A) Top Tube Length 509 mm 529 mm 543 mm 560 mm 580 mm 605 mm
(B) Seat Tube Length 441 mm 473 mm 502.5 mm 526 mm 553 mm 601 mm
(C) Seat Tube Angle 74.3° 74.4° 73.5° 73.5° 73.5° 73°
(D) Head Tube Length 97 mm 111 mm 130 mm 150 mm 167 mm 197.5 mm
(E) Steering Angle 71° 72.1° 73° 73.5° 73.5° 73°
(F) Chain Stay Length 408 mm 408 mm 410 mm 410 mm 410 mm 412 mm
(G) Wheel Base 974 mm 977 mm 980 mm 988 mm 1003 mm 1024 mm
(H) Standover Height 705 mm 734 mm 760 mm 780 mm 807 mm 845 mm
(I) BB-Drop 72 mm 70 mm 70 mm 70 mm 70 mm 70 mm
(K) Fork Offset 52 mm 47 mm 47 mm 43 mm 43 mm 43 mm
(L) Stack 501 mm 518 mm 539 mm 561 mm 579 mm 608 mm
(M) Reach 370 mm 381 mm 383 mm 394 mm 408 mm 419 mm
(N) Stem Length 90 mm 90 mm 100 mm 100 mm 110 mm 120 mm
(O) Crank Length 165 mm 170 mm 172.5 mm 172.5 mm 175 mm 175 mm

SIZE GUIDE

43 45 47 48 51 54 56 58 61
Rider Height 144.7 - 152.4 cm 144.7 - 152.4 cm 152.4 - 167.6 cm 152.4 - 167.6 cm 167.6 - 172.7 cm 172.7 - 177.8 cm 177.8 - 182.8 cm 182.8 - 187.9 cm 187.9 - 195.5 cm
Rider Inseam 67.3 - 71.2 cm 67.3 - 71.2 cm 71.2 - 74.9 cm 71.2 - 74.9 cm 75.1 - 76.2 cm 77.9 - 82.0 cm 81.0 - 85.0 cm 84.0 - 87.1 cm 87.3 - 91.1 cm
