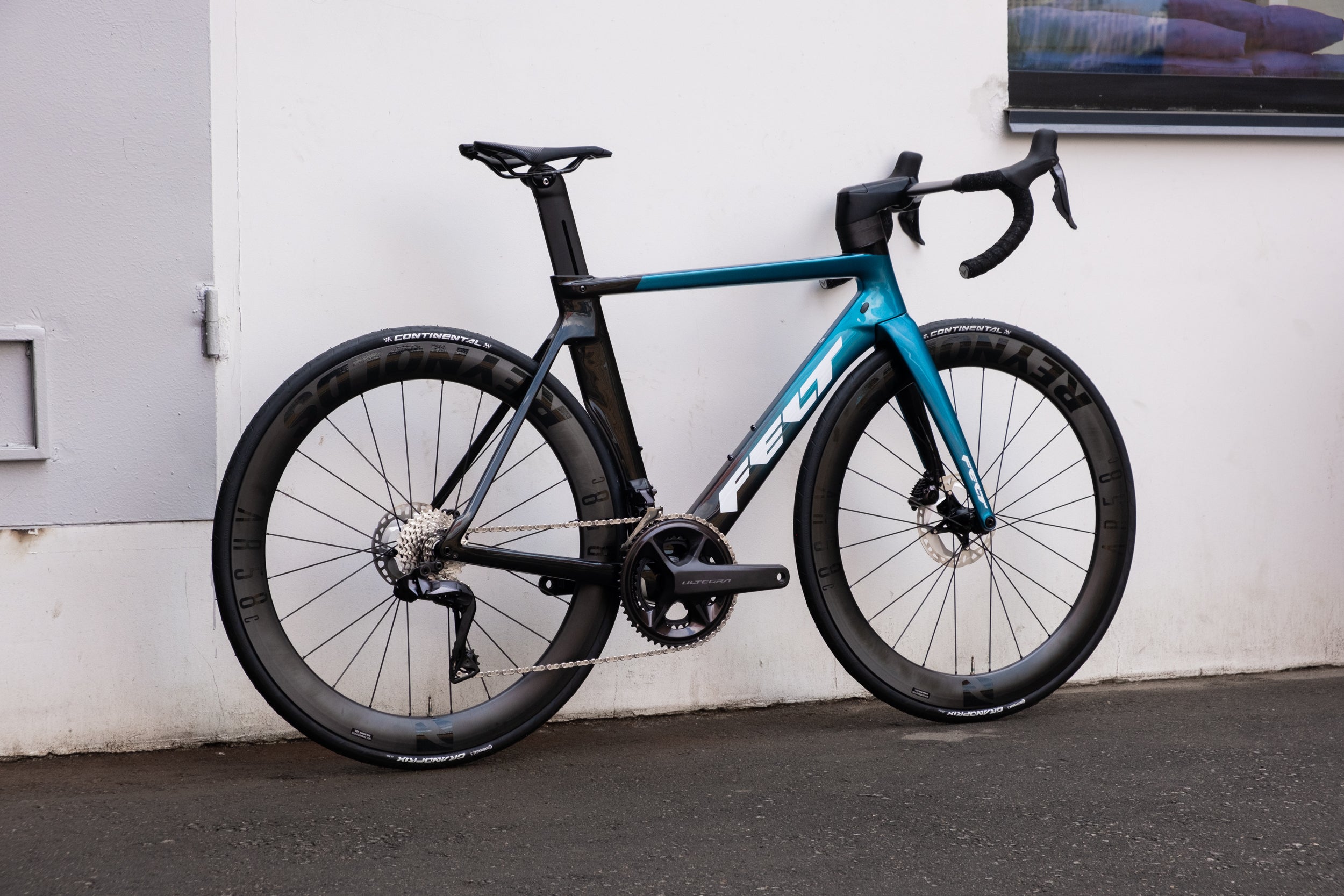

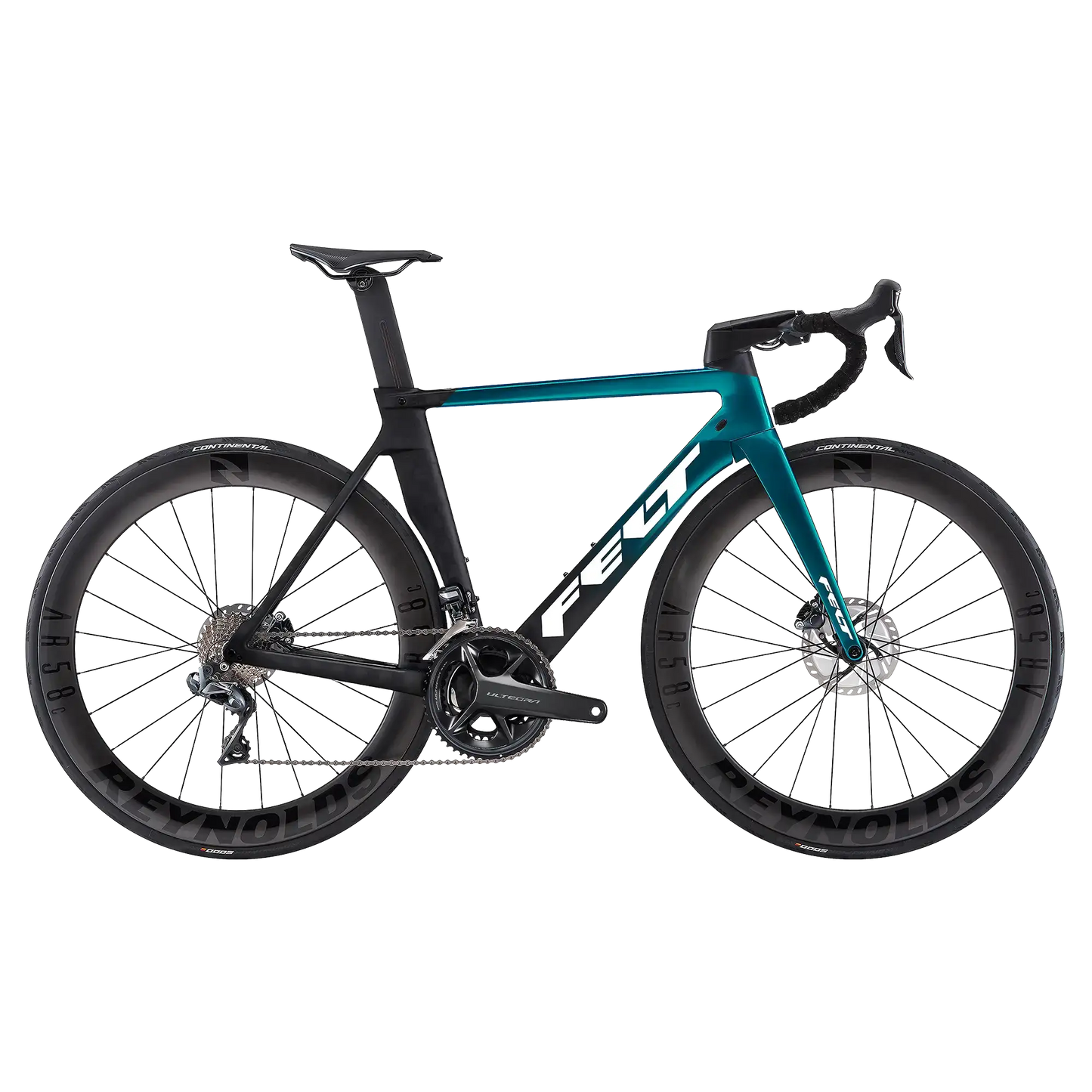

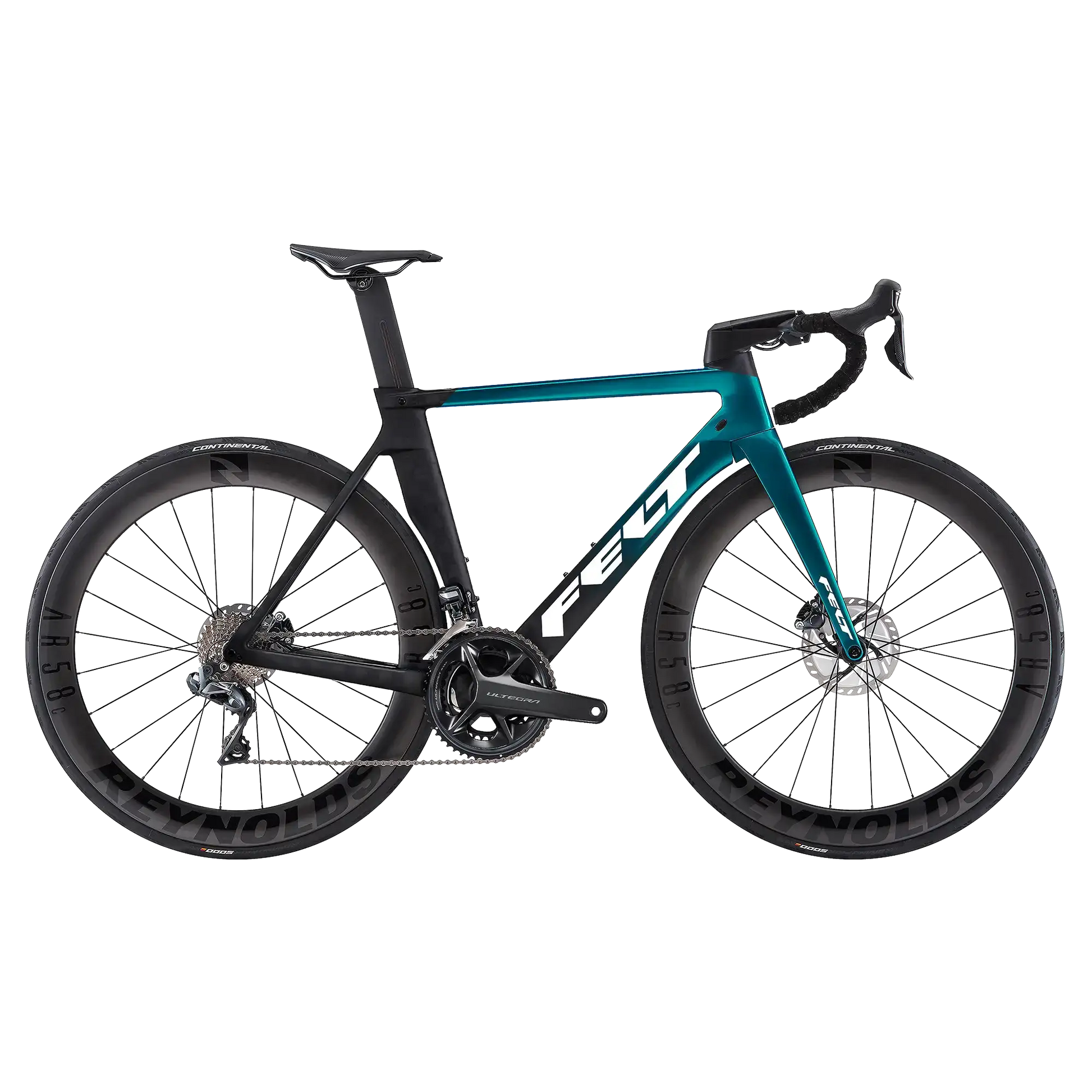

AR Advanced | Ultegra Di2 (Bay Blue)

AR Advanced | Ultegra Di2 (Bay Blue)

FB94024013-51

$9,499
$9,499
Sale Sold out
Included: GST, and shipping to Click & Collect locations.

The Advanced level carbon AR delivers aero efficiency and racing prowess combined with the exceptional performance of Shimano Ultegra Di2.

Select size

Select your nearest Click & Collect store

$9,499
$9,499
Sale Sold out
Included: GST, and shipping to Click & Collect locations.

Complimentary Professional Build

Every Felt bike will be fully assembled and safety-checked by a qualified mechanic before you collect it.

Covered by Felt’s Warranty

Join thousands of riders who trust Felt. If there’s a defect in materials or workmanship, we’ll make it right.
See warranty details →

View full details

AERO-OPTIMISED FOR SPEED

Designed to cheat the wind and for hardcore riding, the AR is a dynamic bike willing to go the distance with whatever you can throw its way, whether that's driving the breakaway or positioning yourself for the final sprint. Shimano's impressive Ultegra Di2 groupset, now with 12-speeds, merges with the performance benefits that our aero frame offers. Ready. Set. Go.

  • PRECISION SHIFTING FROM SHIMANO

    Shimano's 12-speed Ultegra Di2 brings crisp shifting and dynamic functionality for performance-oriented riders. Improved ergonomics and a wireless cock-pit improve on Shimano's already impressive groupset in this latest generation.

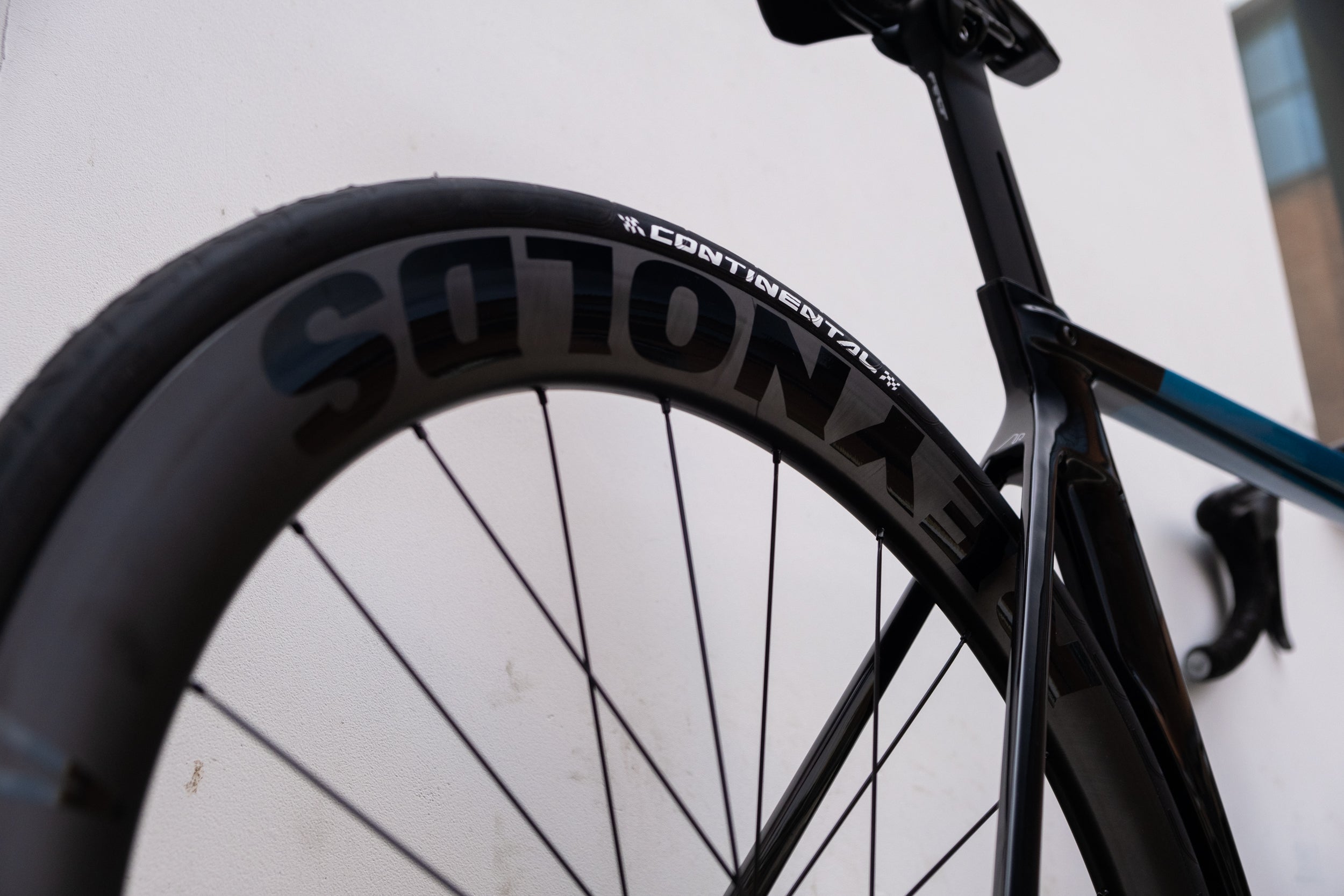

  • AERO WHEELSET IS RACE-READY

    Reynolds AR58 DB Custom wheels with Continental Grand Prix SL tires offer a wind-cheating aero profile and great ride feel to keep performance front and center. Confidently rip some technical corners and launch yourself into the break in style.

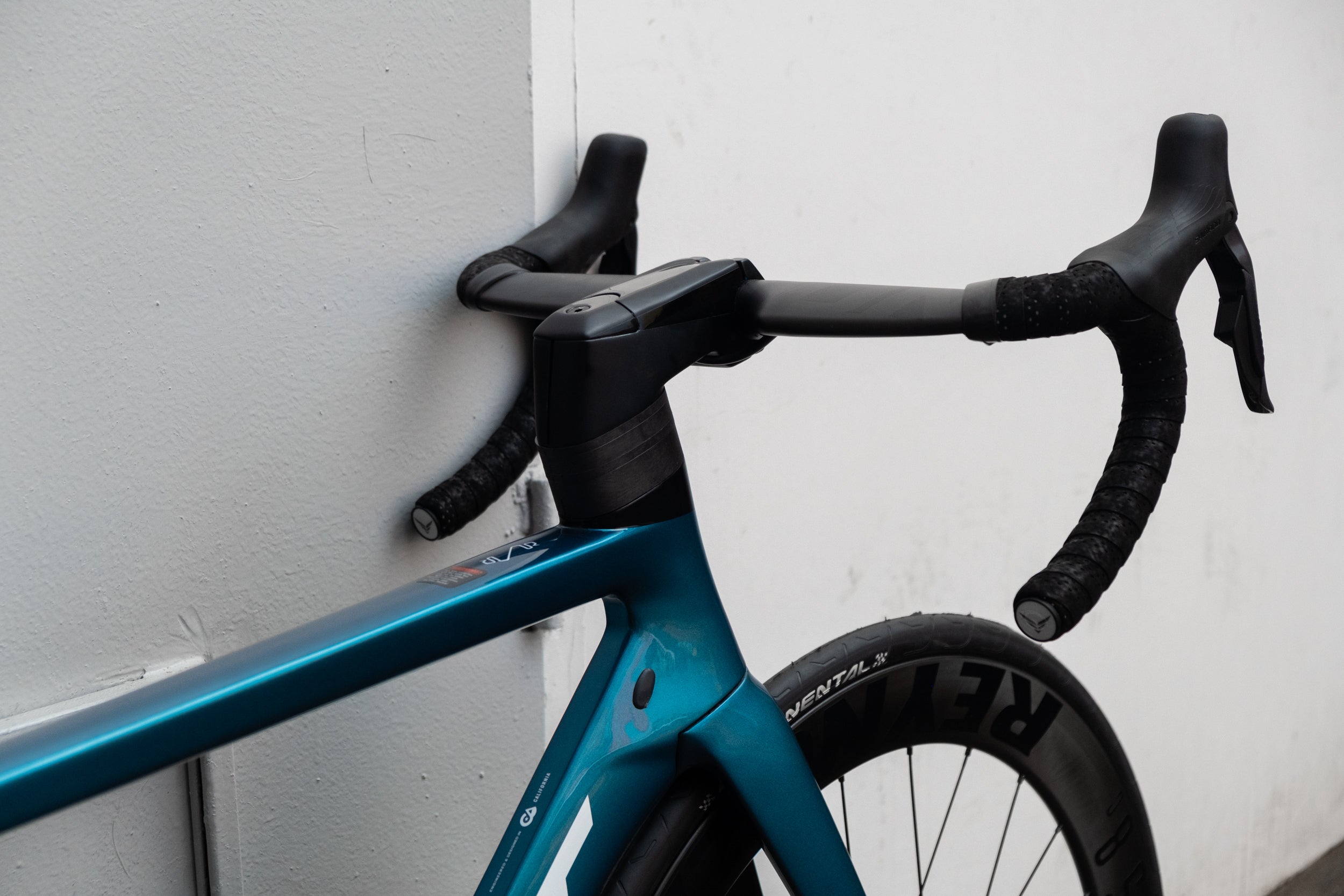

  • DIAL IN YOUR COCKPIT

    The Devox DBar.C0 Aero completes the Shimano assortment, ensuring a clean, ergonomic, and race-inspired front end for the AR. Easy to adjust with a separate handlebar and stem, the AR front-end is purpose-built for your riding needs.

1 3

SPECIFICATIONS

Frameset

Frame

Felt AR 3.0, UHC Advanced + TeXtreme carbon

Fork

Felt AR 3.0, UHC Ultimate + TeXtreme carbon

Brakes & Drivetrain

Front Brake

Shimano BR-R8170, 2-piston, Hydraulic disc brake

Front Brake Rotor

Shimano RT-MT800, 160 mm, Center lock

Rear Brake

Shimano BR-R8170, 2-piston, Hydraulic disc brake

Rear Brake Rotor

Shimano RT-MT800, 140 mm, Center lock

Rear Derailleur

Shimano Ultegra Di2, RD-R8150, Shadow, 24-S

Front Derailleur

Shimano Ultegra Di2, FD-R8150

Cassette

Shimano CS-R8100, 11-30 T

Chain

Shimano CN-M8100

Crankset

Shimano Ultegra, FC-R8100, 52/36 T

Shift Lever

Shimano Ultegra Di2, ST-R8170

Wheels

Wheelset

Reynolds AR58 DB Custom, Tubeless ready, Center lock, 12x100/12x142 mm

Tyre

Continental Grand Prix SL, 700x25

Cockpit

Stem

Felt Sprint, -6 °

Headset

IS (NO.44)

Handlebar

48, 51 cm: Devox DBar.C0 Aero 31.8 mm, 400 mm, 54, 56, 58, 61 cm: Devox DBar.C0 Aero 31.8 mm, 420 mm

Bar Tape

Felt VelvetGel tape with 3M reflective base and Felt Bubble-Tech F-Wing bar end plugs

Saddle

Prologo Dimension 143 T4.0

Seat Post

Felt AeroRoad IL 2.0, 350 mm

Additional Information

Permissible Total Weight

129 kg

Trailer Approval

No trailer approval

GEOMETRY

AR chart
48 51 54 56 58 61
(A) Top Tube Length 509 mm 529 mm 543 mm 560 mm 580 mm 605 mm
(B) Seat Tube Length 441 mm 473 mm 502.5 mm 526 mm 553 mm 601 mm
(C) Seat Tube Angle 74.3° 74.4° 73.5° 73.5° 73.5° 73°
(D) Head Tube Length 97 mm 111 mm 130 mm 150 mm 167 mm 197.5 mm
(E) Steering Angle 71° 72.1° 73° 73.5° 73.5° 73°
(F) Chain Stay Length 408 mm 408 mm 410 mm 410 mm 410 mm 412 mm
(G) Wheel Base 974 mm 977 mm 980 mm 988 mm 1003 mm 1024 mm
(H) Standover Height 705 mm 734 mm 760 mm 780 mm 807 mm 845 mm
(I) BB-Drop 72 mm 70 mm 70 mm 70 mm 70 mm 70 mm
(K) Fork Offset 52 mm 47 mm 47 mm 43 mm 43 mm 43 mm
(L) Stack 501 mm 518 mm 539 mm 561 mm 579 mm 608 mm
(M) Reach 370 mm 381 mm 383 mm 394 mm 408 mm 419 mm
(N) Stem Length 90 mm 90 mm 100 mm 100 mm 110 mm 120 mm
(O) Crank Length 165 mm 170 mm 172.5 mm 172.5 mm 175 mm 175 mm

SIZE GUIDE

43 45 47 48 51 54 56 58 61
Rider Height 144.7 - 152.4 cm 144.7 - 152.4 cm 152.4 - 167.6 cm 152.4 - 167.6 cm 167.6 - 172.7 cm 172.7 - 177.8 cm 177.8 - 182.8 cm 182.8 - 187.9 cm 187.9 - 195.5 cm
Rider Inseam 67.3 - 71.2 cm 67.3 - 71.2 cm 71.2 - 74.9 cm 71.2 - 74.9 cm 75.1 - 76.2 cm 77.9 - 82.0 cm 81.0 - 85.0 cm 84.0 - 87.1 cm 87.3 - 91.1 cm
