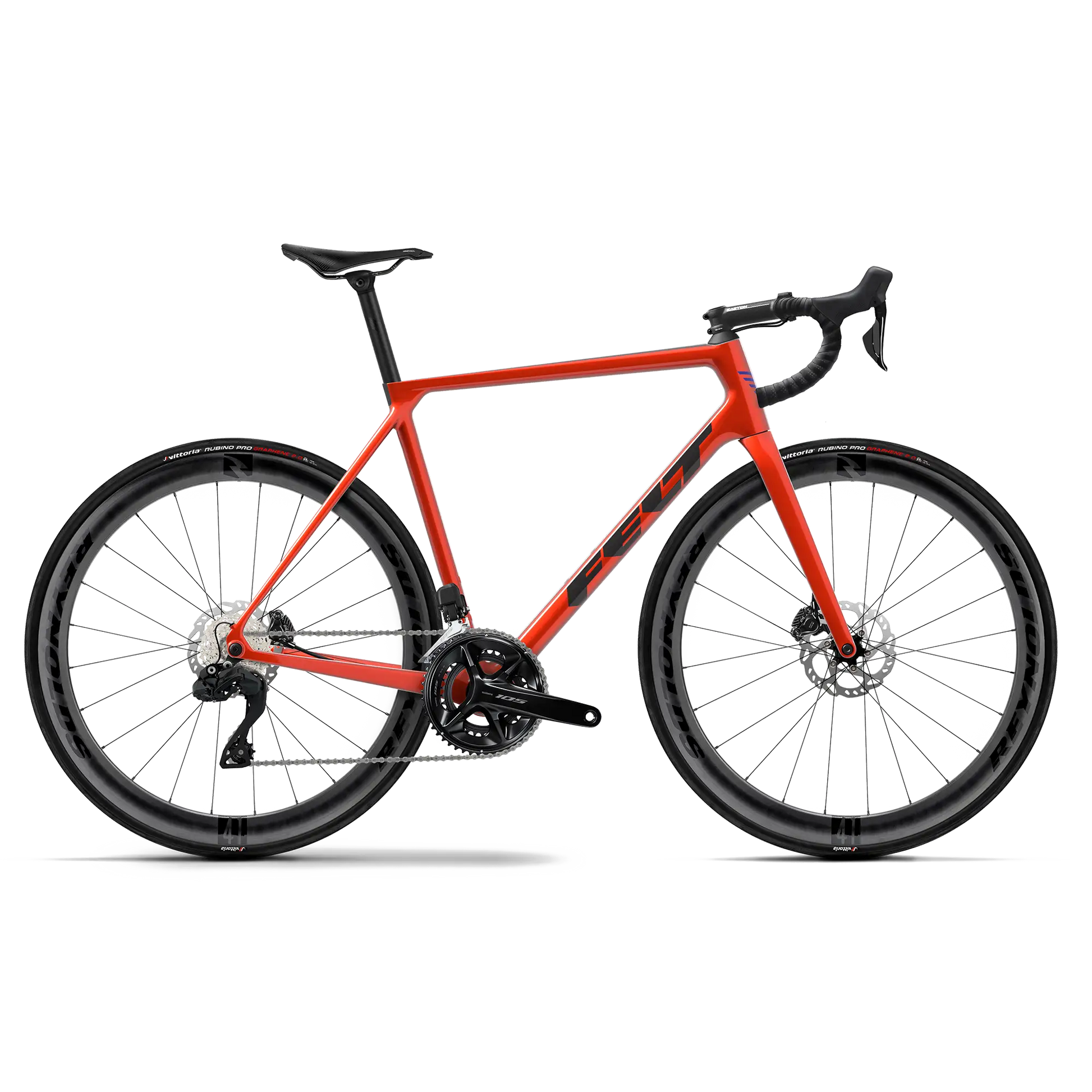

FR Advanced |105 Di2 (Fast Orange)

FR Advanced |105 Di2 (Fast Orange)

FB94024030-48

$6,999
$6,999
Sale Sold out
Included: GST, and shipping to Click & Collect locations.

The new FR outfitted with Shimano's exciting new 105 Di2 group. With semi-wireless shifting and full Shimano performance at a great price.

Select size

Select your nearest Click & Collect store

$6,999
$6,999
Sale Sold out
Included: GST, and shipping to Click & Collect locations.

Complimentary Professional Build

Every Felt bike will be fully assembled and safety-checked by a qualified mechanic before you collect it.

Covered by Felt’s Warranty

Join thousands of riders who trust Felt. If there’s a defect in materials or workmanship, we’ll make it right.
See warranty details →

View full details

Podium performer

The new FR Advanced comes equipped with Shimano's new 12-speed 105 Di2 component group. With a great shifting range and a performance build, tackle local races, granfondos, or Strava routes with extra speed. Spec'd with a great Reynolds wheelset you'll be seeking out the hard rides just to show your competition what you've got. Traditional bar/stem combo will allow for easy fit adjustments.

  • Ups and downs

    The compact crankset and wide cassette range of the Shimano 105 drivetrain gives you a good top and low-range gear set-up to tackle varied terrain. With 12-speeds, you'll be able to settle in to the right rhythm on your races and training rides.

  • Internal Routing

    The new FR frame allows for clean cable management, even with a traditional bar and stem combination.

  • Performance wheels

    Reynolds AR41 DB Custom carbon wheels are quick, durable, and provide a great connection to the road for precise handling. Easy to set up as tubeless, you'll be able to quickly tune your ideal ride.

1 3

SPECIFICATIONS

Frameset

Frame

Felt FR 4.0, UHC Advanced carbon

Fork

Felt FR 4.0, UHC Advanced carbon

Brakes & Drivetrain

Front Brake

Shimano BR-R7170, 2-piston, Hydraulic disc brake

Front Brake Rotor

Shimano SM-RT70, 160 mm, Center lock

Rear Brake

Shimano BR-R7170, 2-piston, Hydraulic disc brake

Rear Brake Rotor

Shimano SM-RT70, 160 mm, Center lock

Rear Derailleur

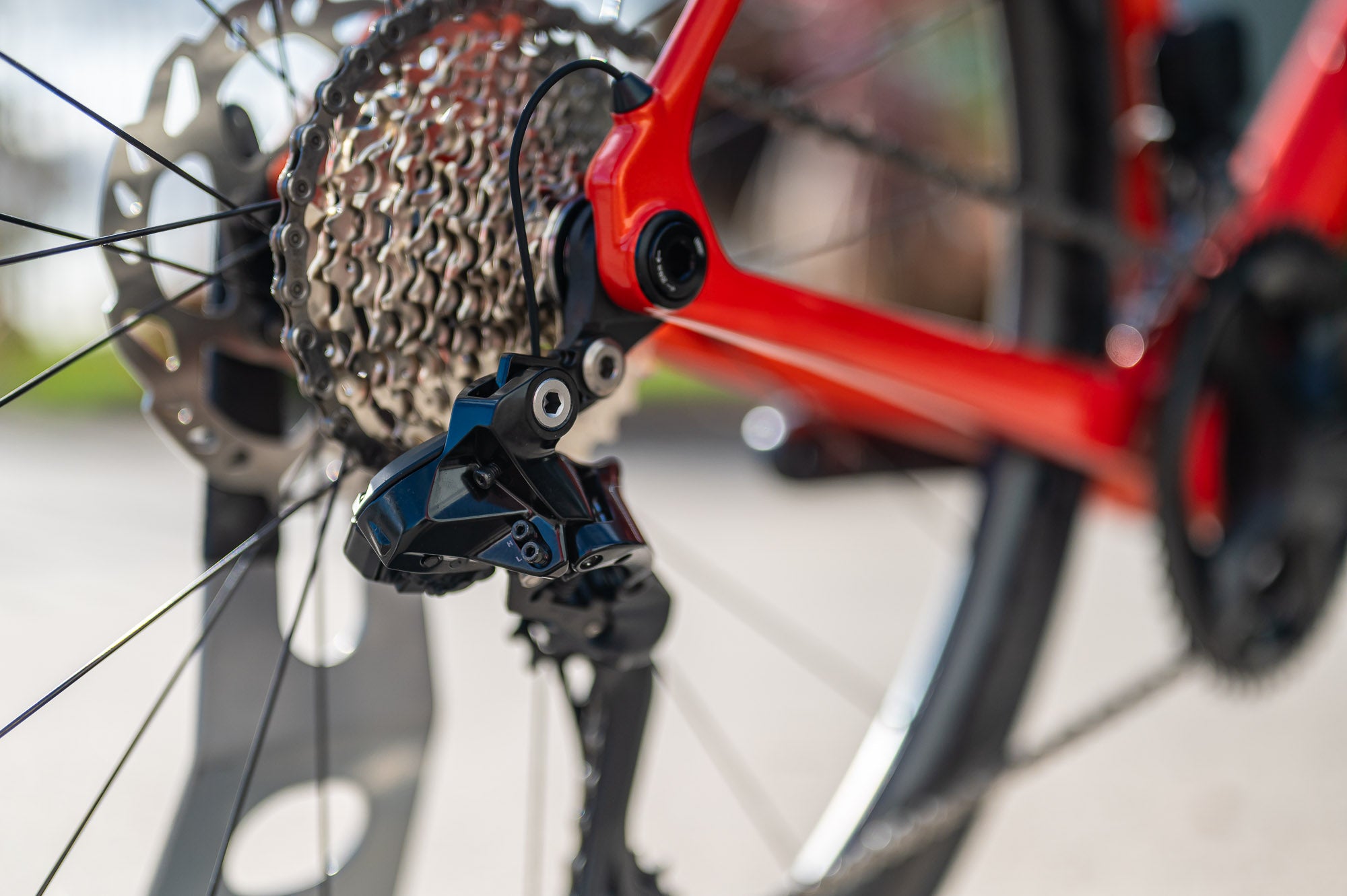

Shimano 105 Di2, RD-R7150, 24-S

Front Derailleur

Shimano 105 Di2, FD-R7150

Cassette

Shimano 105 CS-R7101, 11-34 T

Chain

Shimano CN-HG7100

Crankset

Shimano 105, FC-R7100, 50/34 T

Shift Lever

Shimano 105 Di2, ST-R7170

Wheels

Wheelset

Reynolds AR41 DB Custom, Tubeless ready, Center lock, 12x100/12x142 mm

Tyre

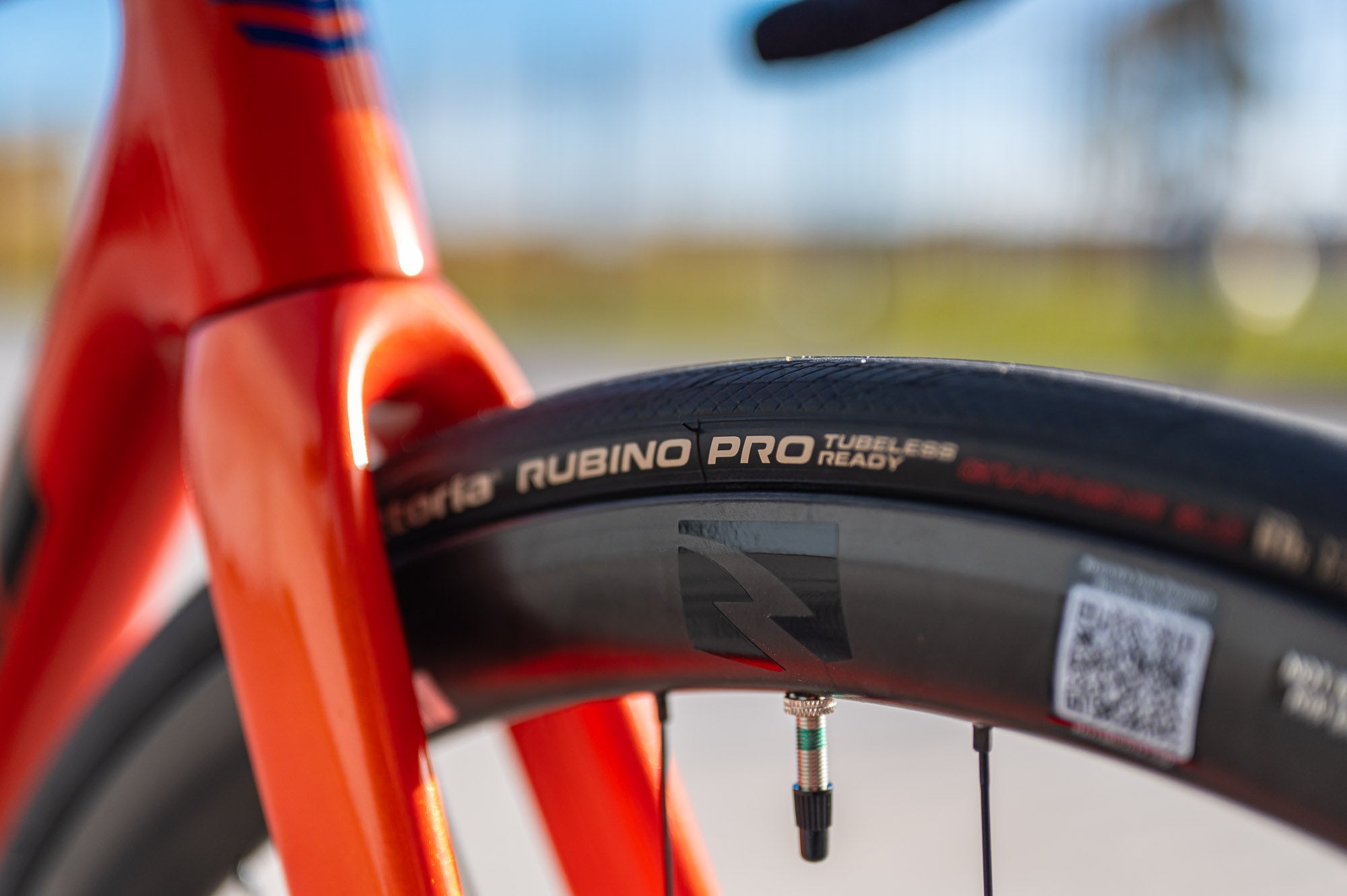

Vittoria Rubino Pro IV, 700x28

Cockpit

Stem

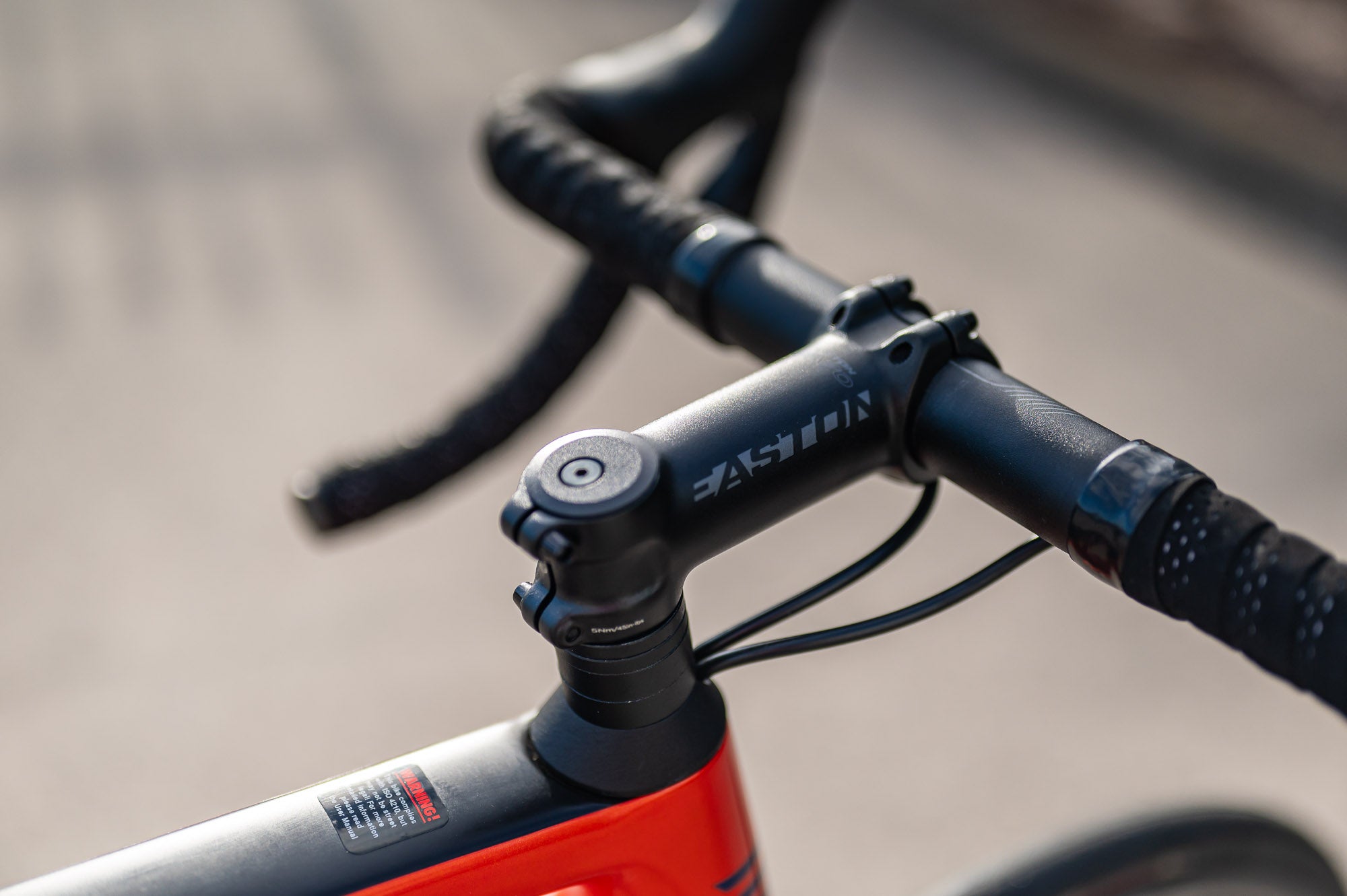

Easton AL

Headset

IS (NO.42)

Handlebar

Devox DBar.A1

Bar Tape

Felt VelvetGel tape with 3M reflective base

Saddle

Prologo Dimension 143 T4.0

Seat Post

Devox Post.C2

Additional Information

Permissible Total Weight

129 kg

Trailer Approval

No trailer approval

GEOMETRY

FR chart
45 48 51 54 56 58 61
(A) Top Tube Length 494.8 mm 512 mm 526.2 mm 546.6 mm 558.1 mm 581.4 mm 600.3 mm
(B) Seat Tube Length 405 mm 426 mm 467 mm 507 mm 527 mm 558 mm 594.6 mm
(C) Seat Tube Angle 75.3° 74.5° 74° 73.5° 73.5° 73.3° 73°
(D) Head Tube Length 90 mm 100 mm 115 mm 135 mm 155 mm 177 mm 205 mm
(E) Steering Angle 70.5° 71.5° 72.4° 72.6° 73.2° 73.8° 73.8°
(F) Chain Stay Length 406 mm 406 mm 406 mm 408 mm 408 mm 410 mm 410 mm
(G) Wheel Base 967.4 mm 969.4 mm 971.4 mm 982.1 mm 988.2 mm 1005.3 mm 1020.4 mm
(H) Standover Height 704 mm 720.6 mm 750 mm 782 mm 802 mm 827.9 mm 860.8 mm
(I) BB-Drop 74 mm 74 mm 74 mm 72 mm 72 mm 72 mm 72 mm
(J) BB Height 266.3 mm 266.3 mm 266.3 mm 268.3 mm 268.3 mm 268.3 mm 268.3 mm
(K) Fork Offset 51 mm 51 mm 51 mm 45 mm 45 mm 45 mm 45 mm
(L) Stack 496.2 mm 509.2 mm 526.6 mm 546.2 mm 567.3 mm 590.5 mm 617.4 mm
(M) Reach 364.6 mm 370.8 mm 375.2 mm 384.8 mm 390 mm 404.2 mm 411.5 mm
(N) Stem Length 100 mm 100 mm 100 mm 100 mm 100 mm 110 mm 120 mm
(O) Crank Length 167.5 mm 167.5 mm 170 mm 172.5 mm 172.5 mm 175 mm 175 mm

SIZE GUIDE

43 45 47 48 51 54 56 58 61
Rider Height 144.7 - 152.4 cm 144.7 - 152.4 cm 152.4 - 167.6 cm 152.4 - 167.6 cm 167.6 - 172.7 cm 172.7 - 177.8 cm 177.8 - 182.8 cm 182.8 - 187.9 cm 187.9 - 195.5 cm
Rider Inseam 67.3 - 71.2 cm 67.3 - 71.2 cm 71.2 - 74.9 cm 71.2 - 74.9 cm 75.1 - 76.2 cm 77.9 - 82.0 cm 81.0 - 85.0 cm 84.0 - 87.1 cm 87.3 - 91.1 cm
