FR Advanced | Ultegra Di2 (Lightning White)

FR Advanced | Ultegra Di2 (Lightning White)

FB94124003-48

$9,699
$9,699
Sale Sold out
Included: GST, and shipping to Click & Collect locations.

The all-new FR platform equipped with Shimano Ultegra Di2 groupset and an integrated carbon stem and handlebar offering a clean look.

Select size

Select your nearest Click & Collect store

$9,699
$9,699
Sale Sold out
Included: GST, and shipping to Click & Collect locations.

Complimentary Professional Build

Every Felt bike will be fully assembled and safety-checked by a qualified mechanic before you collect it.

Covered by Felt’s Warranty

Join thousands of riders who trust Felt. If there’s a defect in materials or workmanship, we’ll make it right.
See warranty details →

View full details

Road racing performance

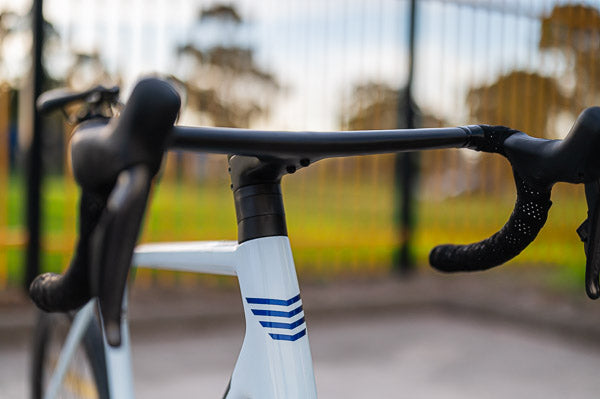

The new FR Advanced is our latest road racing platform with this build featuring Shimano's Ultegra Di2 semi-wireless groupset and its 12-speeds of optimized shifting performance. With a great wheelset primed for hard efforts and flawless handling, you've got an agile road rig that's a true all-around performer. Its integrated front-end is our own version offering a clean look and aero function.

  • Flawless shifting

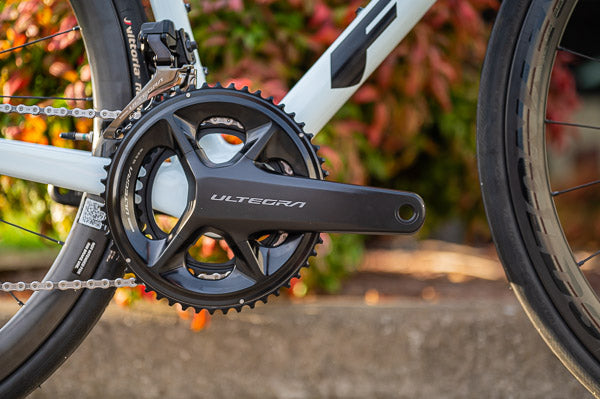

    Shimano offers world-class shifting performance and lever ergonomics designed to perform. The mid-compact 52x36 crankset paired with a wide-range 11x30 cassette will give options over varied terrain.

  • Bottom Bracket

    All FR Advanced framesets feature the T47a bottom bracket standard. Threaded bottom bracket shells reduce creaking, are easy to service, and protect the frame in the event of a dropped chain.

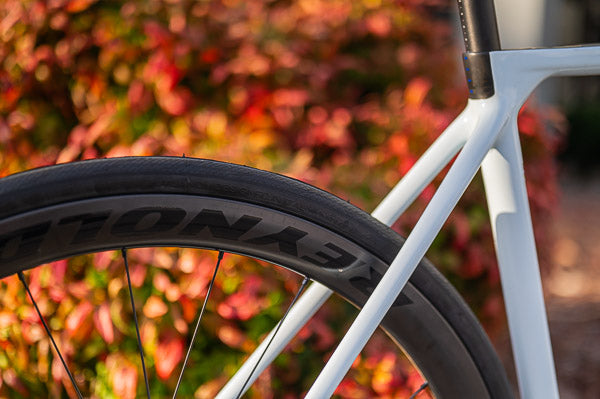

  • Aero wheels

    Reynolds offers some of the fastest-rolling, most aero wheels in the market. Known for their build quality, stability, and overall durability, the AR41 wheels provide some wind-cheating speed and top-level performance.

1 3

SPECIFICATIONS

Frameset

Frame

Felt FR 4.0, UHC Advanced carbon

Fork

Felt FR 4.0, UHC Advanced carbon

Brakes & Drivetrain

Front Brake

Shimano BR-R8170, 2-piston, Hydraulic disc brake

Front Brake Rotor

Shimano Ultegra MT800, Center Lock, 160/160 mm

Rear Brake

Shimano BR-R8170, 2-piston, Hydraulic disc brake

Rear Brake Rotor

Shimano Ultegra MT800, Center Lock, 160/160 mm

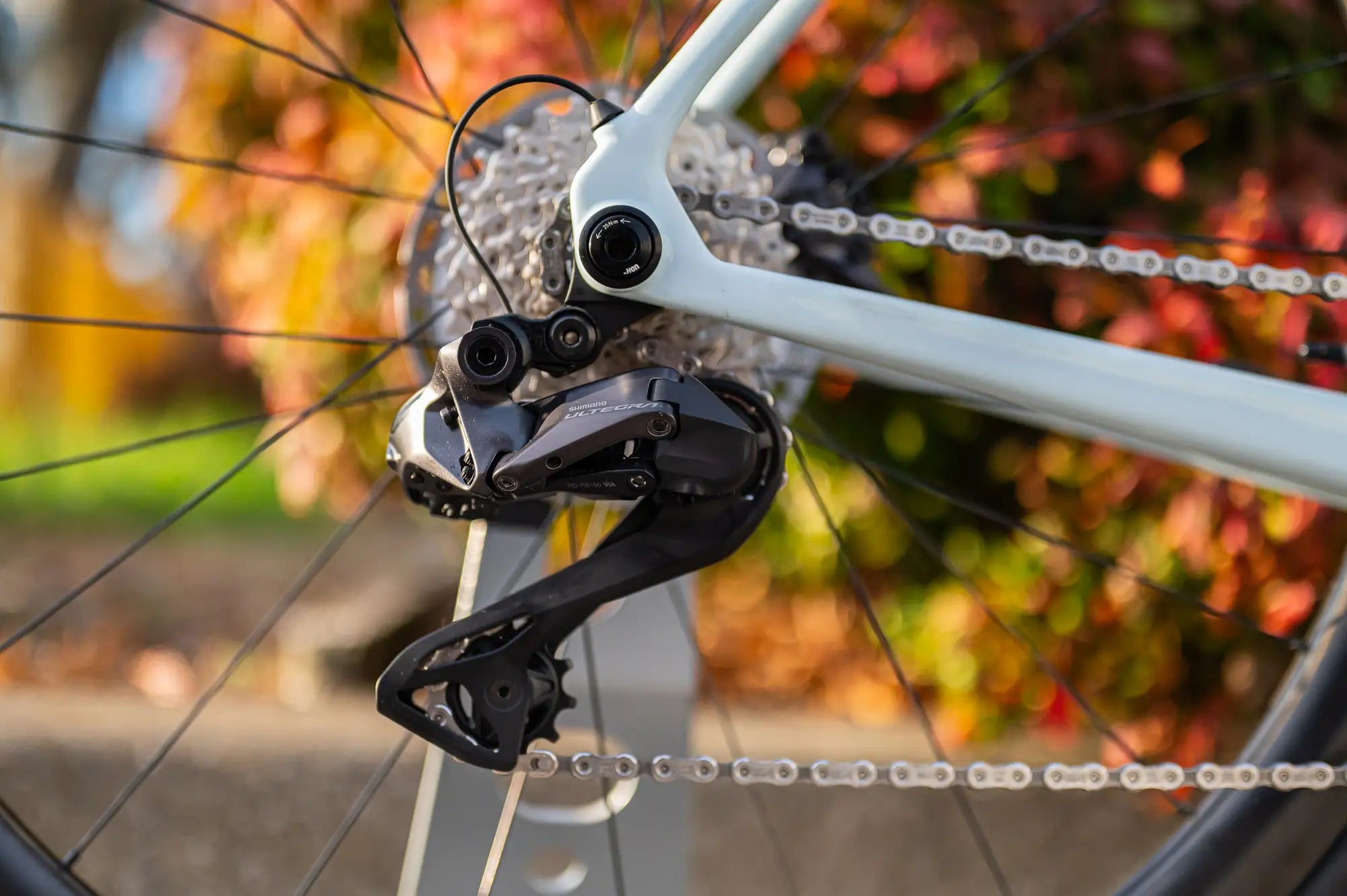

Rear Derailleur

Shimano Ultegra Di2 R8150, 2x12-speed

Cassette

Shimano CS-R8100, 11-30 T

Chain

Shimano CN-M8100

Crankset

Shimano Ultegra R8100, 52/36 T

Shift Lever

Shimano Ultrega Di2, ST-R8170

Wheels

Wheelset

Reynolds AR41 DB Custom, Shimano

Tyre

Vittoria Rubino Pro IV, 700x28c

Cockpit

Stem

Carbon Integrated Road Handlebar/Stem

Headset

IS (NO.42)

Handlebar

Carbon Integrated Road Handlebar/Stem

Saddle

Prologo Dimension 143 T4.0

Seat Post

Devox Post.C2

Additional Information

Permissible Total Weight

129 kg

Trailer Approval

No trailer approval

GEOMETRY

FR chart
45 48 51 54 56 58 61
(A) Top Tube Length 494.8 mm 512 mm 526.2 mm 546.6 mm 558.1 mm 581.4 mm 600.3 mm
(B) Seat Tube Length 405 mm 426 mm 467 mm 507 mm 527 mm 558 mm 594.6 mm
(C) Seat Tube Angle 75.3° 74.5° 74° 73.5° 73.5° 73.3° 73°
(D) Head Tube Length 90 mm 100 mm 115 mm 135 mm 155 mm 177 mm 205 mm
(E) Steering Angle 70.5° 71.5° 72.4° 72.6° 73.2° 73.8° 73.8°
(F) Chain Stay Length 406 mm 406 mm 406 mm 408 mm 408 mm 410 mm 410 mm
(G) Wheel Base 967.4 mm 969.4 mm 971.4 mm 982.1 mm 988.2 mm 1005.3 mm 1020.4 mm
(H) Standover Height 704 mm 720.6 mm 750 mm 782 mm 802 mm 827.9 mm 860.8 mm
(I) BB-Drop 74 mm 74 mm 74 mm 72 mm 72 mm 72 mm 72 mm
(J) BB Height 266.3 mm 266.3 mm 266.3 mm 268.3 mm 268.3 mm 268.3 mm 268.3 mm
(K) Fork Offset 51 mm 51 mm 51 mm 45 mm 45 mm 45 mm 45 mm
(L) Stack 496.2 mm 509.2 mm 526.6 mm 546.2 mm 567.3 mm 590.5 mm 617.4 mm
(M) Reach 364.6 mm 370.8 mm 375.2 mm 384.8 mm 390 mm 404.2 mm 411.5 mm
(N) Stem Length 100 mm 100 mm 100 mm 100 mm 100 mm 110 mm 120 mm
(O) Crank Length 167.5 mm 167.5 mm 170 mm 172.5 mm 172.5 mm 175 mm 175 mm

SIZE GUIDE

43 45 47 48 51 54 56 58 61
Rider Height 144.7 - 152.4 cm 144.7 - 152.4 cm 152.4 - 167.6 cm 152.4 - 167.6 cm 167.6 - 172.7 cm 172.7 - 177.8 cm 177.8 - 182.8 cm 182.8 - 187.9 cm 187.9 - 195.5 cm
Rider Inseam 67.3 - 71.2 cm 67.3 - 71.2 cm 71.2 - 74.9 cm 71.2 - 74.9 cm 75.1 - 76.2 cm 77.9 - 82.0 cm 81.0 - 85.0 cm 84.0 - 87.1 cm 87.3 - 91.1 cm
