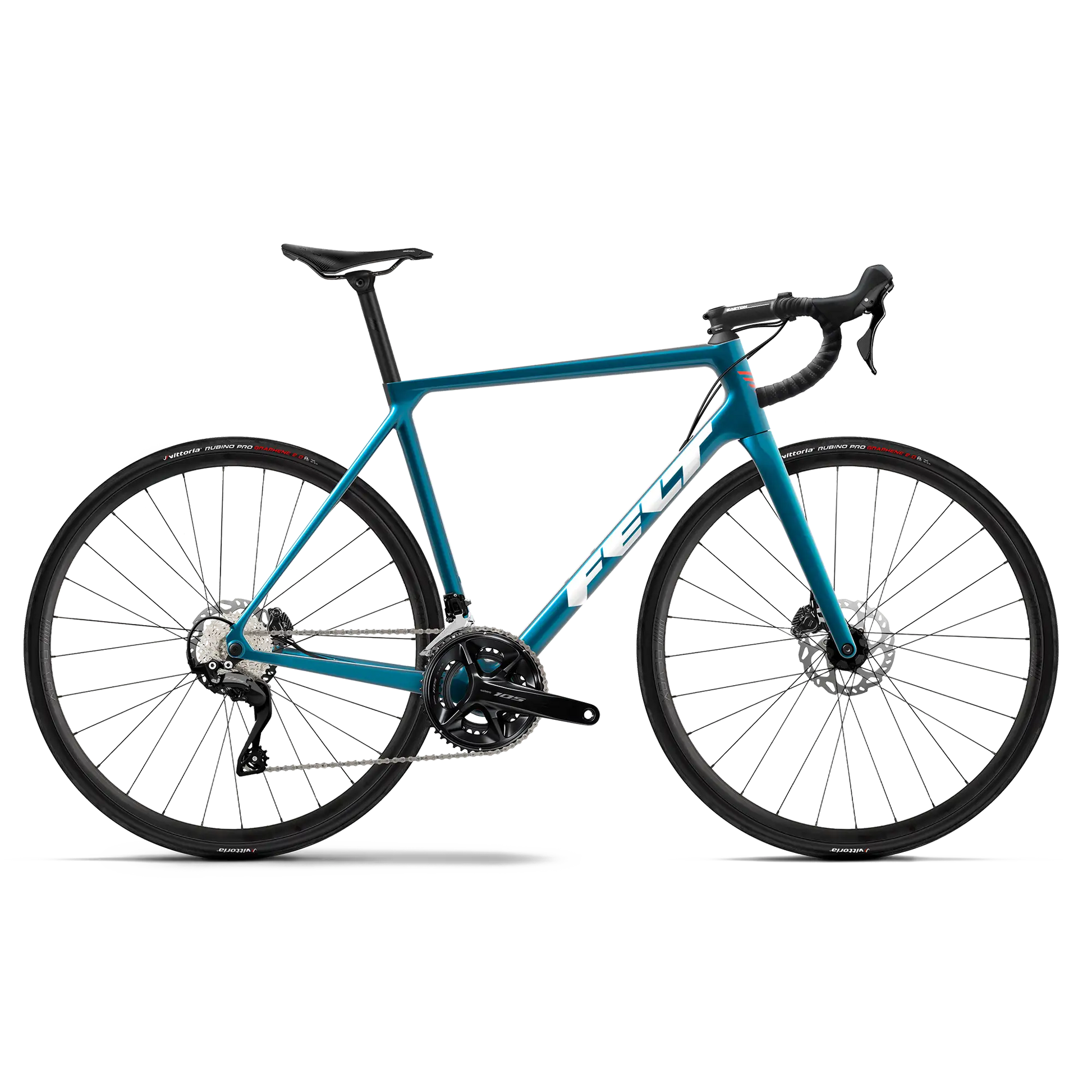

FR Advanced | 105 (Matte Bay Blue)

FR Advanced | 105 (Matte Bay Blue)

FB94024001-45

$4,799
$4,799
Sale Sold out
Included: GST, and shipping to Click & Collect locations.

The new FR Advanced frameset kitted out with Shimano's tried-and-true 105 mechanical groupset bringing tremendous value to a race-worthy rig.

Select size

Select your nearest Click & Collect store

$4,799
$4,799
Sale Sold out
Included: GST, and shipping to Click & Collect locations.

Complimentary Professional Build

Every Felt bike will be fully assembled and safety-checked by a qualified mechanic before you collect it.

Covered by Felt’s Warranty

Join thousands of riders who trust Felt. If there’s a defect in materials or workmanship, we’ll make it right.
See warranty details →

View full details

Join the team

The latest version of our all-around FR Advanced platform now comes equipped with Shimano's new 12-speed 105 mechanical component group. This is a great bike to start your love affair with road cycling and is primed for future upgrades. But, fear not, it's still a performance-oriented rig that's still packed with great features, including Shimano drivetrain and brakes.

  • Adjustable set-up

    Using a standard bar-stem combo means that you'll be able to easily adjut your bike fit as you start riding and gain greater fitness. You'll have clean cable management with routing under the stem to lend a modern, profiled silhouette.

  • Wide range gearing

    The compact crank and 11x34 cassette range of the Shimano 105 gearing offers easy and harder gearing for a wide variety of terrain and efforts. Go all-in for top end workouts and group rides but keep that granny gear for when you need to spin.

  • Wheels & Tyres

    Our own Devox wheels paired to Vittoria tyres offers a great performance level and the sure performance for all of your riding, ensuring great grip and extra comfort and control with 28mm wide tyres.

1 3

SPECIFICATIONS

Frameset

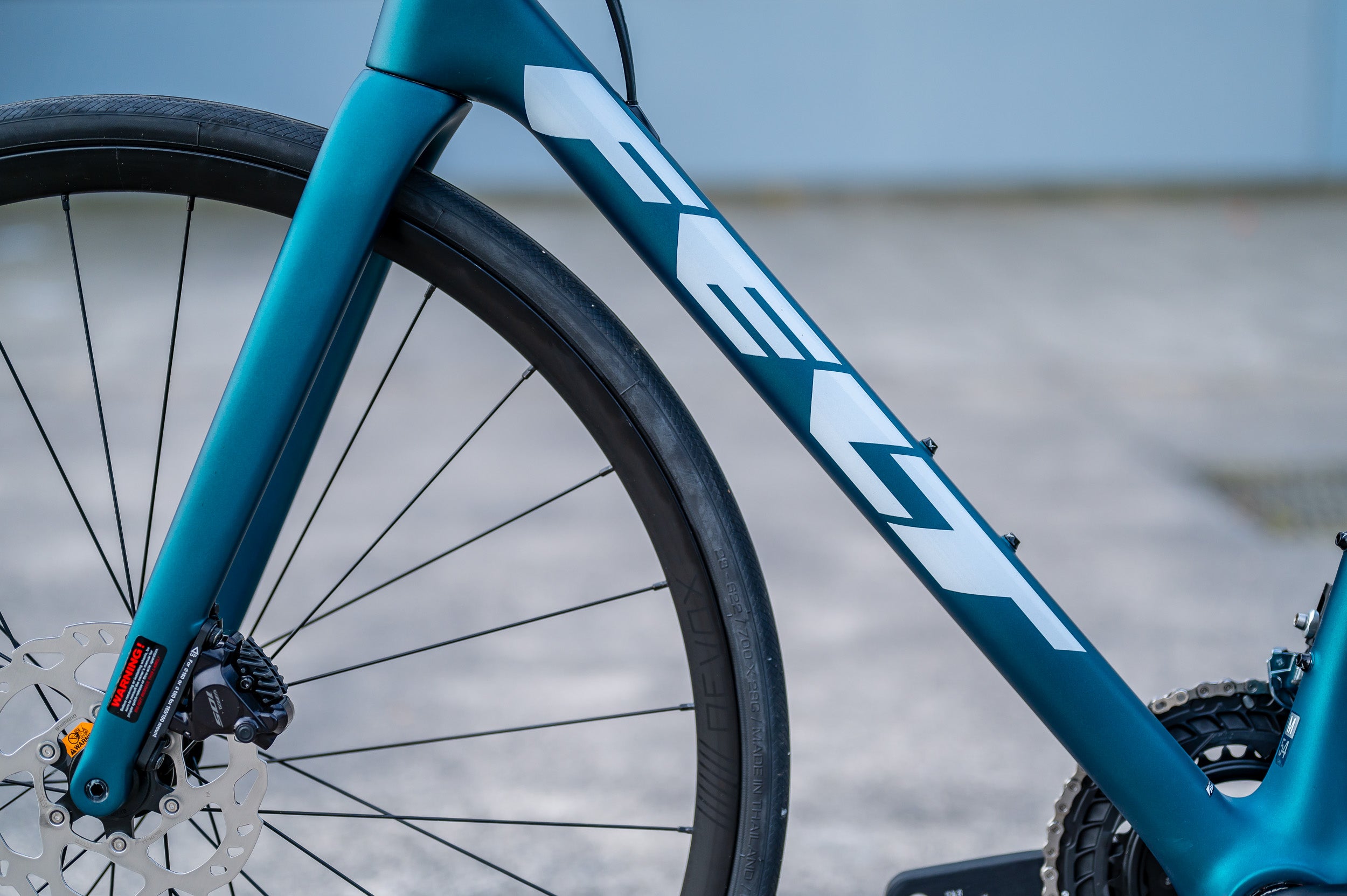

Frame

Felt FR 4.0, UHC Advanced carbon

Fork

Felt FR 4.0, UHC Advanced carbon

Brakes & Drivetrain

Front Brake

Shimano BR-R7120, 2-piston, Hydraulic disc brake

Front Brake Rotor

Shimano SM-RT70, 160 mm, Center lock

Rear Brake

Shimano BR-R7170, 2-piston, Hydraulic disc brake

Rear Brake Rotor

Shimano SM-RT70, 160 mm, Center lock

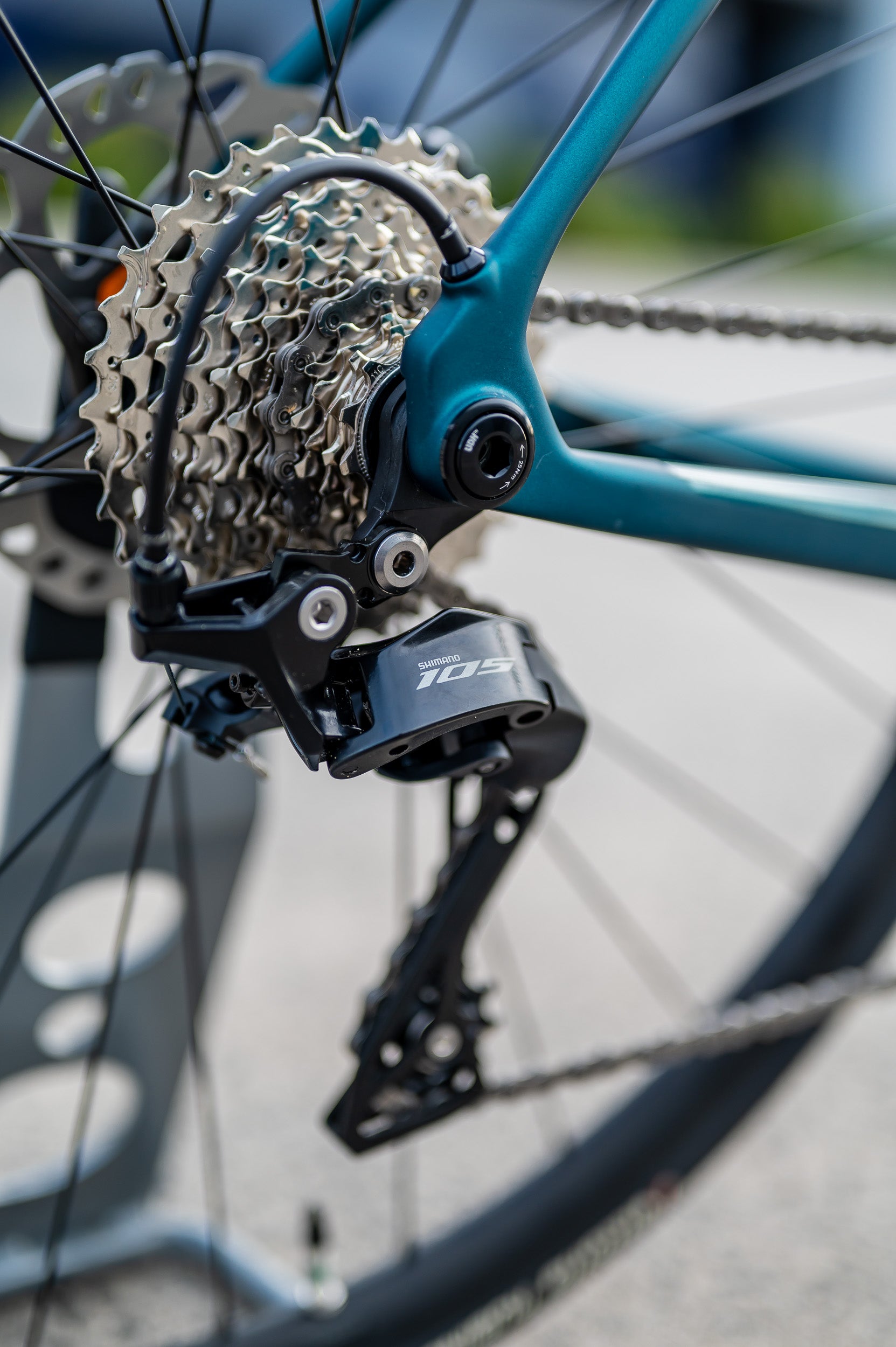

Rear Derailleur

Shimano 105, RD-R7100, Shadow, 24-S

Front Derailleur

Shimano 105, FD-R7100

Cassette

Shimano 105 CS-R7101, 11-34 T

Chain

Shimano CN-HG7100

Crankset

Shimano 105, FC-R7100, 50/34 T

Shift Lever

Shimano 105, ST-R7120

Wheels

Wheelset

Devox WheelRDS.A1, Tubeless ready, Center lock, 12x100/12x142 mm

Front Wheel

Rim: Alex Aluminum 24/19/23mm / Hub: Shimano HBRS470CL

Rear Wheel

Rim: Alex Aluminum 24/19/23mm / Hub: Shimano FHRS470CL

Tyre

Vittoria Rubino Pro IV, 700x28

Cockpit

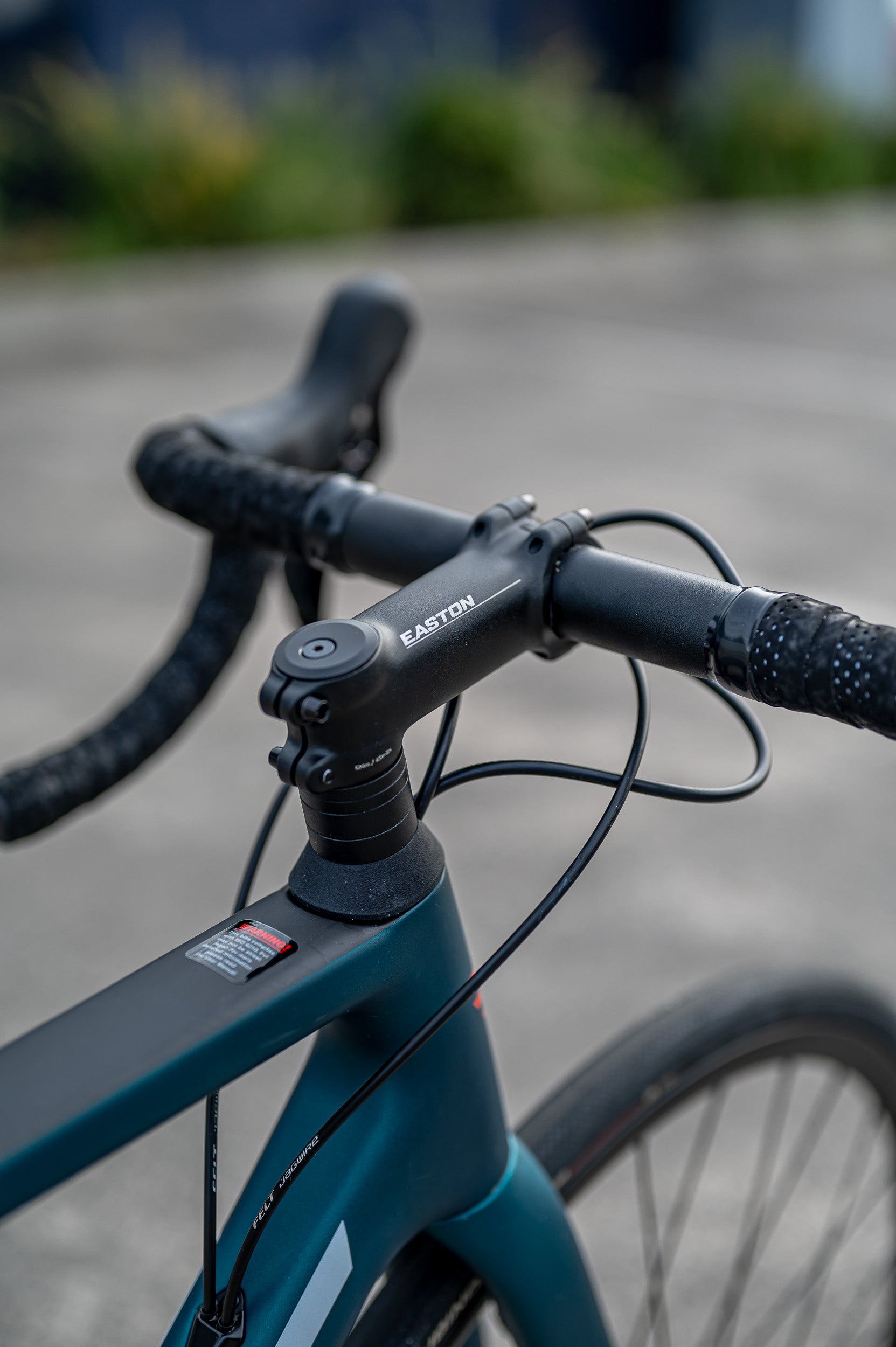

Stem

Easton AL

Headset

IS (NO.42)

Handlebar

Devox DBar.A1

Bar Tape

Felt VelvetGel tape with 3M reflective base

Saddle

Prologo Dimension 143 STN

Seat Post

Devox Post.C2

Additional Information

Permissible Total Weight

129 kg

Trailer Approval

No trailer approval

GEOMETRY

FR chart
45 48 51 54 56 58 61
(A) Top Tube Length 494.8 mm 512 mm 526.2 mm 546.6 mm 558.1 mm 581.4 mm 600.3 mm
(B) Seat Tube Length 405 mm 426 mm 467 mm 507 mm 527 mm 558 mm 594.6 mm
(C) Seat Tube Angle 75.3° 74.5° 74° 73.5° 73.5° 73.3° 73°
(D) Head Tube Length 90 mm 100 mm 115 mm 135 mm 155 mm 177 mm 205 mm
(E) Steering Angle 70.5° 71.5° 72.4° 72.6° 73.2° 73.8° 73.8°
(F) Chain Stay Length 406 mm 406 mm 406 mm 408 mm 408 mm 410 mm 410 mm
(G) Wheel Base 967.4 mm 969.4 mm 971.4 mm 982.1 mm 988.2 mm 1005.3 mm 1020.4 mm
(H) Standover Height 704 mm 720.6 mm 750 mm 782 mm 802 mm 827.9 mm 860.8 mm
(I) BB-Drop 74 mm 74 mm 74 mm 72 mm 72 mm 72 mm 72 mm
(J) BB Height 266.3 mm 266.3 mm 266.3 mm 268.3 mm 268.3 mm 268.3 mm 268.3 mm
(K) Fork Offset 51 mm 51 mm 51 mm 45 mm 45 mm 45 mm 45 mm
(L) Stack 496.2 mm 509.2 mm 526.6 mm 546.2 mm 567.3 mm 590.5 mm 617.4 mm
(M) Reach 364.6 mm 370.8 mm 375.2 mm 384.8 mm 390 mm 404.2 mm 411.5 mm
(N) Stem Length 100 mm 100 mm 100 mm 100 mm 100 mm 110 mm 120 mm
(O) Crank Length 167.5 mm 167.5 mm 170 mm 172.5 mm 172.5 mm 175 mm 175 mm

SIZE GUIDE

43 45 47 48 51 54 56 58 61
Rider Height 144.7 - 152.4 cm 144.7 - 152.4 cm 152.4 - 167.6 cm 152.4 - 167.6 cm 167.6 - 172.7 cm 172.7 - 177.8 cm 177.8 - 182.8 cm 182.8 - 187.9 cm 187.9 - 195.5 cm
Rider Inseam 67.3 - 71.2 cm 67.3 - 71.2 cm 71.2 - 74.9 cm 71.2 - 74.9 cm 75.1 - 76.2 cm 77.9 - 82.0 cm 81.0 - 85.0 cm 84.0 - 87.1 cm 87.3 - 91.1 cm
