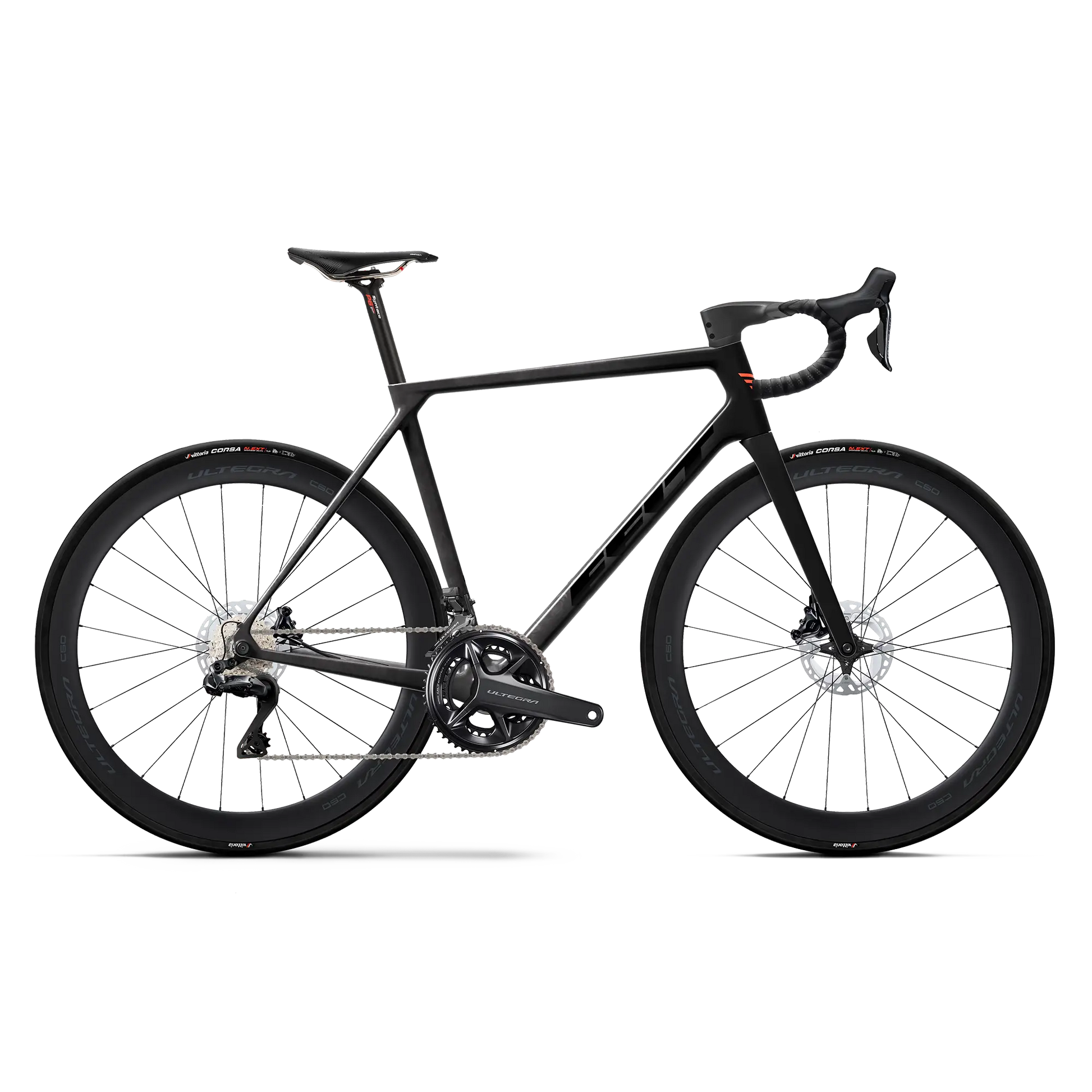

FR Advanced+ | Ultegra Di2 (Matte Carbon Vapor)

FR Advanced+ | Ultegra Di2 (Matte Carbon Vapor)

FB94124005-51

$13,495
$13,495
Sale Sold out
Included: GST, and shipping to Click & Collect locations.

The reimagined FR Advanced with Shimano's 12-speed Ultegra semi-wireless electronic groupset + a Vision integrated front-end.

Select size

Select your nearest Click & Collect store

$13,495
$13,495
Sale Sold out
Included: GST, and shipping to Click & Collect locations.

Complimentary Professional Build

Every Felt bike will be fully assembled and safety-checked by a qualified mechanic before you collect it.

Covered by Felt’s Warranty

Join thousands of riders who trust Felt. If there’s a defect in materials or workmanship, we’ll make it right.
See warranty details →

View full details

A new classic

The new FR Advanced + build features Shimano's Ultegra Di2 semi-wireless groupset with 12-speeds of optimized shifting performance. The complete package is ready for your hard training rides, zone 2 endurance sessions, and full-gas KOM efforts. Optimized to be an agile road bike, the FR Advanced + comes with an integrated Vision front-end for the best aesthetics and aero function.

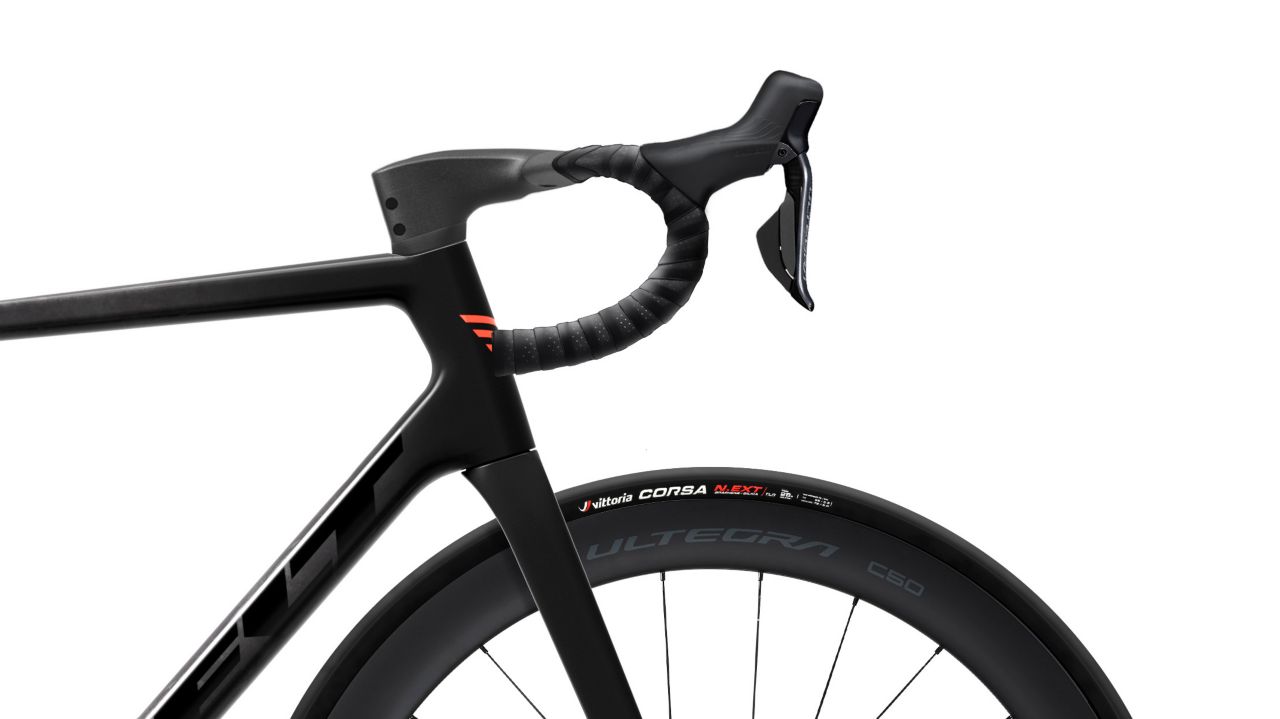

  • Party in the front

    The + designation to the FR Advanced line-up denotes the Vision Metron integrated front-end. Race-proven aerodynamics, comfortable ergonomics, and a clean aesthetic dial in the look.

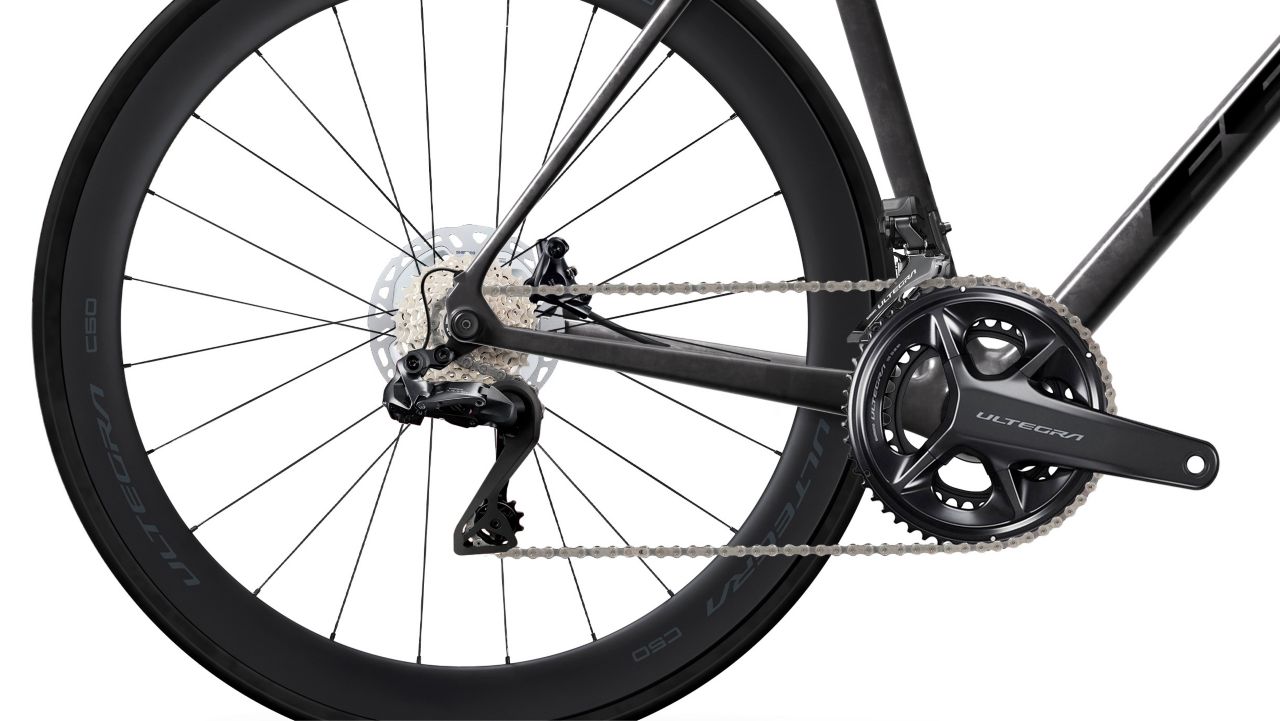

  • Geared to go

    Shimano's Ultegra Di2 12-speed groupset provides optimal braking function and riding ergonomics along with a dialed gearing set-up with a mid-compact 52x36 crank paired to an 11x30t cassette. You're geared to go.

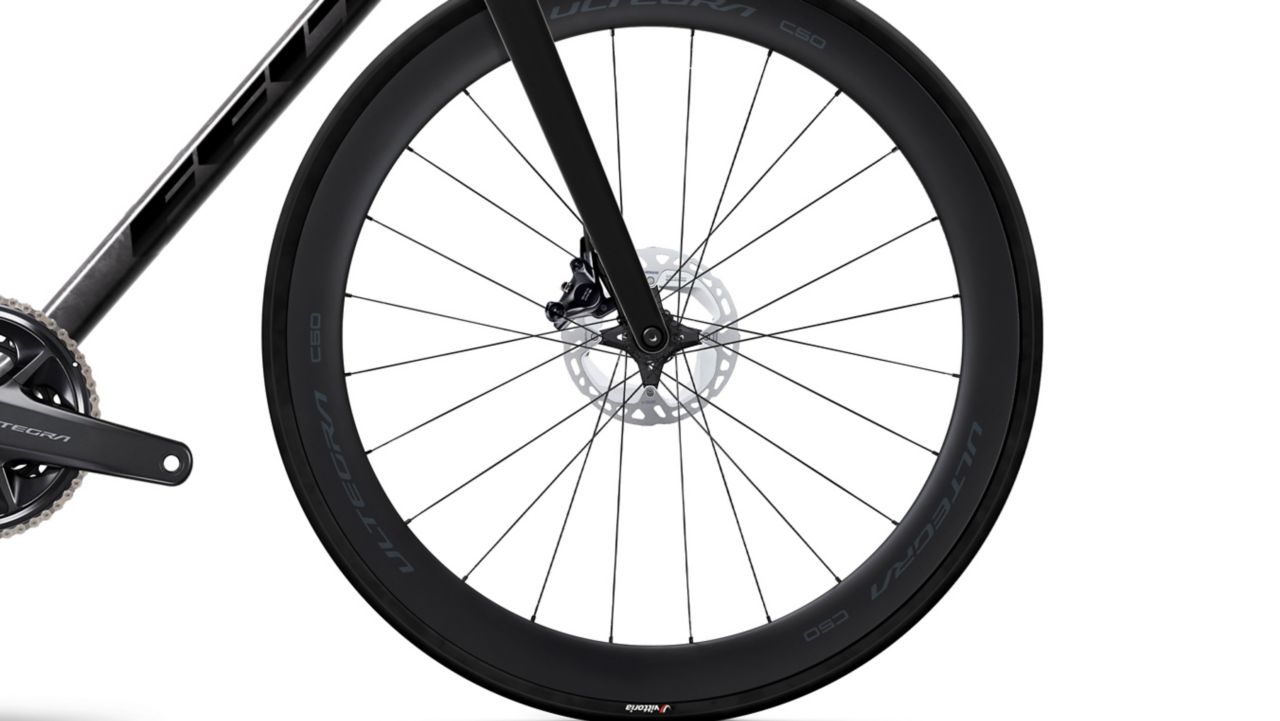

  • Wheel speed

    Shimano R8170 C50 tubeless wheels offer a lightweight, aero riding experience that firmly positions this bike at the higher range of performance.

1 3

SPECIFICATIONS

Frameset

Frame

Felt FR 4.0, UHC Advanced carbon

Fork

Felt FR 4.0, UHC Advanced carbon

Brakes & Drivetrain

Front Brake

Shimano BR-R8170, 2-piston, Hydraulic disc brake

Front Brake Rotor

Shimano RT-MT800, 160 mm, Center lock

Rear Brake

Shimano BR-R8170, 2-piston, Hydraulic disc brake

Rear Brake Rotor

Shimano RT-MT800, 160 mm, Center lock

Rear Derailleur

Shimano Ultegra Di2, RD-R8150, Shadow, 24-S

Front Derailleur

Shimano Ultegra Di2, FD-R8150, Brazed-On

Cassette

Shimano CS-R8100, 11-30 T

Chain

Shimano CN-HG901

Crankset

Shimano Ultegra, FC-R8100, 52/36 T

Shift Lever

Shimano Ultegra Di2, ST-R8170

Wheels

Wheelset

Shimano Ultegra, WH-R8170, Tubeless ready, Center lock, 12x100/12x142 mm

Tyre

Vittoria Corsa N.EXT, 700x26

Cockpit

Stem

Vision Metron 5 ACR integrated bar/stem

Headset

IS (NO.42)

Handlebar

45, 48, 51, 54 cm: Vision Metron 5 ACR integrated bar/stem, 400 mm, Drop: 125 mm, 56, 58, 61 cm: Vision Metron 5 ACR integrated bar/stem, 420 mm, Drop: 125 mm

Bar Tape

Felt VelvetGel tape with 3M reflective base

Saddle

Prologo Dimension 143 TIROX

Seat Post

Syntace P6 Carbon HiFlex

Additional Information

Permissible Total Weight

129 kg

Trailer Approval

No trailer approval

GEOMETRY

FR chart
45 48 51 54 56 58 61
(A) Top Tube Length 494.8 mm 512 mm 526.2 mm 546.6 mm 558.1 mm 581.4 mm 600.3 mm
(B) Seat Tube Length 405 mm 426 mm 467 mm 507 mm 527 mm 558 mm 594.6 mm
(C) Seat Tube Angle 75.3° 74.5° 74° 73.5° 73.5° 73.3° 73°
(D) Head Tube Length 90 mm 100 mm 115 mm 135 mm 155 mm 177 mm 205 mm
(E) Steering Angle 70.5° 71.5° 72.4° 72.6° 73.2° 73.8° 73.8°
(F) Chain Stay Length 406 mm 406 mm 406 mm 408 mm 408 mm 410 mm 410 mm
(G) Wheel Base 967.4 mm 969.4 mm 971.4 mm 982.1 mm 988.2 mm 1005.3 mm 1020.4 mm
(H) Standover Height 704 mm 720.6 mm 750 mm 782 mm 802 mm 827.9 mm 860.8 mm
(I) BB-Drop 74 mm 74 mm 74 mm 72 mm 72 mm 72 mm 72 mm
(J) BB Height 266.3 mm 266.3 mm 266.3 mm 268.3 mm 268.3 mm 268.3 mm 268.3 mm
(K) Fork Offset 51 mm 51 mm 51 mm 45 mm 45 mm 45 mm 45 mm
(L) Stack 496.2 mm 509.2 mm 526.6 mm 546.2 mm 567.3 mm 590.5 mm 617.4 mm
(M) Reach 364.6 mm 370.8 mm 375.2 mm 384.8 mm 390 mm 404.2 mm 411.5 mm
(N) Stem Length 100 mm 100 mm 100 mm 100 mm 100 mm 110 mm 120 mm
(O) Crank Length 167.5 mm 167.5 mm 170 mm 172.5 mm 172.5 mm 175 mm 175 mm

SIZE GUIDE

43 45 47 48 51 54 56 58 61
Rider Height 144.7 - 152.4 cm 144.7 - 152.4 cm 152.4 - 167.6 cm 152.4 - 167.6 cm 167.6 - 172.7 cm 172.7 - 177.8 cm 177.8 - 182.8 cm 182.8 - 187.9 cm 187.9 - 195.5 cm
Rider Inseam 67.3 - 71.2 cm 67.3 - 71.2 cm 71.2 - 74.9 cm 71.2 - 74.9 cm 75.1 - 76.2 cm 77.9 - 82.0 cm 81.0 - 85.0 cm 84.0 - 87.1 cm 87.3 - 91.1 cm
